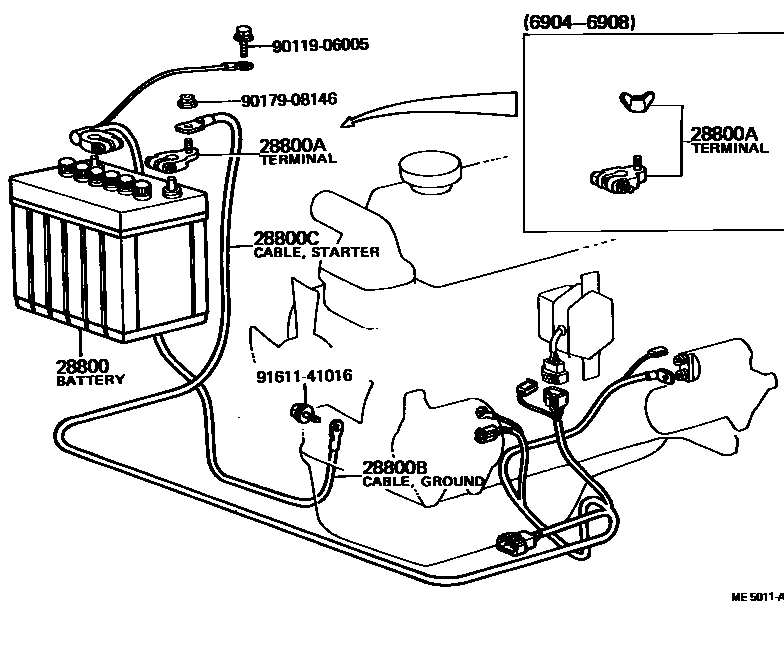

BATTERY & BATTERY CABLE

28800BATTERY

main28800-12010i2K..KP30,36196904-198201

NS40,NS40

sub28800-13060

main28800-13060i2K..KP36198201-198808

28B19R,28B19R(NS40S)

sub28800-24040

main28800-24030i2K..KP30,36197701-198201

34B19R,NS40ZA

sub28800-24040

main28800-33071i2K,3KH..KP3#196904-198808

32C24R,32C24R(N40)

sub28800-33101

main28800-33110i2K..KP3#196904-197112

55D26R(N50Z)

sub28800-33111

main28800-33111i2K..KP30,36197201-198808

55D26R,N50Z

sub28800-33120

28800ATERMINAL, BATTERY POSITIVE

main90982-05004i2K..KP3#196908-197707

NS40,NS40ZA

sub90982-05028

main90982-05004i2K,3KH..KP3#197707-198610

NS40,NS40ZA,NS40S

sub90982-05028

main90982-05005i2K,3KH..KP3#196908-198610

N40,N50Z

sub90982-05030

main90982-05028i2K..KP36198610-198808

NS40,NS40ZA,NS40S

sub90982-05057

main90982-05030i2K..KP36198610-198808

N40,N50Z

main99142-85127i2K..KP3#196904-196908

N40,N50Z

main99142-87175i2K..KP3#196904-196908

NS40

sub82675-30020

28800BCABLE, BATTERY TO GROUND

main90982-02043i2K..KP3#196904-197707

NS40,NS40ZA

main90982-02043i2K,3KH..KP3#197707-198808

NS40,NS40ZA,NS40S

main90982-02050i2K,3KH..KP3#196904-198808

N40,N50Z

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82250-10030i2K..KP3#196904-197404

main82250-10031i2K..KP3#197404-197511

main82250-10032i2K,3KH..KP3#..RHD197511-198808

main82250-10042i2K..KP30197405-197511

W/*RWD

main82250-10043i2K..KP30,36..(SED,V)..RHD197511-197809

W/*RWD

main82250-10100i2K..KP30,36..LHD197511-198808

main82250-10110i2K..KP30,36..(SED,V)..LHD197511-197809

W/*RWD OR HAZARD WARNING

9011906005

main90119-06005

9017908146

main90179-08146

9161141016

main91611-41016

7 parts on this diagram · 1 diagram in section
