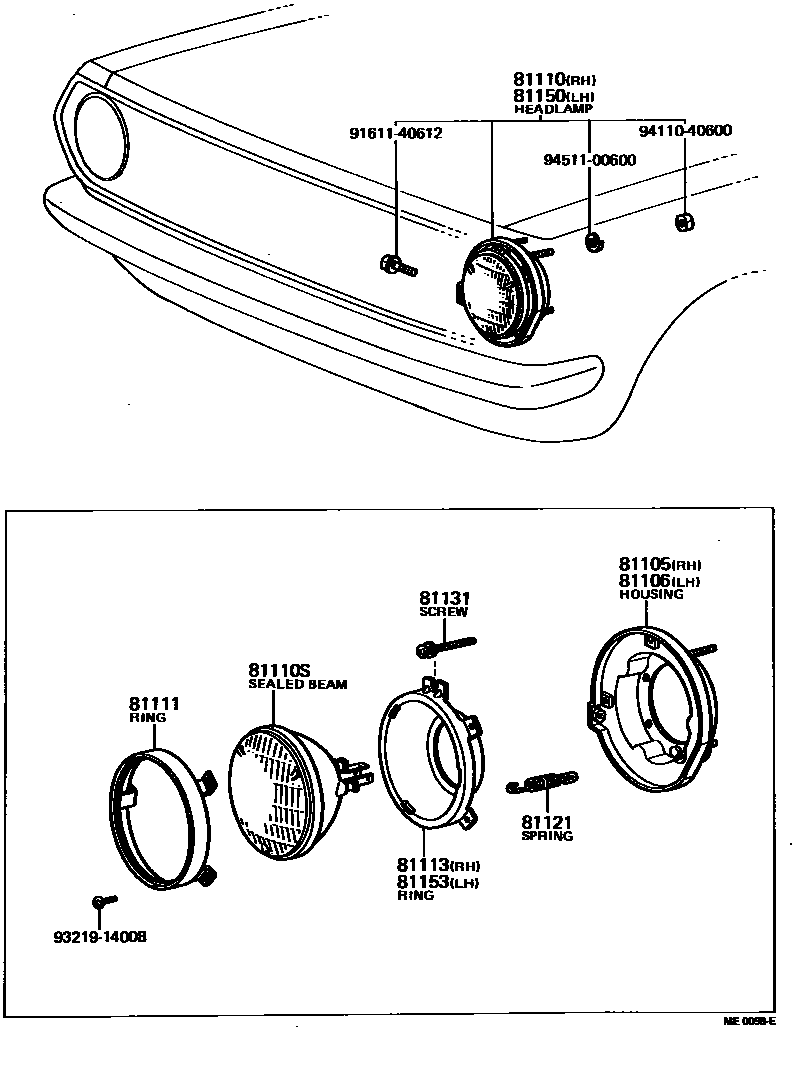

HEADLAMP

0001 1 0002 1

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-10050iKP3#196904-197010

KOITO

sub81105-10060

main81105-10051iKP3#197010-197112

KOITO

main81105-10060iKP3#196904-197010

TOSHIBA

main81105-10061iKP3#197010-197112

TOSHIBA

main81105-10062iKP30,36197201-198808

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81105-10062iKP30,36197201-198808

main81106-10010iKP3#196904-197010

KOITO

sub81106-10020

main81106-10011iKP3#197010-197112

KOITO

main81106-10020iKP3#196904-197010

TOSHIBA

main81106-10021iKP3#197010-197112

TOSHIBA

81110HEADLAMP ASSY, RH

main81110-10064iKP36..RHD198608-198808

IKI

main81110-10084iKP36..LHD198608-198808

IKI

main81110-10104iKP36..LHD198608-198808

SEMI-SEALED,WHITE

main81110-10220iKP30..RHD197707-197802

SEMI-SEALED,WHITE

main81110-19015iKP3#..RHD196904-197010

sub81110-19016

main81110-19016iKP3#..RHD197010-197112

main81110-19025iKP3#..LHD196904-197010

sub81110-19026

main81110-19026iKP3#..LHD197010-197112

main81110-19036iKP3#197010-197112

W/O SEALED BEAM UNIT

main81110-19105iKP3#..RHD197201-197602

sub81110-19106

main81110-19106iKP3#..RHD197602-197903

TOSHIBA

main81110-19106iKP36..LHD198308-198808

BAHAMA SPEC

main81110-19107iKP3#..RHD197903-198608

IKI

sub81110-10064

main81110-19115iKP3#..LHD197201-197602

sub81110-19116

main81110-19116iKP30,36..LHD197602-197903

TOSHIBA

sub81110-10083

main81110-19117iKP36..LHD197903-198608

IKI

main81110-19135iKP3#..LHD197201-197205

SEMI-SEALED,WHITE

sub81110-19136

main81110-19136iKP30,36..LHD197205-198608

SEMI-SEALED,WHITE

sub81110-10104

main81110-19145iKP3#..LHD197201-197205

SEMI-SEALED,YELLOW

sub81110-19146

main81110-19146iKP30,36..LHD197205-198808

SEMI-SEALED,YELLOW

81110SSEALED BEAM UNIT, NO.1

main90981-01010iKP3#..RHD196904-196908

12V 50/40W,KOITO

sub90981-01015

main90981-01012iKP3#..RHD197112-197703

12V 50/40W

sub90981-01024

main90981-01012iKP3#..RHD196904-197112

12V 50/40W,TOSHIBA

sub90981-01024

main90981-01013iKP3#..LHD197201-197703

12V 50/40W

sub90981-01025

main90981-01013iKP3#..LHD196904-197112

12V 50/40W,TOSHIBA

sub90981-01025

main90981-01015iKP3#..RHD196908-197112

12V 50/40W,12V 50/40W,KOITO

main90981-01016iKP3#..LHD196904-197112

12V 50/40W,KOITO

sub90981-01046

main90981-01017iKP30,36..LHD197201-198808

12V 45/40W,*WSB,12V 45/40W,SEMI-SEALED,WHITE

main90981-01018iKP30,36..LHD197201-198808

12V 45/40W,*YSB,12V 45/40W,SEMI-SEALED,YELLOW

sub90981-01H00

main90981-01024iKP3#..RHD197703-197903

12V 50/40W,TOSHIBA

sub90981-01015

main90981-01025iKP30,36..LHD197703-197903

12V 50/40W,TOSHIBA

sub90981-01031

main90981-01028iKP30..RHD197707-197802

12V 45/40W,*WSB,12V 45/40W,SEMI-SEALED,WHITE

main90981-01030iKP3#..RHD197903-198808

12V 50/40W,*WB,12V 50/40W,IKI

sub90981-01015

main90981-01030iKP36..LHD198308-198808

12V 50/40W,*WB,12V 50/40W,BAHAMA SPEC

sub90981-01015

main90981-01031iKP36..LHD197903-198808

12V 50/40W,*WB,12V 50/40W,IKI

sub90981-01016

81111RING, SEALED BEAM RETAINING

main81111-10062iKP3#197201-198808

main81111-10104iKP30,36..LHD197201-198808

SEMI-SEALED

main81111-12011iKP3#196904-197112

KOITO

sub81111-10120

main81111-12020iKP3#196904-197103

TOSHIBA

sub81111-12021

main81111-12021iKP3#197103-197112

TOSHIBA

sub81111-12421

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-10050iKP3#196904-197112

KOITO

main81113-10060iKP3#196904-197103

TOSHIBA

sub81113-10061

main81113-10061iKP3#197103-197112

TOSHIBA

81121SPRING, HEADLAMP TENSION

main81121-10062iKP3#197201-198808

main81121-62010iKP3#196904-197112

KOITO

main90506-18018iKP3#196904-197112

TOSHIBA

81131SCREW, HEADLAMP ADJUSTING

main81131-10031iKP3#196904-197112

KOITO

main81131-20053iKP3#196904-198808

TOSHIBA

81150HEADLAMP ASSY, LH

main81110-10064iKP36..RHD198608-198808

IKI

main81110-10104iKP36..LHD198608-198808

SEMI-SEALED,WHITE

main81110-10220iKP30..RHD197707-197802

SEMI-SEALED,WHITE

main81110-19105iKP3#..RHD197201-197602

sub81110-19106

main81110-19106iKP36..LHD198308-198808

BAHAMA SPEC

main81110-19106iKP3#..RHD197602-197903

main81110-19107iKP3#..RHD197903-198608

IKI

sub81110-10064

main81110-19115iKP3#..LHD197201-197602

sub81110-19116

main81110-19116iKP30,36..LHD197602-197903

TOSHIBA

sub81110-10083

main81110-19117iKP36..LHD197903-198808

IKI

main81110-19135iKP3#..LHD197201-197205

SEMI-SEALED,WHITE

sub81110-19136

main81110-19136iKP30,36..LHD197205-198608

SEMI-SEALED,WHITE

sub81110-10104

main81110-19145iKP3#..LHD197201-197205

SEMI-SEALED,YELLOW

sub81110-19146

main81110-19146iKP30,36..LHD197205-198808

SEMI-SEALED,YELLOW

main81150-19015iKP3#..RHD196904-197010

sub81150-19016

main81150-19016iKP3#..RHD197010-197112

main81150-19025iKP3#..LHD196904-197010

sub81150-19026

main81150-19026iKP3#..LHD197010-197112

main81150-19036iKP3#197010-197112

W/O SEALED BEAM UNIT

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-10010iKP3#196904-197112

KOITO

main81153-10020iKP3#196904-197103

TOSHIBA

sub81153-10021

main81153-10021iKP3#197103-197112

TOSHIBA

9161140612

main91611-40612

9321914008

main93219-14008

9411040600

main94110-40600

9451100600

main94511-00600

14 parts on this diagram · 2 diagrams in section
