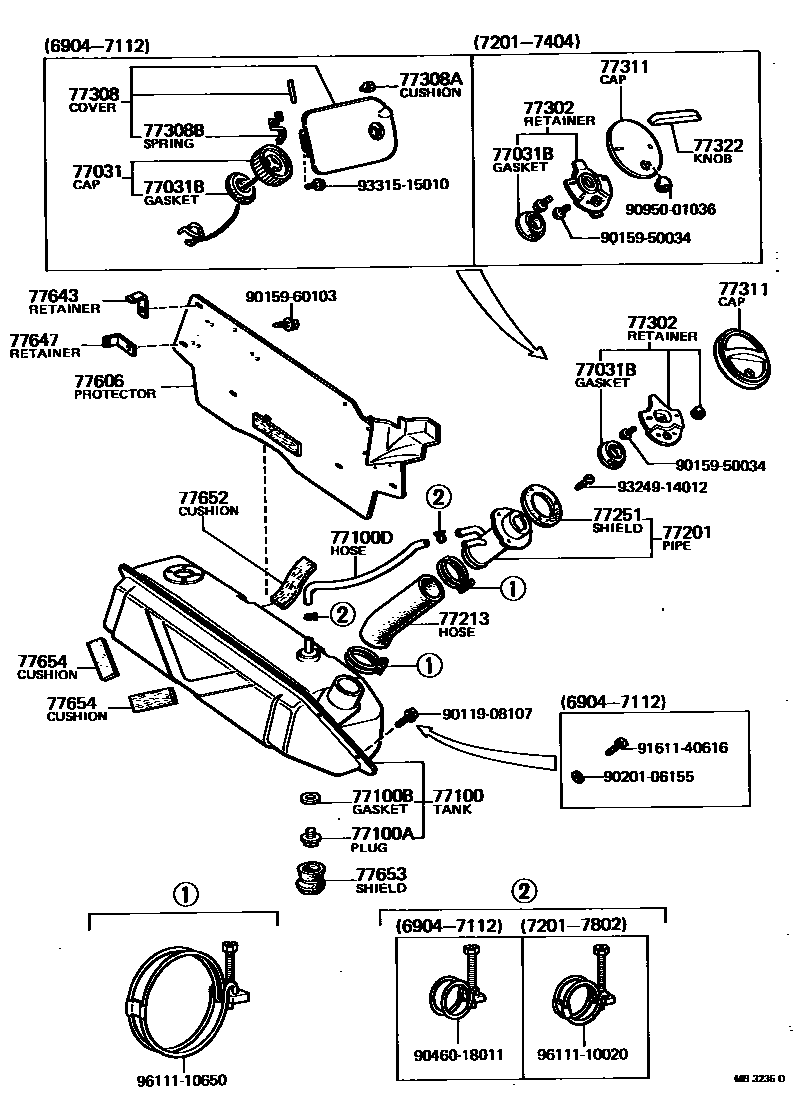

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

77031CAP ASSY, FUEL TANK

main77310-10030iKP3#197106-197205

sub77310-14010

main77310-12010iKP3#196904-196906

sub77310-12011

main77310-12011iKP3#196906-197106

sub77310-10030

main77310-12041iKP36,37197205-198808

77031BGASKET (FOR FUEL TANK CAP)

main77316-10010iKP36197106-197205

main77316-12010iKP3#196904-196906

sub77316-12012

main77316-12012iKP3#196906-197511

sub77316-10010

main77316-12040iKP36197205-198808

77100TANK ASSY, FUEL

main77001-10031iKP30196910-197304

sub77001-10080

sub77213-10013

main77001-10050iKP30197304-197601

sub77001-10070

sub77213-10013

main77001-10051iKP30197601-197603

sub77001-10052

sub77201-10051

sub77213-10013

sub90445-22006

sub96111-10240

main77001-10052iKP30197603-197802

main77001-19045iKP30196904-196910

sub77001-10080

sub77213-10013

sub90446-16232

main77100-11060iKP36..V196904-197205

main77100-11061iKP36..V197205-197304

main77100-11062iKP36..V197304-197809

main77100-11070iKP36..PIC196911-197205

main77100-96400iKP36..PIC197205-197304

main77100-96401iKP36,37..PIC197304-198808

77100APLUG(FOR FUEL TANK)

main90105-12018iKP3#196904-198808

77100BGASKET(FOR FUEL TANK)

main90430-12038iKP3#196904-197705

main90430-12245iKP3#197705-198808

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main90445-18869iKP30197201-197511

L=850

main90445-18878iKP36..V197205-197511

L=680

main90445-18903iKP36..PIC197205-197210

L=900

main90445-18970iKP36,37197511-198808

L=650

main90445-22006iKP30197511-197802

L=405

main90446-09001iKP36..V196904-197205

L=575

main90446-09132iKP36..PIC196911-197205

L=500

main90446-16160iKP30196904-196910

L=625

sub90446-16241

main90446-16232iKP30196910-197112

L=850

sub90445-18853

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-10031iKP30197201-197601

main77201-10051iKP30197601-197802

main77201-10901iKP30196904-197112

main77201-11071iKP36..V197205-197809

main77201-11901iKP36196904-196909

sub77201-11902

sub90446-09001

sub90446-18206

main77201-11902iKP36196909-197205

main77201-96400iKP36,37..PIC197210-198808

77213HOSE, FUEL TANK SUB INLET

main77213-10010iKP30196904-197112

main77213-10011iKP30197201-197209

sub77213-10012

main77213-10012iKP30197209-197601

main77213-10013iKP30197601-197802

main77213-11040iKP36..V196904-197209

sub77213-11041

main77213-11041iKP36..V197209-197809

main77213-11050iKP36..PIC196911-197206

sub77213-96400

main77213-96400iKP36,37..PIC197206-198808

77251SHIELD, FUEL TANK, INLET, NO.1

main77291-12010iKP3#196904-198808

77302RETAINER, FUEL TANK CAP

main77302-10010iKP30197201-197304

W/O FUEL LOCK

sub77302-10011

main77302-10010iKP30197306-197404

W/O FUEL LOCK,VALVE

sub77302-10011

main77302-10011iKP30197304-197306

W/O FUEL LOCK,W/VALVE

main77302-10020iKP30197201-197304

W/FUEL LOCK

sub77302-10021

main77302-10021iKP30197304-197404

W/FUEL LOCK

main77302-10022iKP30197404-197802

W/FUEL LOCK

main77302-10040iKP30197404-197511

W/O FUEL LOCK

sub77302-10022

77308COVER SUB-ASSY, FUEL INLET BOX

main77308-10010iKP30196904-197112

W/O FUEL LOCK

main77308-10020iKP30196904-197112

W/FUEL LOCK

main77308-11010iKP36..V196904-197511

W/O FUEL LOCK

main77308-11020iKP36..V196904-197809

W/FUEL LOCK

main77308-11030iKP36..PIC196911-197511

W/O FUEL LOCK

main77308-11040iKP36,37..PIC196911-198808

W/FUEL LOCK

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-05040iKP3#196904-198808

sub90541-05018

77308BSPRING, TORSION(FOR FUEL INLET BOX COVER)

main90508-16163iKP36,37196904-198808

77311CAP, FUEL TANK

main77311-10020iKP30197201-197404

main77311-10021iKP30197404-197802

77322KNOB, FUEL TANK CAP

main77322-10010iKP30197201-197404

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-10010iKP30196904-197112

main77606-10011iKP30197201-197802

77643RETAINER, FUEL TANK PROTECTOR

main77643-12011iKP30196904-197112

main77648-10010iKP30197201-197802

77647RETAINER, FUEL TANK PROTECTOR, SIDE

main77647-10010iKP30196904-197802

77652CUSHION, FUEL TANK, NO.1

main77651-13010iKP36..V196904-197809

main77652-10010iKP30196904-197802

77653SHIELD, FUEL TANK DRAIN PLUG

main77653-10010iKP30196904-197802

77654CUSHION, FUEL TANK, NO.2

main77654-10010iKP30196904-197802

9011908107

main90119-08107

9015950034

main90159-50034

9015960103

main90159-60103

9020106155

main90201-06155

9046018011

main90460-18011

9095001036

main90950-01036

9161140616

main91611-40616

9324914012

main93249-14012

9331515010

main93315-15010

9611110020

main96111-10020

9611110650

main96111-10650

32 parts on this diagram · 13 diagrams in section
