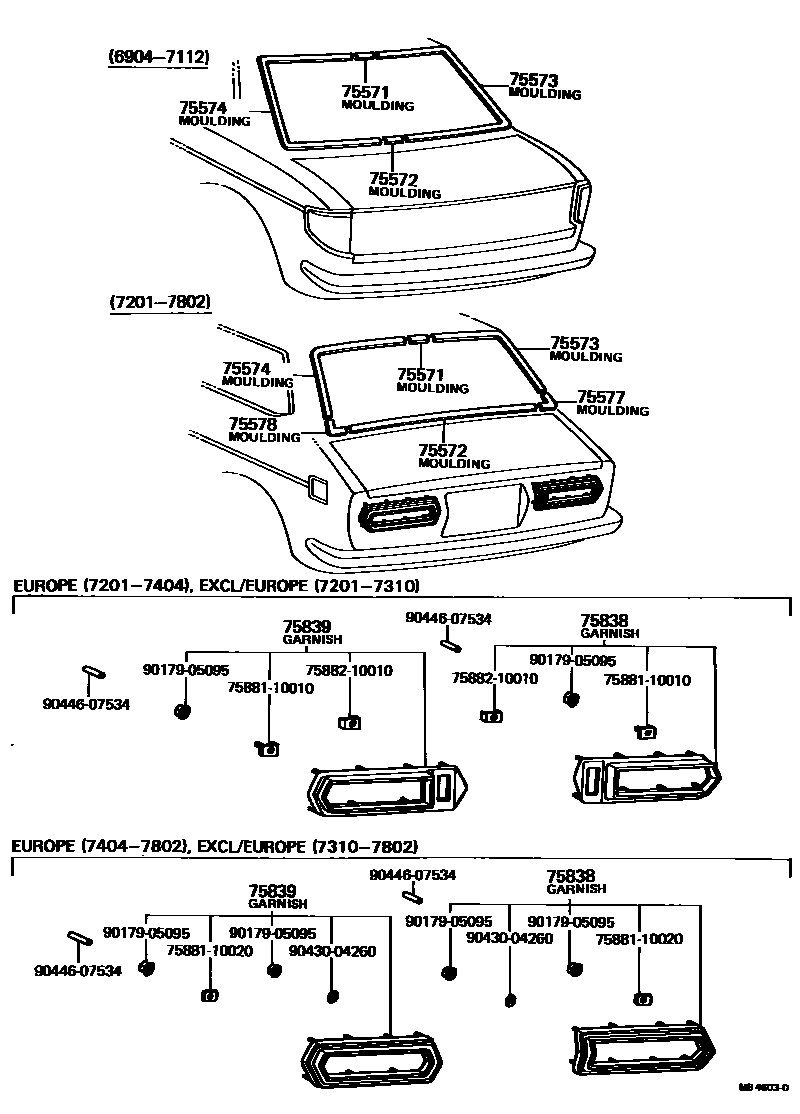

REAR MOULDING

0001 1 0002 1

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75536-10010iKP30,36..SED,V196904-197809

sub75581-10010

75572MOULDING, BACK WINDOW, LOWER

main75536-10010iKP3#..SED,V196904-197809

sub75581-10010

main75575-10010iKP30197201-197802

sub75532-96211

75573MOULDING, BACK WINDOW SIDE, RH

main75571-10020iKP30197201-197802

main75572-10020iKP30196904-197112

main75572-11020iKP36..V196904-197809

75574MOULDING, BACK WINDOW SIDE, LH

main75572-10030iKP30197201-197802

main75573-10020iKP30196904-197112

main75573-11020iKP36..V196904-197809

75577MOULDING, BACK WINDOW CORNER, LOWER RH

main75576-10010iKP30197201-197802

75578MOULDING, BACK WINDOW CORNER, LOWER LH

main75576-10010iKP30197201-197802

75838GARNISH, REAR COMBINATION LAMP, RH

main75083-19055iKP30197201-197310

main75083-19055iKP30..LHD197310-197404

EUROPE SPEC

main75838-19085iKP30197310-197802

75839GARNISH, REAR COMBINATION LAMP, LH

main75084-19055iKP30197201-197310

main75084-19055iKP30..LHD197310-197404

EUROPE SPEC

main75839-19085iKP30197310-197802

7588110010SPACER, REAR COMBINATION RIM, INSIDE RH

main75881-10010

7588110020SPACER, REAR COMBINATION RIM, INSIDE RH

main75881-10020

7588210010SPACER, REAR COMBINATION RIM, INSIDE LH

main75882-10010

9017905095

main90179-05095

9043004260

main90430-04260

9044607534

main90446-07534

14 parts on this diagram · 2 diagrams in section
