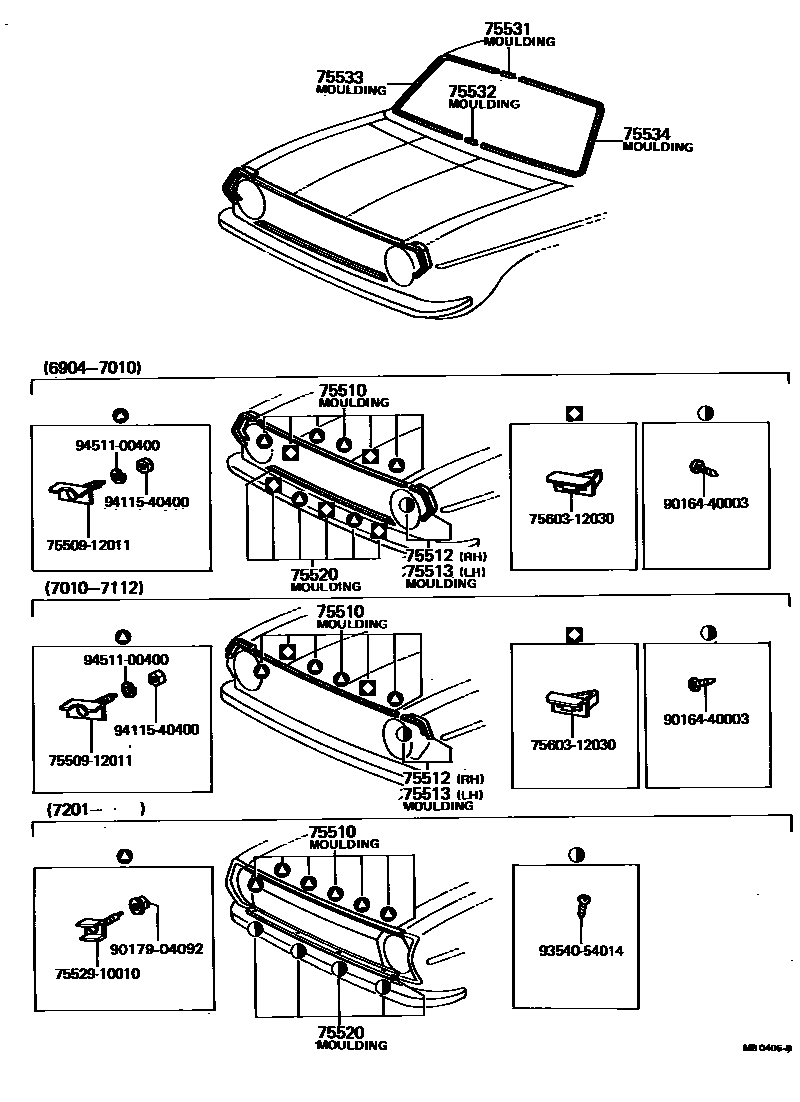

FRONT MOULDING
75510MOULDING ASSY, RADIATOR GRILLE OPENING, UPPER
75512MOULDING, RADIATOR GRILLE OPENING, RH
75513MOULDING, RADIATOR GRILLE OPENING, LH
75531MOULDING, WINDSHIELD, OUTER UPPER
sub75581-10010
75532MOULDING, WINDSHIELD, LOWER
sub75581-10010
75533MOULDING, WINDSHIELD, OUTSIDE RH
75534MOULDING, WINDSHIELD, OUTSIDE LH
7550912011PLATE SUB-ASSY, RADIATOR GRILL OPENING, LOWER
main75509-12011
7552910010
main75529-10010
7560312030MOULDING SUB-ASSY, QUARTER SLIDE WINDOW OUTSIDE
main75603-12030
9016440003
main90164-40003
9017904092
main90179-04092
9354054014
main93540-54014
9411540400
main94115-40400
9451100400
main94511-00400
16 parts on this diagram · 1 diagram in section
