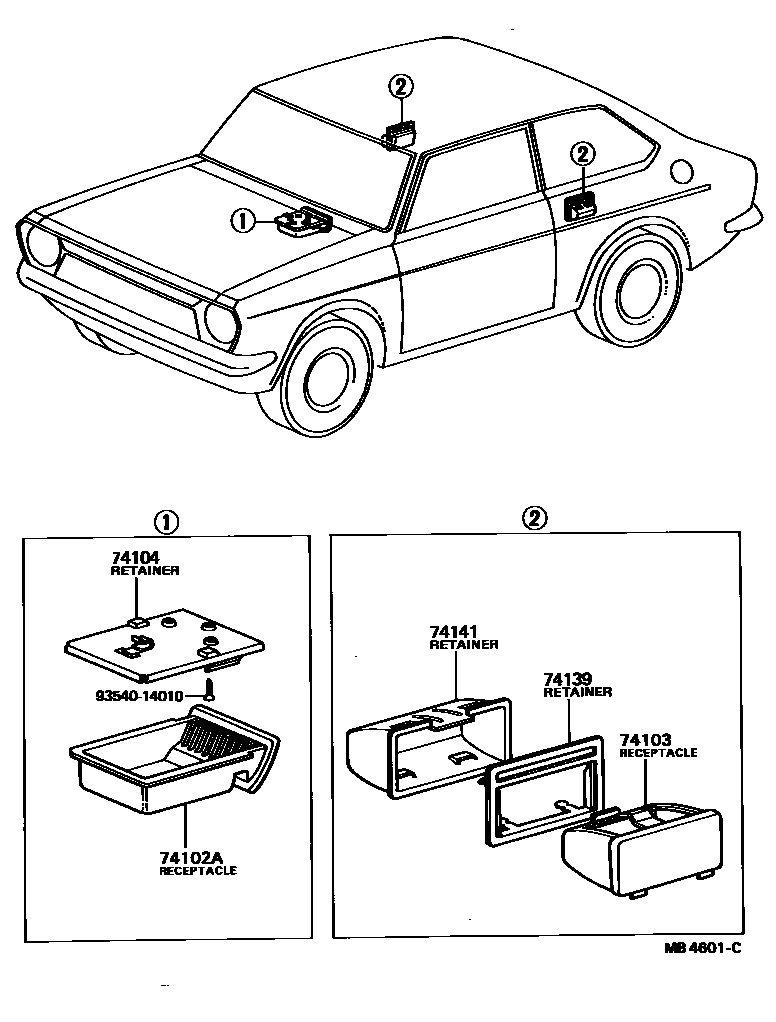

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74112-10030iKP3#196904-197010

main74112-10031iKP3#197010-198808

74103RECEPTACLE SUB-ASSY, ASH, NO.1

main74106-10040iKP30197010-197112

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-10020iKP3#196904-197010

main74104-10021iKP3#197010-198808

74139RETAINER, REAR ASH RECEPTACLE, OUTER

main74139-10011iKP30197010-197112

sub74135-10030

74141RETAINER, REAR ASH RECEPTACLE, INNER

main74141-10020iKP30197010-197112

sub74137-10030

9354014010

main93540-14010

6 parts on this diagram · 1 diagram in section
