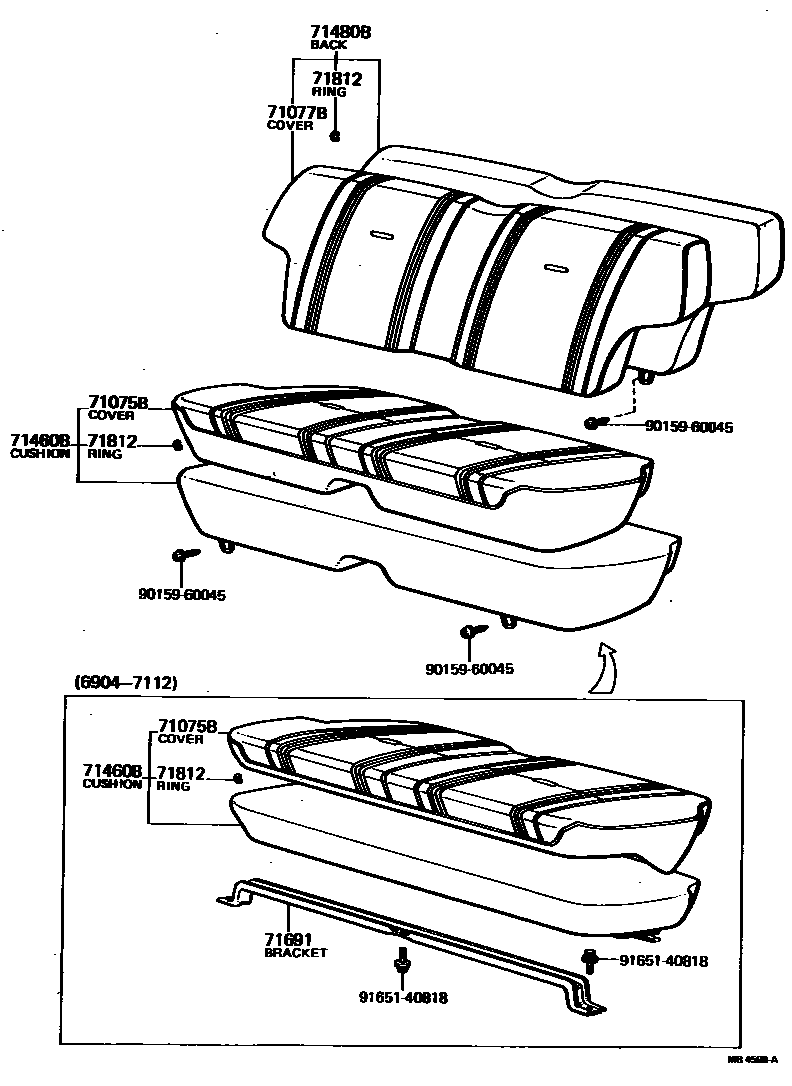

REAR SEAT & SEAT TRACK
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
VL,PLANT NO.K11,21,BLACK,BLACK,TRIM2#
VL,PLANT NO.K11,21,L-BROWN,BROWN,TRIM4#
PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2#
PF,PLANT NO.K11,21,L-BROWN,BROWN,TRIM4#
FB,PLANT NO.K11,21,BLACK,BLACK,TRIM2#
FB,PLANT NO.K11,21,L-BROWN,BROWN,TRIM4#
VL,PLANT NO.B11,BLACK,BLACK,TRIM2#
VL,PLANT NO.B11,L-BROWN,BROWN,TRIM4#
PF,PLANT NO.B11,BLACK,BLACK,TRIM2#
PF,PLANT NO.B11,L-BROWN,BROWN,TRIM4#
PF,EUR SPEC,PLANT NO.B11,BLACK,BLACK,TRIM2#
PF,EUR SPEC,NO.B11,L-BROWN,BROWN,TRIM4#
VL,PLANT NO.P11,BLACK,BLACK
VL,PLANT NO.P11,RED,RED/MAROON
PF,PLANT NO.P11,BLACK,BLACK
PF,PLANT NO.P11,RED,RED/MAROON
PF,PLANT NO.P11,GRAY & BLACK,GRAY
PF,PLANT NO.P11,GREEN & BLACK,GREEN
PF,PLANT NO.P11,RED & BLACK,RED/MAROON
VL,PLANT NO.K11,21,BLACK,BLACK,TRIM2#
VL,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4#
VL,PLANT NO.K11,21,BROWN,BROWN,TRIM4#
PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2#
PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4#
PF,PLANT NO.K11,21,BROWN,BROWN,TRIM4#
VL,PLANT NO.P11,BLACK,BLACK
VL,PLANT NO.P11,RED,RED/MAROON
VL,PLANT NO.P11,BLACK,BLACK
VL,PLANT NO.P11,BEIGE,BEIGE
VL,PLANT NO.P11,YELLOW,YELLOW
VL,PLANT NO.P11,YELLOW & BLACK,BEIGE
VL,PLANT NO.P11,BLACK,BLACK,TRIM2#
VL,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4#
PF,PLANT NO.P11,BLACK,BLACK
PF,PLANT NO.P11,RED,RED/MAROON
PF,PLANT NO.P11,GRAY & BLACK,GRAY
PF,PLANT NO.P11,GREEN & BLACK,GREEN
PF,PLANT NO.P11,RED & BLACK,RED/MAROON
PF,PLANT NO.P11,BLACK,BLACK
PF,PLANT NO.P11,BEIGE,BEIGE
PF,PLANT NO.P11,YELLOW,YELLOW
PF,PLANT NO.P11,BEIGE & BLACK,BEIGE
PF,PLANT NO.P11,BLACK,BLACK,TRIM2#
PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4#
FB,PLANT NO.K11,21,BLACK,BLACK,TRIM2#
FB,PLANT NO.K11,21,BROWN,BROWN,TRIM4#
VL,PLANT NO.B11,BLACK,BLACK
VL,PLANT NO.B11,RED,RED/MAROON
VL,PLANT NO.B11,BLACK,BLACK
VL,PLANT NO.B11,BEIGE & BLACK,BEIGE
VL,PLANT NO.B11,YELLOW & BLACK,YELLOW
VL,PLANT NO.B11,BLACK,BLACK,TRIM2#
VL,PLANT NO.B11,OLIVE BROWN,BROWN,TRIM4#
VL,PLANT NO.B11,BLACK,BLACK,TRIM2#
VL PLANT NO.B11,OLIVE BROWN,BROWN,TRIM4#
VL,PLANT NO.B11,BROWN,BROWN,TRIM4#
PF,PLANT NO.B11,GRAY & BLACK,GRAY
PF,PLANT NO.B11,RED & BLACK,RED/MAROON
PF,PLANT NO.B11,BLACK,BLACK
PF,PLANT NO.B11,BEIGE & BLACK,BEIGE
PF,PLANT NO.B11,YELLOW & BLACK,YELLOW
PF,PLANT NO.B11,BLACK,BLACK,TRIM2#
PF,PLANT NO.B11,OLIVE BROWN,BROWN,TRIM4#
PF,PLANT NO.B11,BLACK,BLACK,TRIM2#
PF,PLANT NO.B11,BROWN,BROWN,TRIM4#
PF,EUR SPEC,PLANT NO.B11,BLACK,BLACK,TRIM2#
PF,EUR SPEC,NO.B11,OLIVE BROWN,BROWN,TRIM4#
PF,EUR SPEC,PLANT NO.B11,BROWN,BROWN,TRIM4#
PF,EUR SPEC,PLANT NO.B11,BLACK,BLACK,TRIM2#
PF,EUR SPEC,PLANT NO.B11,BROWN,BROWN,TRIM4#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
VL,PLANT NO.K11,21,BLACK,BLACK,TRIM2#
VL,PLANT NO.K11,21,L-BROWN,BROWN,TRIM4#
PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2#
PF,PLANT NO.K11,21,L-BROWN,BROWN,TRIM4#
FB,PLANT NO.K11,21,BLACK,BLACK,TRIM2#
FB,PLANT NO.K11,21,L-BROWN,BROWN,TRIM4#
FB,K11,21,W/STRAP GUIDE,BLACK,BLACK,TRIM2#
FB,K11,21,W/STRAPGUIDE,L-BROWN,BROWN,TRIM4#
PF,K11,21,W/STRAP GUIDE,BLACK,BLACK,TRIM2#
PF,K11,21,W/STRAPGUIDE,L-BROWN,BROWN,TRIM4#
VL,PLANT NO.B11,BLACK,BLACK,TRIM2#
VL,PLANT NO.B11,BROWN,BROWN,TRIM4#
PF,PLANT NO.B11,BLACK,BLACK,TRIM2#
PF,PLANT NO.B11,L-BROWN,BROWN,TRIM4#
VL,PLANT NO.P11,BLACK,BLACK
VL,PLANT NO.P11,RED,RED/MAROON
PF,PLANT NO.P11,BLACK,BLACK
PF,PLANT NO.P11,RED,RED/MAROON
PF,PLANT NO.P11,GRAY & BLACK,GRAY
PF,PLANT NO.P11,GREEN & BLACK,GREEN
PF,PLANT NO.P11,RED & BLACK,RED/MAROON
VL,PLANT NO.K11,21,BLACK,BLACK,TRIM2#
VL,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4#
VL,PLANT NO.K11,21,BROWN,BROWN,TRIM4#
PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2#
PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4#
PF,PLANT NO.K11,21,BROWN,BROWN,TRIM4#
VL,PLANT NO.P11,BLACK,BLACK
VL,PLANT NO.P11,RED,RED/MAROON
VL,PLANT NO.P11,BLACK,BLACK
VL,PLANT NO.P11,BEIGE,BEIGE
VL,PLANT NO.P11,YELLOW,YELLOW
VL,PLANT NO.P11,BEIGE & BLACK,BEIGE
VL,PLANT NO.P11,BLACK,BLACK,TRIM2#
VL,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4#
PF,PLANT NO.P11,BLACK,BLACK
PF,PLANT NO.P11,RED,RED/MAROON
PF,PLANT NO.P11,GRAY & BLACK,GRAY
PF,PLANT NO.P11,GREEN & BLACK,GREEN
PF,PLANT NO.P11,RED & BLACK,RED/MAROON
PF,PLANT NO.P11,BLACK,BLACK
PF,PLANT NO.P11,BEIGE,BEIGE
PF,PLANT NO.P11,YELLOW,YELLOW
PF,PLANT NO.P11,BEIGE & BLACK,BEIGE
PF,PLANT NO.P11,BLACK,BLACK,TRIM2#
PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4#
FB,PLANT NO.K11,21,BLACK,BLACK,TRIM2#
FB,PLANT NO.K11,21,BROWN,BROWN,TRIM4#
VL,PLANT NO.B11,BLACK,BLACK
VL,PLANT NO.B11,RED,RED/MAROON
VL,PLANT NO.B11,BLACK,BLACK
VL,PLANT NO.B11,BEIGE & BLACK,BEIGE
VL,PLANT NO.B11,YELLOW & BLACK,YELLOW
VL,PLANT NO.B11,BLACK,BLACK,TRIM2#
VL,PLANT NO.B11,OLIVE BROWN,BROWN,TRIM4#
VL,PLANT NO.B11,BLACK,BLACK,TRIM2#
VL,PLANT NO.B11,OLIVE BROWN,BROWN,TRIM4#
VL,PLANT NO.B11,BROWN,BROWN,TRIM4#
PF,PLANT NO.B11,GRAY & BLACK,GRAY
PF,PLANT NO.B11,RED & BLACK,RED/MAROON
PF,PLANT NO.B11,BLACK,BLACK
PF,PLANT NO.B11,BEIGE & BLACK,BEIGE
PF,PLANT NO.B11,YELLOW & BLACK,YELLOW
PF,PLANT NO.B11,BLACK,BLACK,TRIM2#
PF,PLANT NO.B11,OLIVE BROWN,BROWN,TRIM4#
PF,PLANT NO.B11,BLACK,BLACK,TRIM2#
PF,PLANT NO.B11,BROWN,BROWN,TRIM4#
71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
FB,PLANT NO.K11,21,BLACK,BLACK,TRIM2#
FB,PLANT NO.K11,21,BROWN,BROWN,TRIM4#
FB,PLANT NO.K11,21,BLACK,BLACK,TRIM2#
FB,PLANT NO.K11,21,L-BROWN,BROWN,TRIM4#
VL,PLANT NO.P11,BLACK,BLACK
VL,PLANT NO.P11,RED,RED/MAROON
PF,PLANT NO.P11,BLACK,BLACK
PF,PLANT NO.P11,RED,RED/MAROON
PF,PLANT NO.P11,GRAY & BLACK,GRAY
PF,PLANT NO.P11,GREEN & BLACK,GREEN
PF,PLANT NO.P11,RED & BLACK,RED/MAROON
VL,PLANT NO.K11,21,BLACK,BLACK,TRIM2#
VL,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4#
VL,PLANT NO.K11,21,BROWN,BROWN,TRIM4#
VL,PLANT NO.K11,21,BLACK,BLACK,TRIM2#
VL,PLANT NO.K11,21,L-BROWN,BROWN,TRIM4#
PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2#
PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4#
PF,PLANT NO.K11,21,BROWN,BROWN,TRIM4#
PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2#
PF,PLANT NO.K11,21,L-BROWN,BROWN,TRIM4#
VL,PLANT NO.P11,BLACK,BLACK
VL,PLANT NO.P11,RED,RED/MAROON
VL,PLANT NO.P11,BLACK,BLACK
VL,PLANT NO.P11,BEIGE,BEIGE
VL,PLANT NO.P11,YELLOW,YELLOW
VL,PLANT NO.P11,BEIGE & BLACK,BEIGE
VL,PLANT NO.P11,BLACK,BLACK,TRIM2#
VL,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4#
VL,PLANT NO.P11,BLACK,BLACK,TRIM2#
VL,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4#
PF,PLANT NO.P11,BLACK,BLACK
PF,PLANT NO.P11,RED,RED/MAROON
PF,PLANT NO.P11,GRAY & BALCK,GRAY
PF,PLANT NO.P11,GREEN & BLACK,GREEN
PF,PLANT NO.P11,RED & BLACK,RED/MAROON
PF,PLANT NO.P11,BLACK,BLACK
PF,PLANT NO.P11,BEIGE,BEIGE
PF,PLANT NO.P11,YELLOW,YELLOW
PF,PLANT NO.P11,BEIGE & BLACK,BEIGE
PF,PLANT NO.P11,BLACK,BLACK,TRIM2#
PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4#
PF,PLANT NO.P11,BLACK,BLACK,TRIM2#
PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4#
VL,PLANT NO.B11,BLACK,BLACK
VL,PLANT NO.B11,RED,RED/MAROON
VL,PLANT NO.B11,BLACK,BLACK
VL,PLANT NO.B11,BEIGE & BLACK,BEIGE
VL,PLANT NO.B11,YELLOW & BLACK,YELLOW
VL,PLANT NO.B11,BLACK,BLACK,TRIM2#
VL,PLANT NO.B11,OLIVE BROWN,BROWN,TRIM4#
VL,PLANT NO.B11,BLACK,BLACK,TRIM2#
VL,PLANT NO.B11,OLIVE BROWN,BROWN,TRIM4#
VL,PLANT NO.B11,BROWN,BROWN,TRIM4#
VL,PLANT NO.B11,BLACK,BLACK,TRIM2#
VL,PLANT NO.B11,LIGHT BROWN,BROWN,TRIM4#
PF,PLANT NO.B11,GRAY & BLACK,GRAY
PF,PLANT NO.B11,RED & BLACK,RED/MAROON
PF,PLANT NO.B11,BLACK,BLACK
PF,PLANT NO.B11,BEIGE & BLACK,BEIGE
PF,PLANT NO.B11,YELLOW & BLACK,YELLOW
PF,PLANT NO.B11,BLACK,BLACK,TRIM2#
PF,PLANT NO.B11,OLIVE BROWN,BROWN,TRIM4#
PF,PLANT NO.B11,BLACK,BLACK,TRIM2#
PF,PLANT NO.B11,BROWN,BROWN,TRIM4#
PF,PLANT NO.B11,BLACK,BLACK,TRIM2#
PF,PLANT NO.B11,L-BROWN,BROWN,TRIM4#
PF,EUR SPEC,PLANT NO.B11,BLACK,BLACK,TRIM2#
PF,EUR SPEC,NO.B11,OLIVE BROWN,BROWN,TRIM4#
PF,EUR SPEC,PLANT NO.B11,BROWN,BROWN,TRIM4#
PF,EUR SPEC,PLANT NO.B11,BLACK,BLACK,TRIM2#
PF,EUR SPEC,PLANT NO.B11,BROWN,BROWN,TRIM4#
PF,EUR SPEC,PLANT NO.B11,BLACK,BLACK,TRIM2#
PF,EUR SPEC,NO.B11,L-BROWN,BROWN,TRIM4#
71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)
FB,PLANT NO.K11,21,BLACK,BLACK,TRIM2#
FB,PLANT NO.K11,21,BROWN,BROWN,TRIM4#
FB,PLANT NO.K11,21,BLACK,BLACK,TRIM2#
FB,PLANT NO.K11,21,L-BROWN,BROWN,TRIM4#
FB,W/STRAPGUIDE,K11,21,BLACK,BLACK,TRIM2#
FB,W/STRAPGUIDE,K11,21,L-BROWN,BROWN,TRIM4#
PF,W/STRAPGUIDE,K11,21,BLACK,BLACK,TRIM2#
PF,W/STRAPGUIDE,K11,21,L-BROWN,BROWN,TRIM4#
PF,PLANT NO.B11,W/O MAT,BLACK,BLACK,TRIM2#
PF,PLANT NO.B11,W/O MAT,BROWN,BROWN,TRIM4#
PF,PLANT NO.B11,W/O MAT,BLACK,BLACK,TRIM2#
PF,PLANT NO.B11,W/OMAT,L-BROWN,BROWN,TRIM4#
VL,PLANT NO.P11,BLACK,BLACK
VL,PLANT NO.P11,RED,RED/MAROON
PF,PLANT NO.P11,BLACK,BLACK
PF,PLANT NO.P11,RED,RED/MAROON
PF,PLANT NO.P11,GRAY & BLACK,GRAY
PF,PLANT NO.P11,GREEN & BLACK,GREEN
PF,PLANT NO.P11,RED & BLACK,RED/MAROON
VL,PLANT NO.K11,21,BLACK,BLACK,TRIM2#
VL,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4#
VL,PLANT NO.K11,21,BROWN,BROWN,TRIM4#
VL,PLANT NO.K11,21,BLACK,BLACK,TRIM2#
VL,PLANT NO.K11,21,L-BROWN,BROWN,TRIM4#
PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2#
PF,PLANT NO.K11,21,OLIVE BROWN,BROWN,TRIM4#
PF,PLANT NO.K11,21,BROWN,BROWN,TRIM4#
PF,PLANT NO.K11,21,BLACK,BLACK,TRIM2#
PF,PLANT NO.K11,21,L-BROWN,BROWN,TRIM4#
VL,PLANT NO.P11,BLACK,BLACK
VL,PLANT NO.P11,RED,RED/MAROON
VL,PLANT NO.P11,BLACK,BLACK
VL,PLANT NO.P11,BEIGE,BEIGE
VL,PLANT NO.P11,YELLOW,YELLOW
VL,PLANT NO.P11,BEIGE & BLACK,BEIGE
VL,PLANT NO.P11,BLACK,BLACK,TRIM2#
VL,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4#
VL,PLANT NO.P11,BLACK,BLACK,TRIM2#
VL,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4#
PF,PLANT NO.P11,BLACK,BLACK
PF,PLANT NO.P11,RED,RED/MAROON
PF,PLANT NO.P11,GRAY & BLACK,GRAY
PF,PLANT NO.P11,GREEN & BLACK,GREEN
PF,PLANT NO.P11,RED & BLACK,RED/MAROON
PF,PLANT NO.P11,BLACK,BLACK
PF,PLANT NO.P11,BEIGE,BEIGE
PF,PLANT NO.P11,YELLOW,YELLOW
PF,PLANT NO.P11,BEIGE & BLACK,BEIGE
PF,PLANT NO.P11,BLACK,BLACK,TRIM2#
PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4#
PF,PLANT NO.P11,BLACK,BLACK,TRIM2#
PF,PLANT NO.P11,OLIVE BROWN,BROWN,TRIM4#
VL,PLANT NO.B11,BLACK,BLACK
VL,PLANT NO.B11,RED,RED/MAROON
VL,PLANT NO.B11,BLACK,BLACK
VL,PLANT NO.B11,BEIGE & BLACK,BEIGE
VL,PLANT NO.B11,YELLOW & BLACK,YELLOW
VL,PLANT NO.B11,BLACK,BLACK,TRIM2#
VL,PLANT NO.B11,OLIVE BROWN,BROWN,TRIM4#
VL,PLANT NO.B11,BLACK,BLACK,TRIM2#
VL,PLANT NO.B11,OLIVE BROWN,BROWN,TRIM4#
VL,PLANT NO.B11,BROWN,BROWN,TRIM4#
VL,PLANT NO.B11,BLACK,BLACK,TRIM2#
VL,PLANT NO.B11,L-BROWN,BROWN,TRIM4#
PF,PLANT NO.B11,GRAY & BLACK,GRAY
PF,PLANT NO.B11,RED & BLACK,RED/MAROON
PF,PLANT NO.B11,BLACK,BLACK
PF,PLANT NO.B11,BEIGE & BLACK,BEIGE
PF,PLANT NO.B11,YELLOW & BLACK,YELLOW
PF,PLANT NO.B11,BLACK,BLACK,TRIM2#
PF,PLANT NO.B11,OLIVE BROWN,BROWN,TRIM4#
PF,PLANT NO.B11,W/MAT,BLACK,BLACK,TRIM2#
PF,PLANT NO.B11,W/MAT,BROWN,BROWN,TRIM4#
PF,PLANT NO.B11,W/MAT,BLACK,BLACK,TRIM2#
PF,PLANT NO.B11,W/MAT,BROWN,BROWN,TRIM4#
PF,PLANT NO.B11,W/MAT,BLACK,BLACK,TRIM2#
PF,PLANT NO.B11,W/MAT,L-BROWN,BROWN,TRIM4#
VL,PLANT NO.B11,W/MAT,BLACK,BLACK
VL,NO.B11,W/MAT,BEIGE & BLACK,BEIGE
VL,NO.B11,W/MAT,YELLOW & BLACK,YELLOW
VL,PLANT NO.B11,W/MAT,BLACK,BLACK,TRIM2#
VL,NO.B11,W/MAT,OLIVE BROWN,BROWN,TRIM4#
VL,PLANT NO.B11,W/MAT,BLACK,BLACK,TRIM2#
VL,NO.B11,W/MAT,OLIVE BROWN,BROWN,TRIM4#
VL,PLANT NO.B11,W/MAT,BROWN,BROWN,TRIM4#
VL,PLANT NO.B11,W/MAT,BLACK,BLACK,TRIM2#
VL,PLANT NO.B11,W/MAT,BROWN,BROWN,TRIM4#
VL,PLANT NO.B11,W/MAT,BLACK,BLACK,TRIM2#
VL,PLANT NO.B11,W/MAT,L-BROWN,BROWN,TRIM4#
71691BRACKET, REAR SEAT CUSHION SET
71812CLIP (FOR FRONT SEAT CUSHION COVER)
sub90468-18008
9015960045
main90159-60045
9165140818
main91651-40818
8 parts on this diagram · 2 diagrams in section
