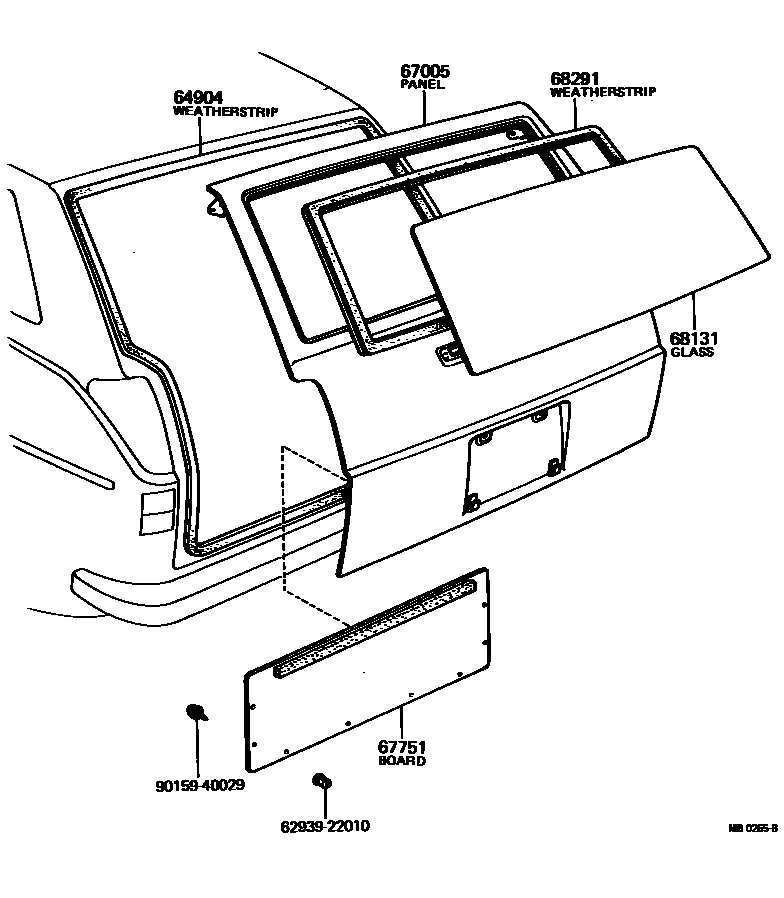

BACK DOOR PANEL & GLASS

64904WEATHERSTRIP SUB-ASSY, BACK DOOR

main67871-11020iKP36..V196904-197809

67005PANEL SUB-ASSY, BACK DOOR

main67005-11050iKP36..V196904-197112

sub67005-11051

main67005-11051iKP36..V197201-197801

main67005-11052iKP36..V197801-197809

67751BOARD, BACK DOOR TRIM

main67751-11030-01iKP36..V196904-197112

BLACK,BLACK

main67751-11030-02iKP36..V196904-197010

RED,RED/MAROON

main67751-11031-06iKP36..V197201-197410

OLIVE BROWN,BROWN,TRIM4#

sub67751-11031

main67751-11031-11iKP36..V197201-197701

BLACK,BLACK,TRIM2#

sub67751-11031

main67751-11031-16iKP36..V197410-197701

BROWN,BROWN,TRIM4#

sub67751-11031

main67751-11031-21iKP36..V197701-197809

BLACK,BLACK,TRIM2#

sub67751-11031

main67751-11031-26iKP36..V197701-197809

LIGHT BROWN,BROWN,TRIM4#

sub67751-11031

68131GLASS, BACK DOOR

main68105-11010iKP36..V197511-197809

*EHTT,T=4.0

main68131-11030iKP36..V196904-197809

*TEM,T=4.0

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-11040iKP36..V196904-197511

W/O MOULDING

main68291-11050iKP36..V196904-197809

W/MOULDING

6293922010RETAINER, ROOF SIDE VENT

main62939-22010

9015940029

main90159-40029

7 parts on this diagram · 1 diagram in section
