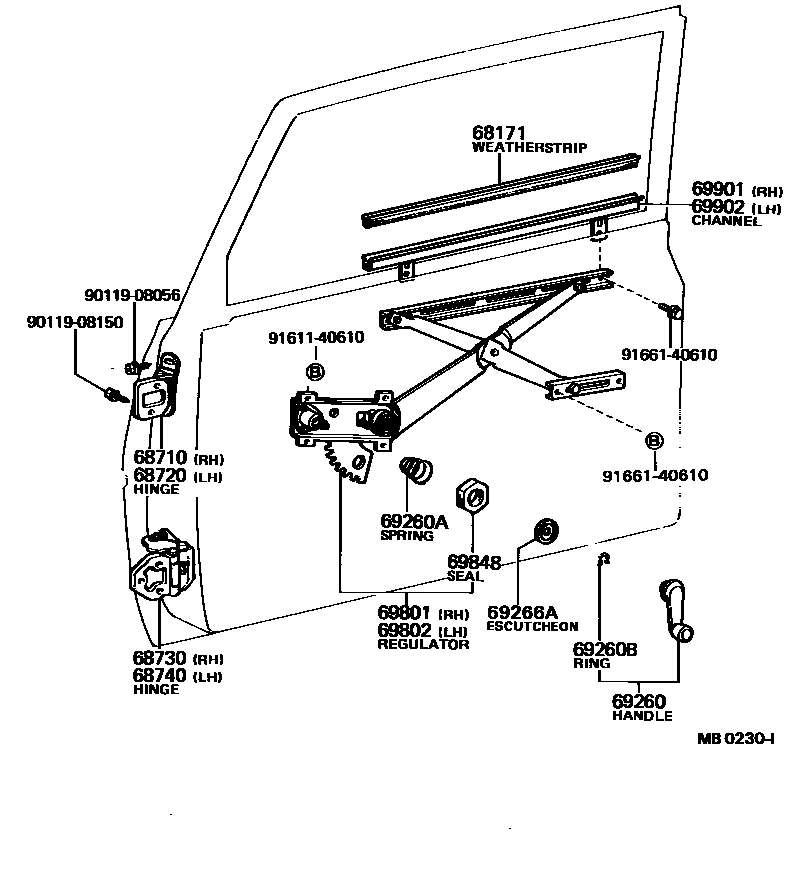

FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68171-10030iKP3#196909-198608

main69971-96400iKP36198608-198808

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-10020iKP3#196904-198808

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-10020iKP3#196904-198808

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-10020iKP3#196904-198808

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-10020iKP3#196904-198808

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10030iKP3#196904-197301

sub69260-10040

main69260-10040iKP3#197301-197701

sub69260-16010

main69260-10040-01iKP3#197701-198808

BLACK,BLACK,TRIM2#

sub69260-10040

sub69260-16010

main69260-10040-05iKP3#197701-198808

BEIGE,BEIGE,TRIM4#

sub69260-10040

sub69260-16010

69260ASPRING(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90502-16018iKP3#196904-198808

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iKP30,36196904-198808

sub90520-01274

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69272-30010iKP3#196904-197112

main69285-22010iKP3#197201-198808

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-10030iKP3#196904-198808

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-10030iKP3#196904-198808

69848SEAL, WINDOW REGULATOR HOLE

main69848-30010iKP3#196904-198808

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-10030iKP3#196909-197208

main69901-10031iKP3#197208-198608

main69901-96400iKP36198608-198808

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69902-10010iKP3#196909-197208

main69902-10011iKP3#197208-198608

main69902-96400iKP36198608-198808

9011908056

main90119-08056

9011908150

main90119-08150

9161140610

main91611-40610

9166140610

main91661-40610

18 parts on this diagram · 1 diagram in section
