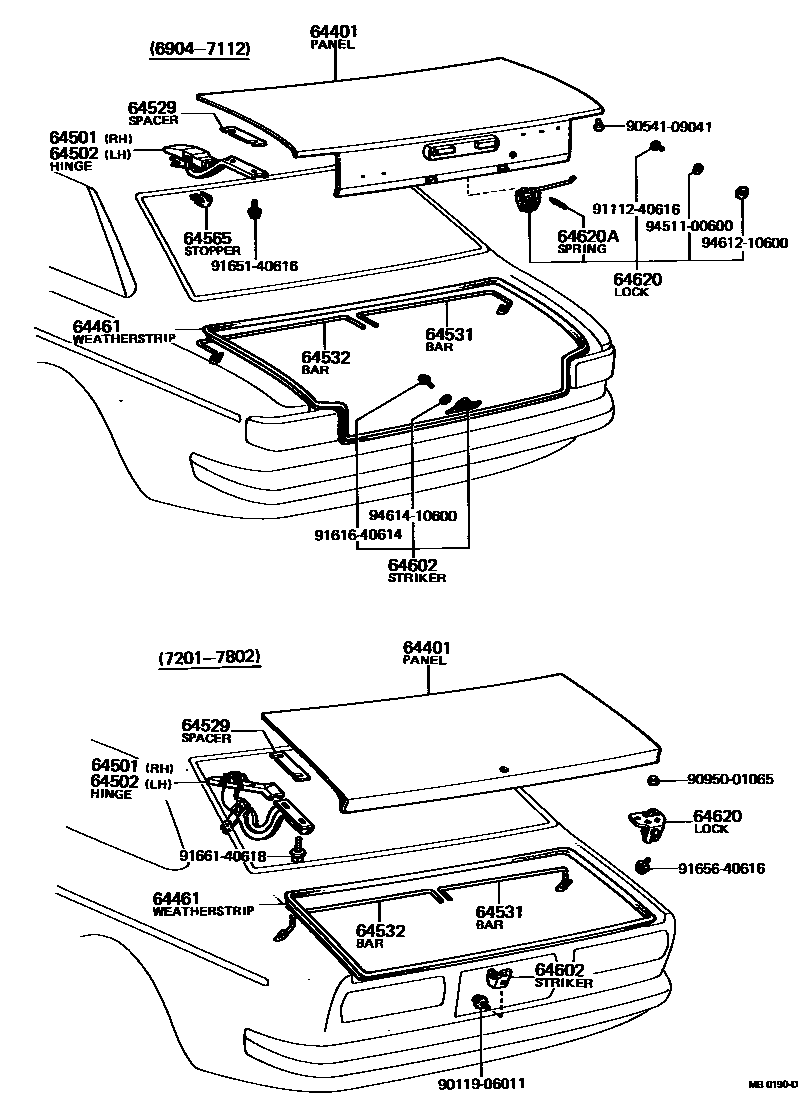

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-10060iKP30196904-196909

sub64401-10061

sub69061-19015

main64401-10061iKP30196909-197112

main64401-10062iKP30197201-197410

sub64401-10901

main64401-10901iKP30197410-197802

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-10030iKP30196904-197112

main64461-10031iKP30197201-197802

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64501-10011iKP30196912-197112

main64510-10041iKP30196904-196912

main64510-10050iKP30197201-197802

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64502-10011iKP30196912-197112

main64520-10011iKP30196904-196912

main64520-10020iKP30197201-197802

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-10010iKP30196904-197112

main64529-12020iKP30197201-197802

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-10011iKP30196912-197112

main64531-10012iKP30197201-197208

sub64531-10013

main64531-10013iKP30197208-197802

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-10011iKP30196912-197112

main64532-10012iKP30197201-197208

sub64532-10013

main64532-10013iKP30197208-197802

64565STOPPER, LUGGAGE DOOR OPEN HOLD

main64565-10020iKP30196904-196912

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64602-19025iKP30196904-197112

sub64602-10010

main64621-12030iKP30197201-197802

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64620-12050iKP30197201-197802

main64620-19035iKP30196904-197112

sub64620-10020

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-09236iKP30196904-197112

9011906011

main90119-06011

9054109041

main90541-09041

9095001065

main90950-01065

9111240616

main91112-40616

9161640614

main91616-40614

9165140616

main91651-40616

9165640616

main91656-40616

9166140618

main91661-40618

9451100600

main94511-00600

9461210600

main94612-10600

9461410600

main94614-10600

22 parts on this diagram · 1 diagram in section
