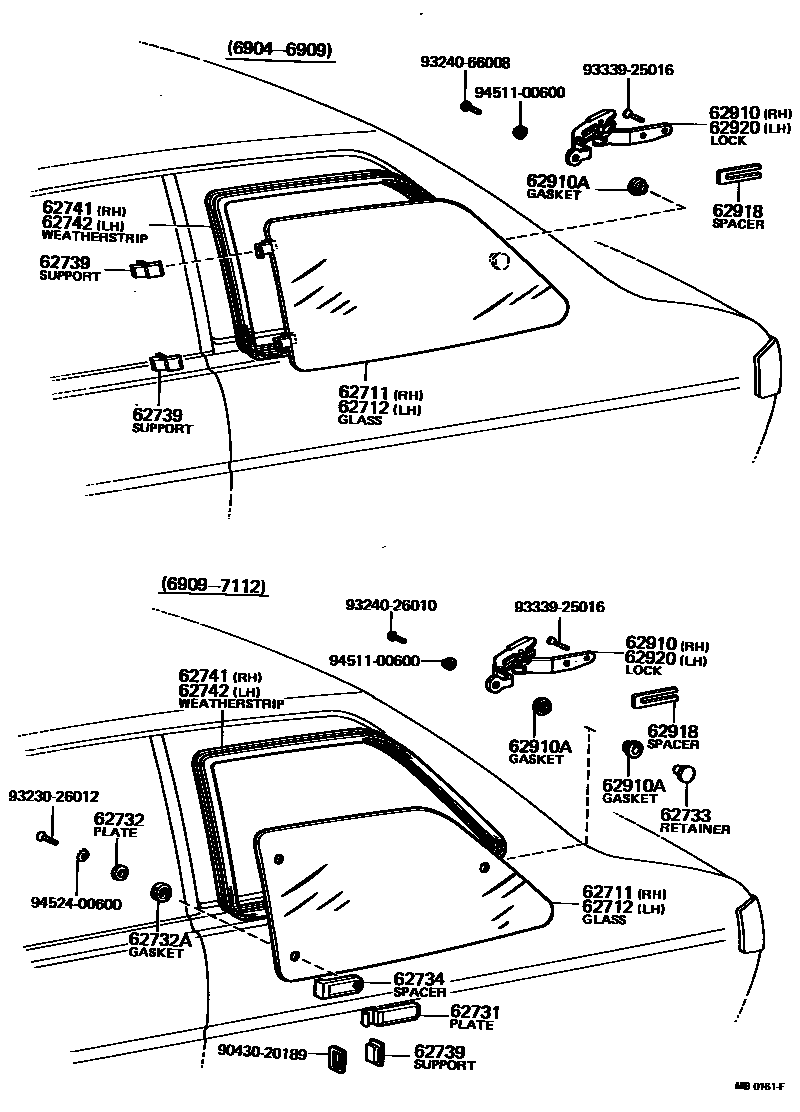

QUARTER WINDOW

0001 1 0002 1 0003 1

62711GLASS, QUARTER WINDOW, RH

main62071-10010iKP30196904-196909

*TEM,T=4.0

sub62711-10051

sub62731-10031

sub62732-10030

sub62733-12010

sub62734-10030

sub62734-12010

sub62739-10021

sub62910-10031

sub90430-06199

sub93230-26012

sub93240-26010

sub94511-00600

sub94524-00600

main62071-10020iKP30196904-196909

*TT,T=4.0

sub62711-10061

sub62731-10031

sub62732-10030

sub62733-12010

sub62734-10030

sub62734-12010

sub62739-10021

sub62910-10031

sub90430-06199

sub93230-26012

sub93240-26010

sub94511-00600

sub94524-00600

main62071-11010iKP36196904-196909

*TEM,T=4.0

sub62711-11021

sub62731-10031

sub62732-10030

sub62733-12010

sub62734-10030

sub62734-12010

sub62739-10021

sub62910-11011

sub90430-06199

sub93230-26012

sub93240-26010

sub94511-00600

sub94524-00600

main62711-10051iKP30196909-197112

*TEM,T=4.0

sub62711-10061

main62711-10052iKP30197201-197802

*TEM,T=4.0

sub62711-10062

main62711-10061iKP30196909-197112

*TT,T=4.0

main62711-10062iKP30197201-197802

*TT,T=4.0

main62711-11021iKP36..V196909-197809

*TEM,T=4.0

62712GLASS, QUARTER WINDOW, LH

main62072-10010iKP30196904-196909

*TEM,T=4.0

sub62712-10011

sub62731-10031

sub62732-10030

sub62733-12010

sub62734-10030

sub62734-12010

sub62739-10021

sub62910-10031

sub90430-06199

sub93230-26012

sub93240-26010

sub94511-00600

sub94524-00600

main62072-10020iKP30196904-196909

*TT,T=4.0

sub62712-10021

sub62731-10031

sub62732-10030

sub62733-12010

sub62734-10030

sub62734-12010

sub62739-10021

sub62910-10031

sub90430-06199

sub93230-26012

sub93240-26010

sub94511-00600

sub94524-00600

main62072-11010iKP36196904-196909

*TEM,T=4.0

sub62712-11021

sub62731-10031

sub62732-10030

sub62733-12010

sub62734-10030

sub62734-12010

sub62739-10021

sub62920-11011

sub90430-06199

sub93230-26012

sub93240-26010

sub94511-00600

sub94524-00600

main62712-10011iKP30196909-197112

*TEM,T=4.0

sub62712-10021

main62712-10012iKP30197201-197802

*TEM,T=4.0

sub62712-10022

main62712-10021iKP30196909-197112

*TT,T=4.0

main62712-10022iKP30197201-197802

*TT,T=4.0

main62712-11021iKP36..V196909-197809

*TEM,T=4.0

62731PLATE, QUARTER OR SIDE WINDOW HINGE

main62731-10031iKP3#..SED,V196909-197809

main62731-10050iKP30197201-197802

62732PLATE, QUARTER OR SIDE WINDOW HINGE FINISH

main62732-10030iKP3#..SED,V196909-197809

main62732-12010iKP30197201-197802

62732AGASKET(FOR QUARTER WINDOW HINGE FINISH PLATE)

main62734-12010iKP30197201-197802

main90430-06199iKP36..V196909-197809

62733RETAINER, QUARTER OR SIDE WINDOW HINGE

main62733-12010iKP30,36..SED,V196909-197809

62734SPACER, QUARTER WINDOW HINGE

main62734-10030iKP3#..SED,V196909-197809

62739SUPPORT, QUARTER WINDOW HINGE

main62739-10020iKP3#196904-196909

main62739-10021iKP3#..SED,V196909-197809

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62740-10020iKP30196904-197010

main62740-10021iKP30197010-197112

main62741-10031iKP30197201-197802

main62741-11020iKP36..V196904-197809

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62740-10020iKP30196904-197010

main62740-10021iKP30197010-197112

main62742-10030iKP30197201-197802

main62742-11020iKP36..V196904-197809

62910LOCK ASSY, QUARTER OR SIDE WINDOW, RH

main62910-10030iKP30196904-196909

main62910-10031iKP30196909-197112

main62910-10032iKP30197201-197501

main62910-10033iKP30197501-197511

main62910-10034iKP30197511-197802

main62910-10050iKP30..LHD197611-197802

WEST GERMANY SPEC

main62910-11010iKP36196904-196909

sub62910-11011

main62910-11011iKP36..V196909-197501

main62910-11012iKP36..V197501-197511

main62910-11013iKP36..V197511-197809

main62910-11020iKP36..V..LHD197611-197809

WEST GERMANY SPEC

62910AGASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE)

main62734-12010iKP30,36..SED,V196909-197809

main90430-08180iKP3#196904-196909

62918SPACER, QUARTER WINDOW LOCK SUPPORT

main62918-10021iKP30196904-197802

T=1.2

main62918-10030iKP30196912-197112

T=2.3

main62918-13010iKP36..V196904-197809

62920LOCK ASSY, QUARTER WINDOW, LH

main62910-10030iKP30196904-196909

main62910-10031iKP30196909-197112

main62910-10032iKP30197201-197501

main62910-10033iKP30197501-197511

main62910-10034iKP30197511-197802

main62910-10050iKP30..LHD197611-197802

WEST GERMANY SPEC

main62920-11010iKP36196904-196909

sub62920-11011

main62920-11011iKP36..V196909-197501

main62920-11012iKP36..V197501-197511

main62920-11013iKP36..V197511-197809

main62920-11020iKP36..V..LHD197611-197809

WEST GERMANY SPEC

9043020189

main90430-20189

9323026012

main93230-26012

9324026010

main93240-26010

9324066008

main93240-66008

9333925016

main93339-25016

9451100600

main94511-00600

9452400600

main94524-00600

21 parts on this diagram · 3 diagrams in section
