SIDE MEMBER
53715PLATE, FRONT FENDER APRON, REAR RH
53716PLATE, FRONT FENDER APRON, REAR LH
55715GUSSET, INSTRUMENT UPPER SET PANEL, RH
55716GUSSET, INSTRUMENT UPPER SET PANEL, LH
61101PANEL SUB-ASSY, COWL SIDE, RH
61102PANEL SUB-ASSY, COWL SIDE, LH
61103PILLAR SUB-ASSY, FRONT BODY, RH
61104PILLAR SUB-ASSY, FRONT BODY, LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61204RAIL SUB-ASSY, ROOF SIDE, INNER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61335REINFORCEMENT, FRONT SEAT BELT ANCHORAGE, UPPER
RH
LH
RH
RH
LH
LH
61615TROUGH, LUGGAGE COMPARTMENT OPENING, RH
61616TROUGH, LUGGAGE COMPARTMENT OPENING, LH
61715REINFORCEMENT, ROOF SIDE, INNER REAR RH
61716REINFORCEMENT, ROOF SIDE, INNER REAR LH
61733APANEL, ROOF SIDE, INNER FRONT RH
61733BPANEL, ROOF SIDE, INNER REAR RH
61734APANEL, ROOF SIDE, INNER FRONT LH
61734BPANEL, ROOF SIDE, INNER REAR LH
61737RETAINER, QUARTER TRIM, UPPER RH
RR
FR
61738RETAINER, QUARTER TRIM, UPPER LH
RR
FR
61753STRAINER, PACKAGE TRAY, RH
61754STRAINER, PACKAGE TRAY, LH
61761NUT, QUARTER WINDOW LOCK SETTING
61762CASE, QUARTER WINDOW LOCK SETTING NUT, RH
61763CASE, QUARTER WINDOW LOCK SETTING NUT, LH
64226HANGER, REAR SEAT CUSHION SUPPORT
5529930010CAP, TEE NUT(FOR 6MM)
main55299-30010
9095001006
main90950-01006
9095001028
main90950-01028
9095001103
main90950-01103
9095001104
main90950-01104
9095001110
main90950-01110
9095001126
main90950-01126

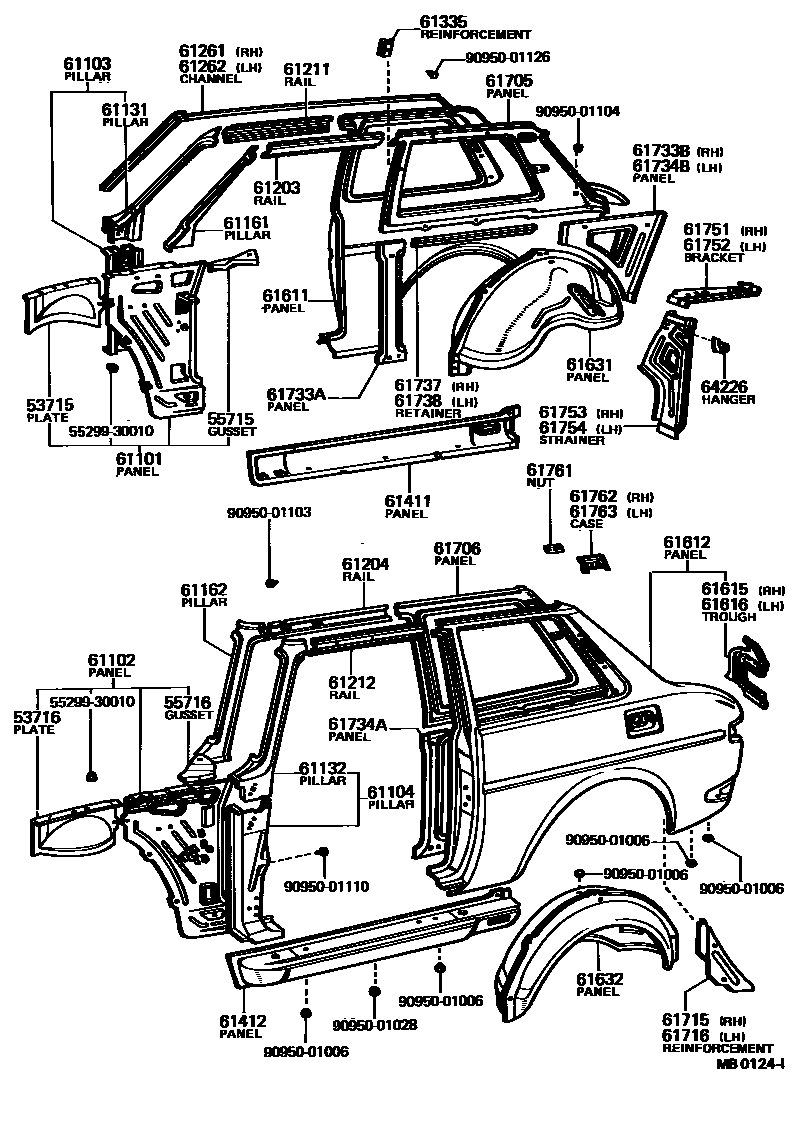

52 parts on this diagram · 4 diagrams in section
