MAT & CARPET
58511MAT, FLOOR, FRONT
OFF-BLACK,BLACK
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
OFF-BLACK,BLACK
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
LIGHT BROWN,BROWN,TRIM4#
58521HOOK, MALE, NO.1
58521ASPACER(FOR HOOK MALE NO.1)
58526HOOK, MALE, NO.2
58527MAT, CENTER FLOOR CROSSMEMBER
BLACK,BLACK,TRIM2#
LIGHT BROWN,BROWN,TRIM4#
58551MAT, FLOOR, REAR
OFF-BLACK,BLACK
BEIGE,BEIGE
YELLOW,YELLOW
BLACK,BLACK
OFF-BLACK,BLACK
BLACK,BLACK
OLIVE BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
OLIVE BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
W/SEAT BELT,BLACK,BLACK,TRIM2#
W/SEAT BELT,BROWN,BROWN,TRIM4#
W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
OLIVE BROWN
BLACK
BROWN
W/O SEAT BELT,BLACK,BLACK,TRIM2#
W/O SEAT BELT,BROWN,BROWN,TRIM4#
W/O SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
W/O SEAT BELT,BLACK,BLACK,TRIM2#
W/O SEAT BELT,BROWN,BROWN,TRIM4#
W/O SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
BLACK
58571SET PLATE, REAR FLOOR MAT, FRONT
58572SET PLATE, REAR FLOOR MAT, REAR
9016235018
main90162-35018
9016240002
main90162-40002
9353014020
main93530-14020

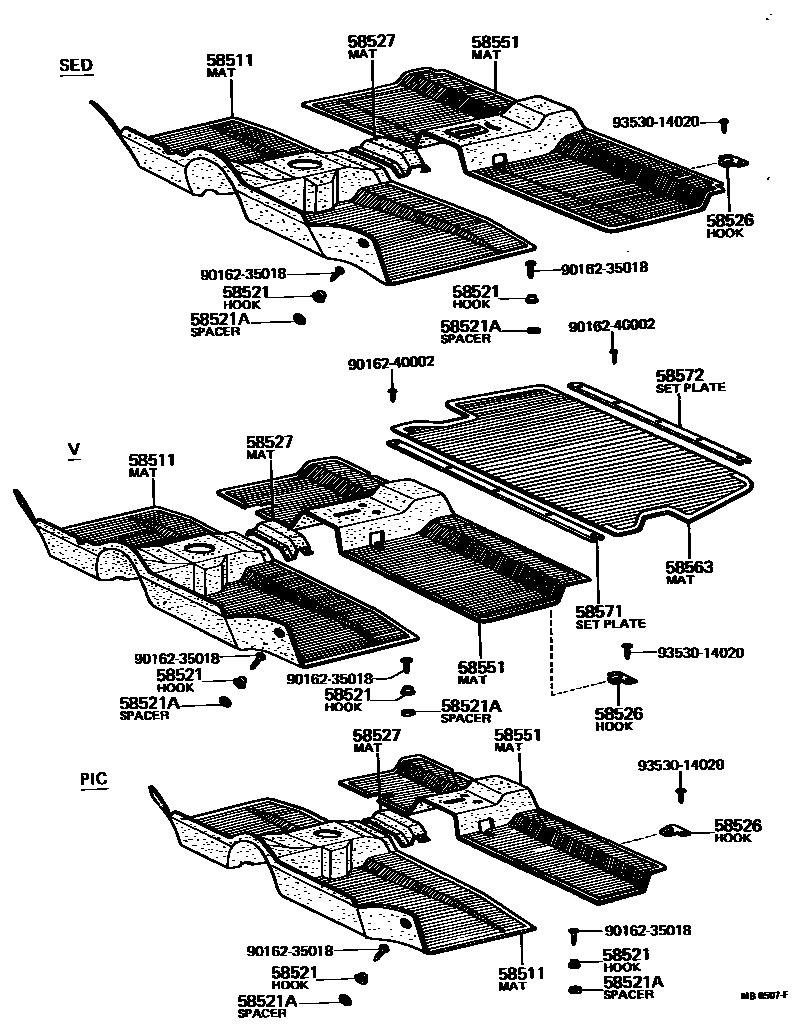

12 parts on this diagram · 2 diagrams in section
