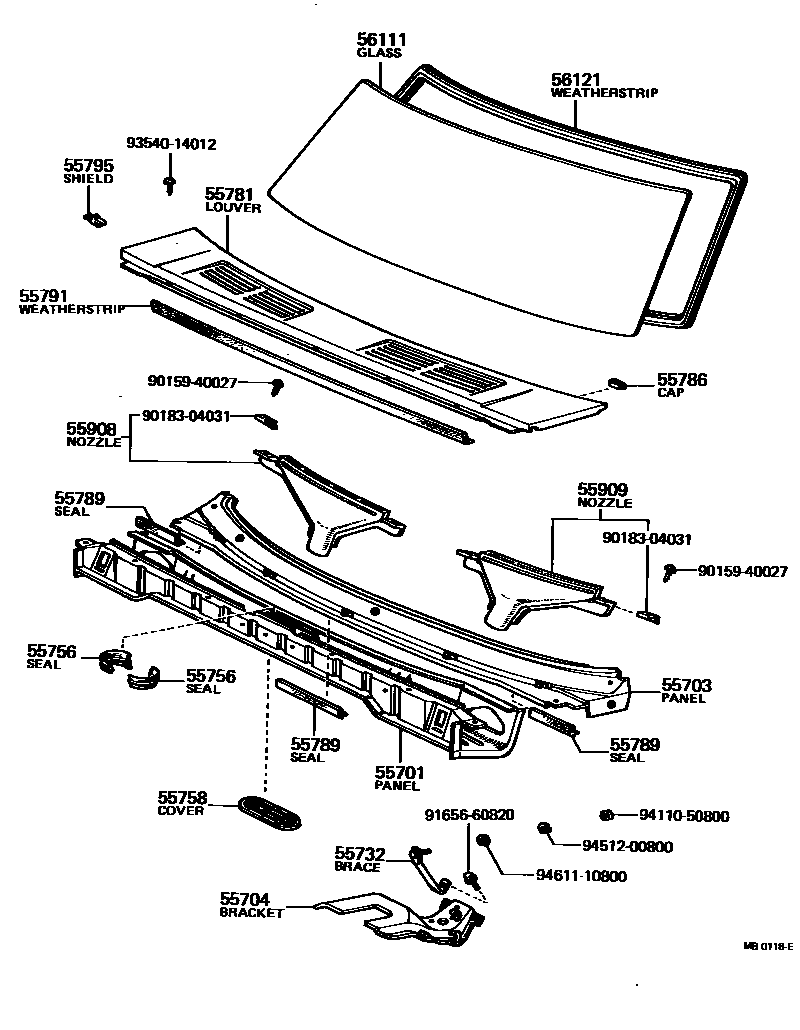

COWL PANEL & WINDSHIELD GLASS

55701PANEL SUB-ASSY, COWL

main55701-10030iKP3#..RHD196904-197010

main55701-10031iKP3#..RHD¥12,000197010-197112

sub55701-10030

main55701-10032iKP3#..RHD197201-198808

main55701-10040iKP3#..LHD196904-197010

main55701-10041iKP3#..LHD197010-197112

main55701-10042iKP30,36..LHD197201-198808

55703PANEL SUB-ASSY, COWL TOP, REAR

main55703-10010iKP3#..RHD196904-197010

main55703-10011iKP3#..RHD197010-198808

main55703-10020iKP3#..LHD196904-197010

main55703-10021iKP30,36..LHD197010-198808

55704BRACKET SUB-ASSY, STEERING COLUMN CLAMP

main55704-10010iKP3#..RHD196904-197010

main55704-10011iKP3#..RHD197010-197112

main55704-10012iKP3#..RHD197201-198808

RIGID STEERING

main55704-10020iKP3#..LHD196904-197010

main55704-10021iKP3#..LHD197010-197112

main55704-10022iKP30,36..LHD197201-198808

SINGLE M/C OR RIGID

main55704-10030iKP30,36..(SED,V)..RHD197310-197809

W/COLLAPSIBLE STEERING

main55704-10040iKP30,36..(SED,V)..LHD197506-197809

W/TANDEM M/C OR COLLAPSIBLE

55732BRACE, STEERING COLUMN BRACKET

main55733-10010iKP30,36..(SED,V)..RHD197310-197809

W/COLLAPSIBLE STEERING

55756SEAL, HEATER AIR DUCT

main55756-10010iKP3#¥410197201-198808

main55785-10010iKP3#196904-197112

sub55756-10010¥410

55758COVER, HEATER AIR DUCT

main55759-10010iKP3#196904-198808

55781LOUVER, COWL VENTILATOR

main55781-10010iKP3#196904-197112

main55781-10011iKP3#197201-198808

55786CAP, COWL VENTILATOR LOUVER

main55786-20020iKP3#¥170196904-198808

55789SEAL, COWL TOP TO LOUVER

main55788-10010iKP3#¥310196904-198808

CTR

main55789-10010iKP3#¥200196904-198808

SIDE

55791WEATHERSTRIP, HOOD TO COWL TOP

main55791-10010iKP3#196904-198808

55795SHIELD, COWL TOP TO LOUVER, SIDE

main55795-10010iKP3#¥210196904-198808

RH

main55796-10010iKP3#¥210196904-198808

LH

55908NOZZLE SUB-ASSY, DEFROSTER, RH

main55908-10010iKP3#196904-197010

main55951-10020iKP30,36¥2,220197010-198808

55909NOZZLE SUB-ASSY, DEFROSTER, LH

main55909-10010iKP3#196904-197010

main55952-10020iKP30,36¥2,050197010-198808

56111GLASS, WINDSHIELD

main56111-10050iKP30,36¥28,700196904-198808

*ZT,T=5.0,*ZT,T=5.0

sub56111-10270¥63,400

main56111-10060iKP30,36¥30,700196904-198808

*TZT,T=5.0,*TZT,T=5.0

sub56111-10080¥52,600

main56111-10070iKP3#¥52,900196904-198608

*LAM,T=6.6,*LAM,T=6.6

sub56111-10270¥63,400

main56111-10270iKP36¥63,400198608-198808

*LAM,T=5.3,*LAM,T=5.3

56121WEATHERSTRIP, WINDSHIELD

main56121-10050iKP3#¥6,800196904-197511

W/O MOULDING

main56121-10060iKP3#¥6,800196904-198808

W/MOULDING

9015940027

main90159-40027¥100

9018304031

main90183-04031¥130

9165660820

main91656-60820¥180

9354014812

main93540-14812

9411050800

main94110-50800¥80

9451200800

main94512-00800¥80

9461110800

main94611-10800¥80

22 parts on this diagram · 1 diagram in section
