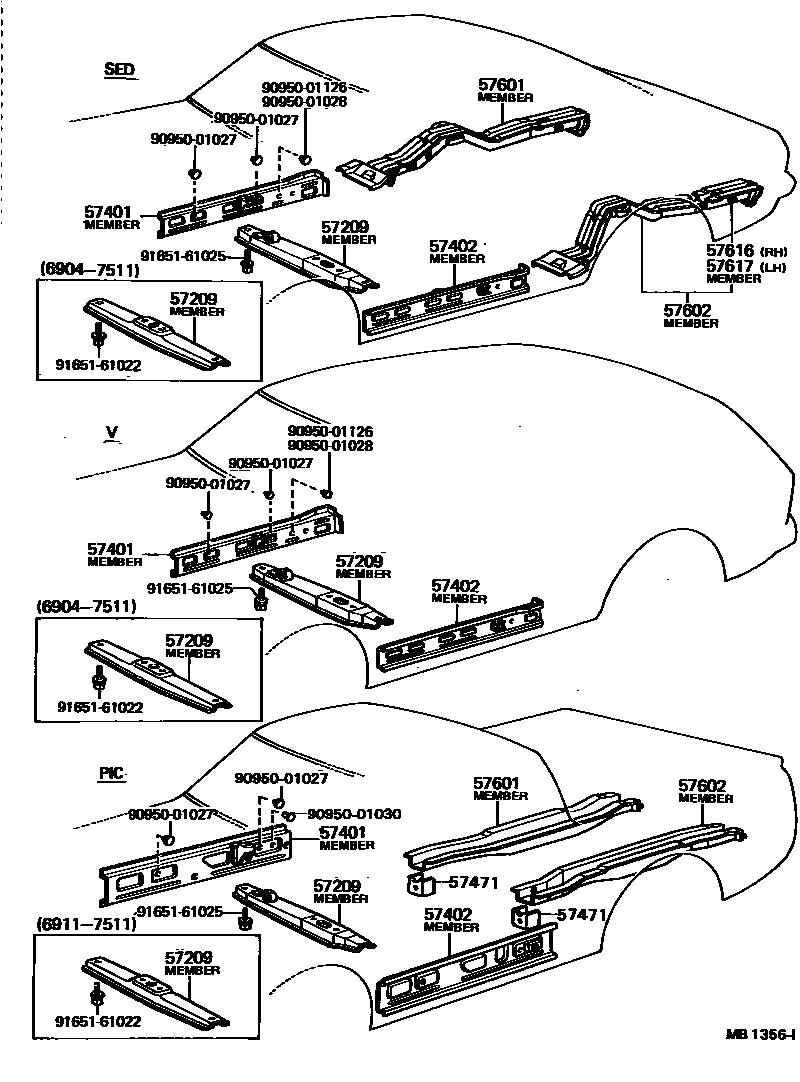

FLOOR SIDE MEMBER

57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main57209-10020iKP3#197511-197710

main57209-10021iKP3#197710-198808

main57209-12011iKP3#196904-197511

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main58207-10010iKP3#..SED,V196904-197610

main58207-10050iKP30,36..SED,V197610-197809

main58207-11010iKP36,37..PIC196911-198402

sub58207-96400

main58207-96400iKP36..PIC197611-198402

*GIS

main58207-96400iKP36198402-198808

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main58208-10010iKP3#..SED,V196904-197610

main58208-10060iKP3#..(SED,V)..RHD197201-197809

main58208-10070iKP30,36..(SED,V)..LHD197610-197809

main58208-11010iKP36,37..PIC196911-198402

sub58208-96400

main58208-96400iKP36..PIC197611-198402

*GIS

main58208-96400iKP36198402-198808

57471REINFORCEMENT, SEAT BELT ANCHOR TO FLOOR MEMBER, RH

main57471-96400iKP36198608-198808

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-10010iKP30196904-197112

main57601-10011iKP30197201-197310

main57601-10012iKP30197310-197511

main57601-10013iKP30197511-197802

main57611-11010iKP36,37..PIC196911-198808

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-10010iKP30196904-197112

main57602-10011iKP30197201-197511

main57602-10020iKP30197511-197802

main57612-11010iKP36..PIC196911-197205

sub57612-96400

sub90480-01383

main57612-96400iKP36,37..PIC197205-198808

57616MEMBER, REAR FLOOR SIDE, REAR RH

main57605-10030iKP30196904-197112

main57605-10031iKP30197201-197802

57617MEMBER, REAR FLOOR SIDE, REAR LH

main57606-10030iKP30196904-197112

main57606-10031iKP30197201-197511

main57606-10050iKP30197511-197802

9095001027

main90950-01027

9095001028

main90950-01028

9095001030

main90950-01030

9095001126

main90950-01126

9165161022

main91651-61022

9165161025

main91651-61025

14 parts on this diagram · 1 diagram in section
