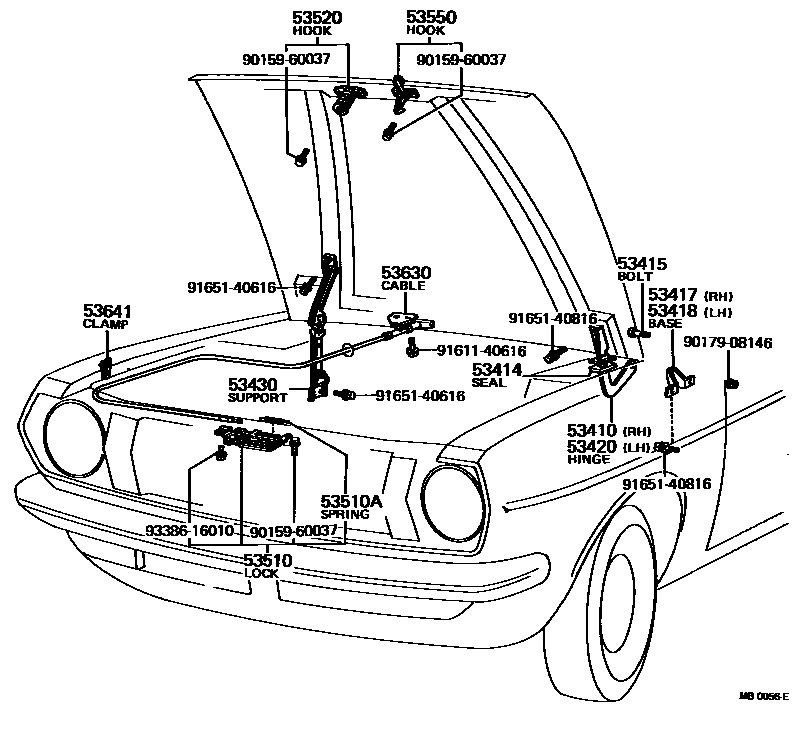

HOOD LOCK & HINGE

0001 1 0002 1 0003 1 0004 1

53410HINGE ASSY, HOOD, RH

main53401-10030iKP3#196904-197112

main53401-10031iKP3#197201-198808

53414SEAL, HOOD HINGE

main53414-10020iKP3#196904-197112

main53414-10021iKP3#197201-198808

53415BOLT, HOOD HINGE

main53415-10020iKP3#196904-198808

53417BASE, HOOD HINGE, RH

main53417-10010iKP3#196904-198808

53418BASE, HOOD HINGE, LH

main53418-10010iKP3#196904-198808

53420HINGE ASSY, HOOD, LH

main53402-10010iKP3#196904-197112

main53402-10011iKP3#197201-198808

53430SUPPORT ASSY, HOOD

main53430-10010iKP3#196904-197410

main53451-10010iKP3#197410-198808

53510LOCK ASSY, HOOD

main53510-19025iKP3#..RHD196904-198808

main53510-19035iKP30,36..LHD196904-198808

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-10224iKP3#196904-198808

53520HOOK ASSY, HOOD LOCK

main53520-19035iKP3#196904-198808

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-10030iKP3#197201-198808

main53550-19025iKP3#196904-197112

main53560-10010iKP30,36..LHD197206-198808

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-10030iKP3#196904-197112

sub53630-10032

main53630-10031iKP3#197201-198808

53641CLAMP, HOOD LOCK CONTROL WIRE

main82711-10020iKP3#..RHD196904-197112

sub82711-10021

main90463-10335iKP3#..RHD197201-198808

9015960037

main90159-60037

9017908146

main90179-08146

9161140616

main91611-40616

9165140616

main91651-40616

9165140816

main91651-40816

9338616010

main93386-16010

19 parts on this diagram · 4 diagrams in section
