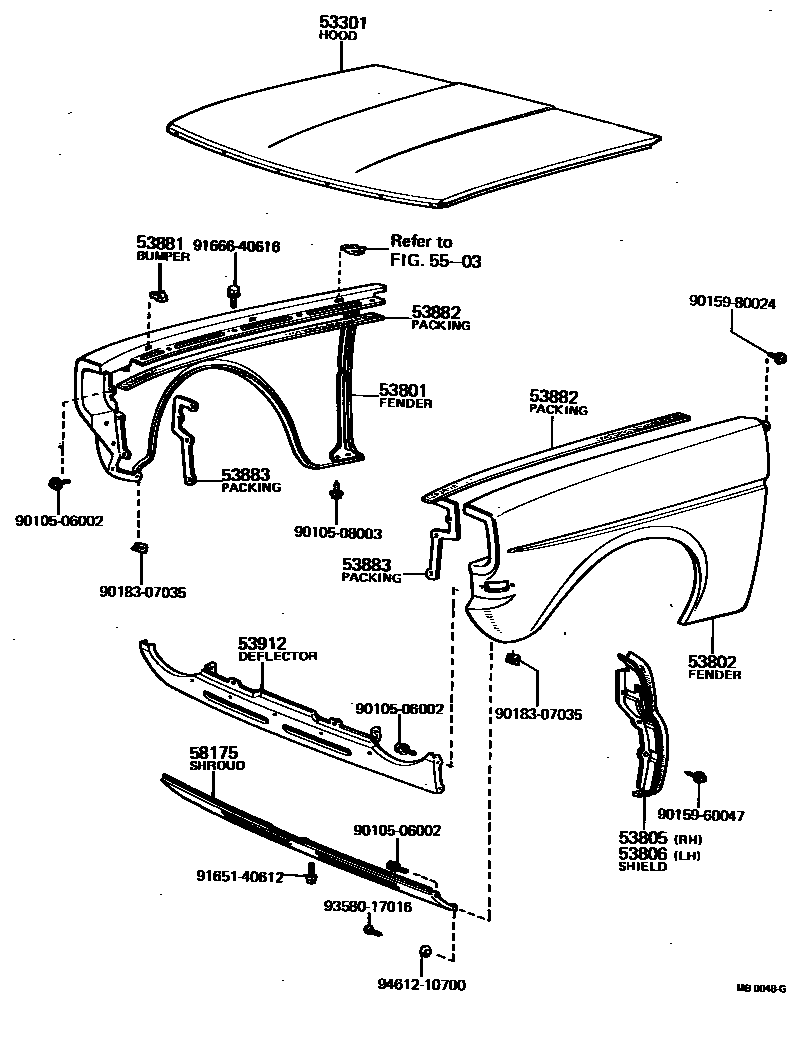

HOOD & FRONT FENDER
53801FENDER SUB-ASSY, FRONT RH
W/MIRROR HOLE
W/O MIRROR HOLE
W/MIRROR HOLE
W/O MIRROR HOLE
sub53801-10905
53802FENDER SUB-ASSY, FRONT LH
W/MIRROR HOLE
W/O MIRROR HOLE
W/MIRROR HOLE
W/O MIRROR HOLE
sub53802-10905
53805SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH
53806SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH
53881BUMPER, FENDER TO HOOD
53882PACKING, FRONT FENDER MAIN
53912DEFLECTOR, FRONT BUMPER STONE
5503
58175SHROUD, RADIATOR, LOWER
9010506002
main90105-06002
9010508003
main90105-08003
9015960047
main90159-60047
9015980024
main90159-80024
9018307035
main90183-07035
9165140612
main91651-40612
9166640616
main91666-40616
9358017016
main93580-17016
9461210700
main94612-10700
20 parts on this diagram · 2 diagrams in section
