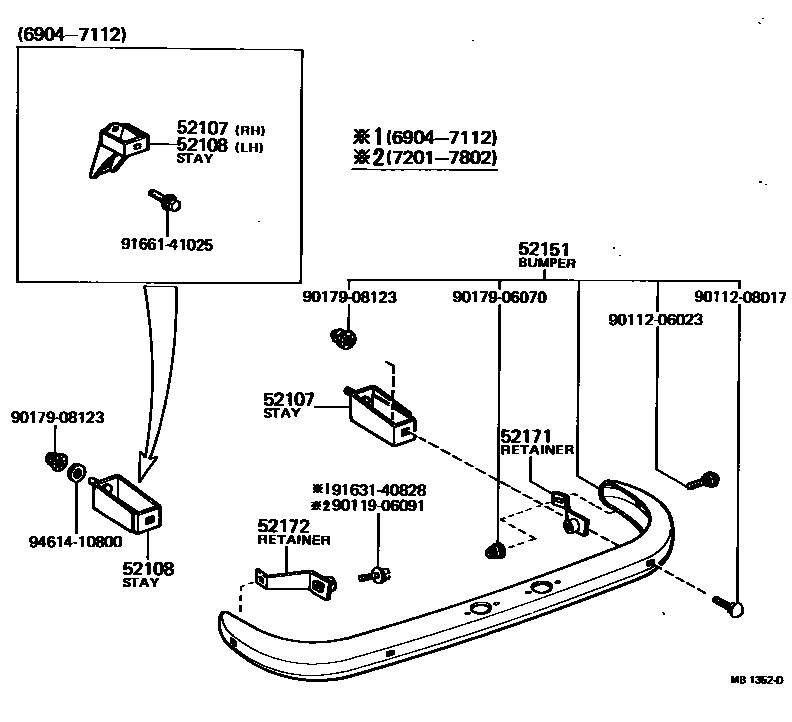

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52107STAY SUB-ASSY, REAR BUMPER, RH

main52013-10010iKP30196904-197112

main52181-10031iKP30197201-197802

main52181-11030iKP36..V196904-197809

52108STAY SUB-ASSY, REAR BUMPER, LH

main52014-10010iKP30196904-197112

main52182-10040iKP30197201-197802

main52182-11030iKP36..V196904-197809

52151BUMPER ASSY, REAR

main52151-19085iKP30196904-197802

sub52151-10010

main52151-19105iKP36..V196904-197809

sub52151-11030

52171RETAINER, REAR BUMPER SIDE, RH

main52017-10010iKP30196904-197112

main52171-10011iKP30197201-197802

main52171-11020iKP36..V196904-197809

52172RETAINER, REAR BUMPER SIDE, LH

main52018-10010iKP30196904-197112

main52171-11020iKP36..V196904-197809

main52172-10011iKP30197201-197802

9011206023

main90112-06023

9011208017

main90112-08017

9011906091

main90119-06091

9017906070

main90179-06070

9017908123

main90179-08123

9163140828

main91631-40828

9166141025

main91661-41025

9461410800

main94614-10800

13 parts on this diagram · 2 diagrams in section
