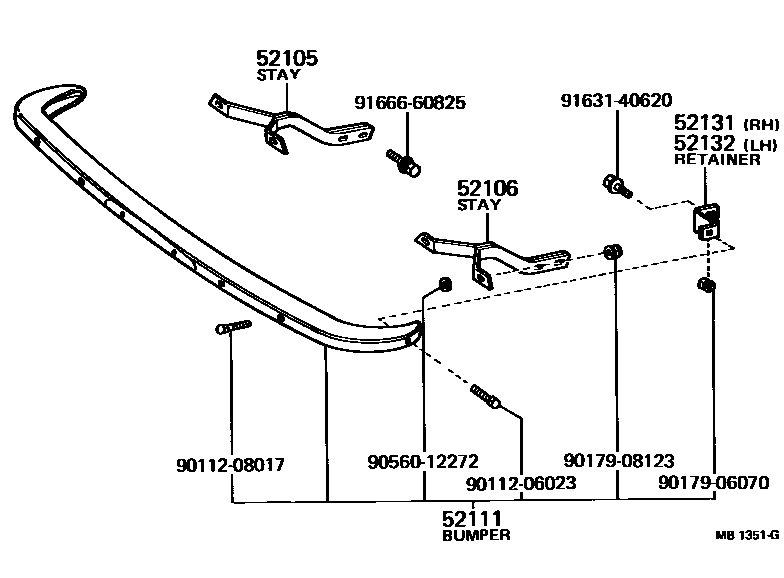

FRONT BUMPER & BUMPER STAY

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52011-10010iKP3#196904-197112

main52011-10011iKP3#197201-198808

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52012-10010iKP3#196904-197112

main52012-10011iKP3#197201-198808

52111BUMPER ASSY, FRONT

main52111-19065iKP3#..SED,V196904-197112

sub52111-10010

main52111-19066iKP37197201-198108

sub52111-10011

main52111-19125iKP3#..LHD197010-197112

EUROPE SPEC

sub52111-10030

main52111-96970iKP36..PIC196911-197112

sub52111-19065

main52111-96972iKP36..PIC197201-198808

sub52111-96402

52131RETAINER, FRONT BUMPER SIDE, RH

main52131-10020iKP3#197201-198808

52132RETAINER, FRONT BUMPER SIDE, LH

main52131-10020iKP3#197201-198808

9011206023

main90112-06023

9011208017

main90112-08017

9017906070

main90179-06070

9017908123

main90179-08123

9056012272

main90560-12272

9163140620

main91631-40620

9166660825

main91666-60825

12 parts on this diagram · 1 diagram in section
