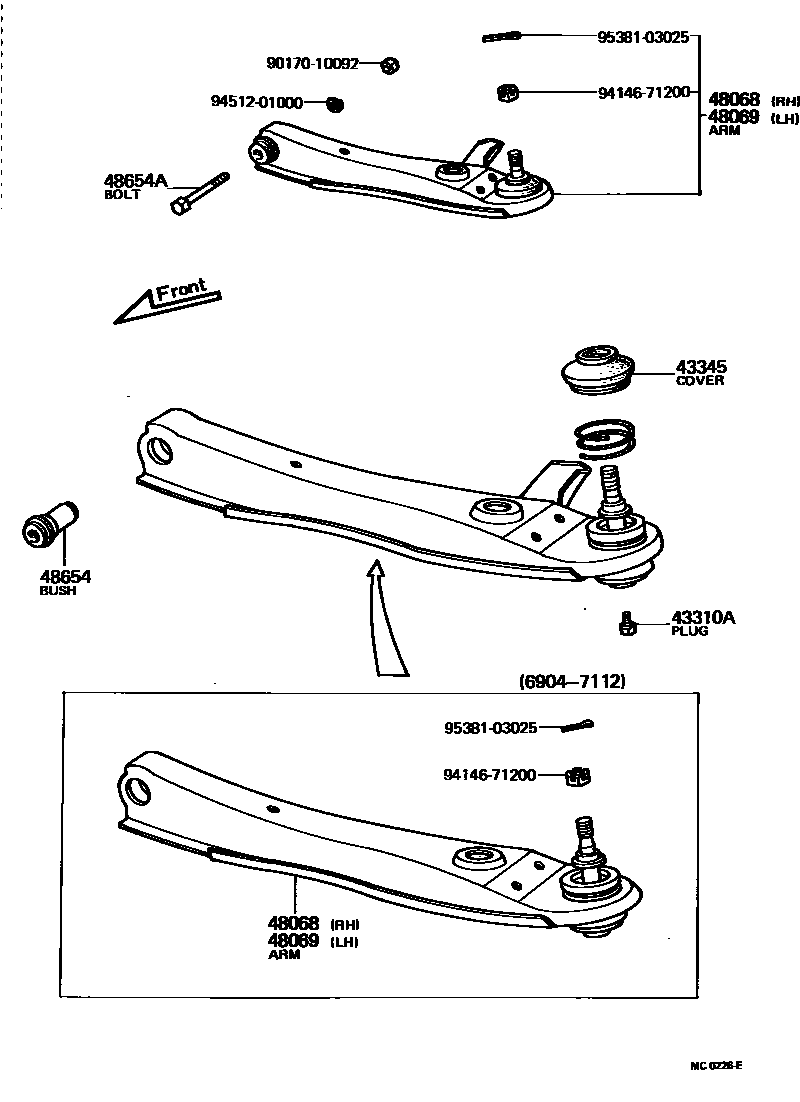

FRONT AXLE ARM & STEERING KNUCKLE

43310APLUG (FOR BALL JOINT)

main90345-06014iKP3#197201-198808

43345COVER, LOWER BALL JOINT DUST

main43345-12011iKP3#196904-196910

sub43345-12012

main43345-12012iKP3#196910-197112

main43345-12040iKP3#197201-198808

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-10010iKP3#196904-196910

sub48068-10011

main48068-10020iKP3#196910-197112

main48068-19025iKP3#197201-198808

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-10010iKP3#196904-196910

sub48069-10011

main48069-10020iKP3#196910-197112

main48069-19025iKP3#197201-198808

48654BUSH, LOWER ARM

main48654-10010iKP3#196904-198808

48654ABOLT, HEXAGON(FOR LOWER ARM)

main90101-10273iKP3#196904-198808

9017010092

main90170-10092

9414671200

main94146-71200

9451201000

main94512-01000

9538103025

main95381-03025

10 parts on this diagram · 1 diagram in section
