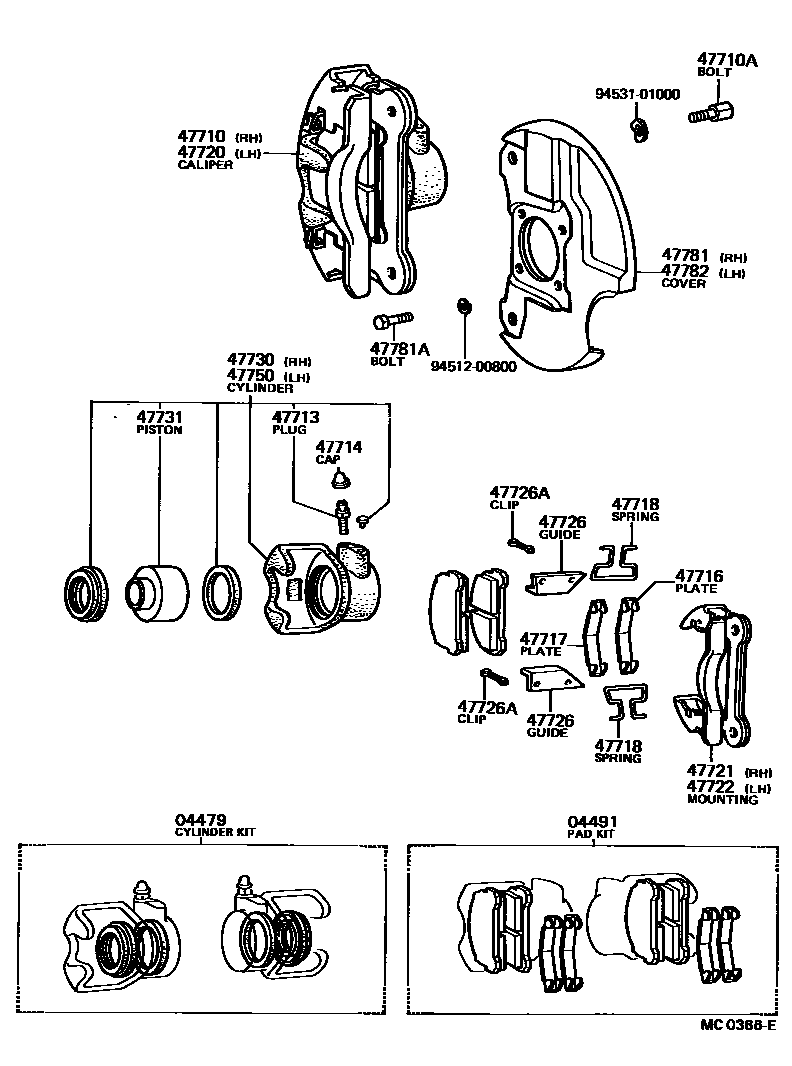

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0004 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-10010iKP30197201-197605

main04479-10020iKP30,36..SED,V197605-197809

main04479-12011iKP3#..SED,V196904-197107

main04479-12012iKP3#..SED,V197107-197112

sub04479-12011

04491PAD KIT, DISC BRAKE, FRONT

main04491-10010iKP30197112-197304

sub04491-10011

main04491-10011iKP30197304-197605

sub04465-10140

main04491-10020iKP30,36..SED,V197605-197809

sub04465-10120

main04491-12010iKP3#..SED,V196904-197111

sub04491-12011

main04491-12011iKP3#..SED,V197111-197112

sub04465-12380

47710CALIPER ASSY, DISC BRAKE, FRONT, RH

main47710-10010iKP30197201-197304

main47710-10011iKP3#..SED,V197304-197605

main47710-10020iKP30,36..SED,V197605-197809

main47710-12011iKP3#..SED,V196904-197002

sub47710-12012

main47710-12012iKP3#..SED,V197002-197112

sub47730-12012

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-10236iKP3#..SED,V196904-197112

sub90101-10007

main90101-10396iKP30197201-197809

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010iKP30,36196904-197809

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iKP3#196904-197809

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-12011iKP3#..SED,V196904-197112

sub47716-14020

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-12011iKP3#..SED,V196904-197112

sub47717-14020

47718SPRING, FRONT DISC BRAKE CYLINDER SUPPORT

main47718-12010iKP3#..SED,V196904-197112

sub47718-12020

47720CALIPER ASSY, DISC BRAKE, FRONT, LH

main47720-10010iKP30197201-197304

main47720-10011iKP3#..SED,V197304-197605

main47720-10020iKP30,36..SED,V197605-197809

main47720-12011iKP3#..SED,V196904-197002

sub47720-12012

main47720-12012iKP3#..SED,V197002-197112

sub47750-12012

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12011iKP3#..SED,V196904-197112

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-12011iKP3#..SED,V196904-197112

47726GUIDE, FRONT DISC BRAKE CYLINDER

main47726-12010iKP3#..SED,V196904-197112

47726ACLIP(FOR FRONT DISC BRAKE CYLINDER)

main90468-12017iKP3#..SED,V196904-197112

sub90468-12134

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12011iKP3#..SED,V196904-197002

sub47730-12012

main47730-12012iKP3#..SED,V197002-197112

47731PISTON, FRONT DISC BRAKE

main47731-10010iKP3#..SED,V197201-197605

OUTER

main47731-10020iKP30,36..SED,V197605-197809

OUTER

main47731-12010iKP3#..SED,V196904-197107

main47731-12011iKP3#..SED,V197107-197117

main47732-10010iKP30;KP36..V..LHD197201-197605

INNER

main47732-10020iKP30,36..SED,V197605-197809

INNER

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12011iKP3#..SED,V196904-197002

sub47750-12012

main47750-12012iKP3#..SED,V197002-197112

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-10010iKP30197201-197304

main47703-10011iKP30;KP36..V..LHD197304-197809

main47703-12012iKP3#..SED,V196904-197112

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-08235iKP3#..SED,V196904-197809

main90101-08395iKP30;KP36..V..LHD197201-197601

sub90101-08235

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-10010iKP30197201-197304

main47704-10011iKP30197304-197809

main47704-12012iKP3#..SED,V196904-197112

9451200800

main94512-00800

9453101000

main94531-01000

22 parts on this diagram · 4 diagrams in section
