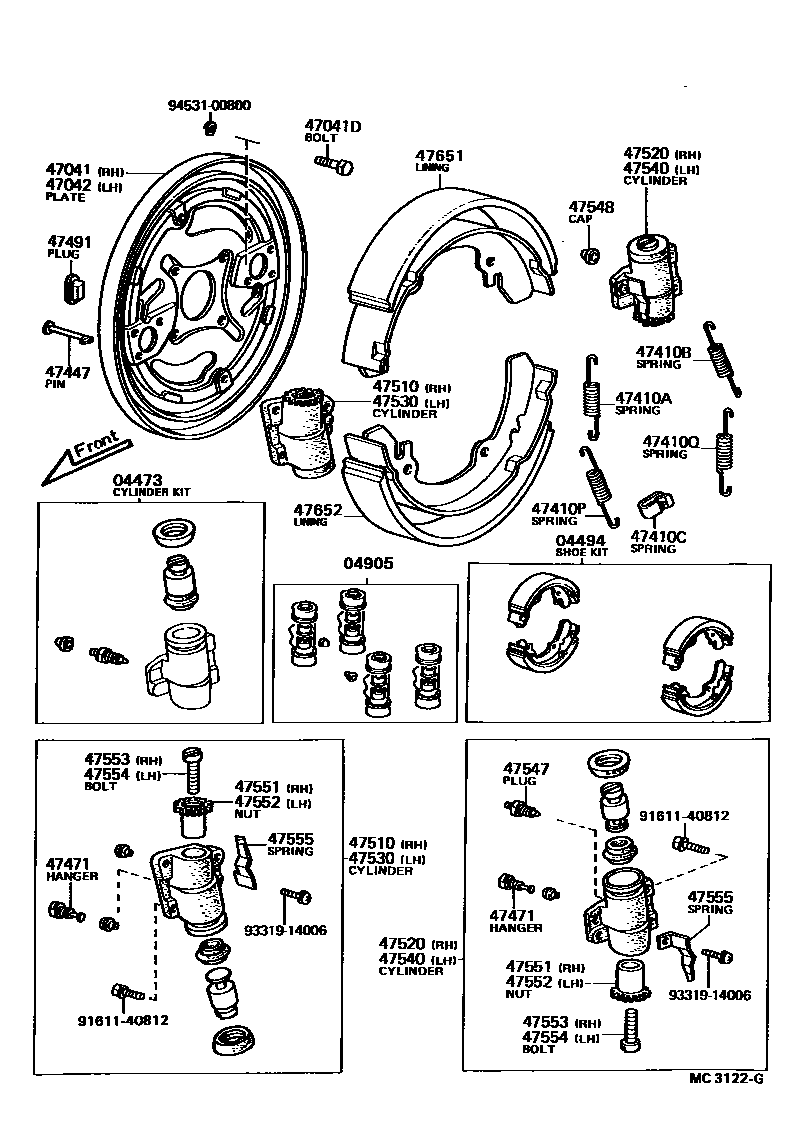

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04905CUP KIT, FRONT WHEEL CYLINDER
47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH
47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH
47410ASPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)
RH
LH
47410BSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)
47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)
47410PSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)
47410QSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)
RH
LH
47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)
47471HANGER, SHOE RETRACTING SPRING(FOR FRONT BRAKE)
47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)
47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)
47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)
47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)
47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)
DRUM BRAKE
47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)
47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)
LH SCREW
47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)
RH SCREW
47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)
LH SCREW
47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)
RH SCREW
47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)
RH
LH
47651LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER)
47652LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER)
9161140812
main91611-40812
9331914006
main93319-14006
9453100800
main94531-00800
30 parts on this diagram · 1 diagram in section
