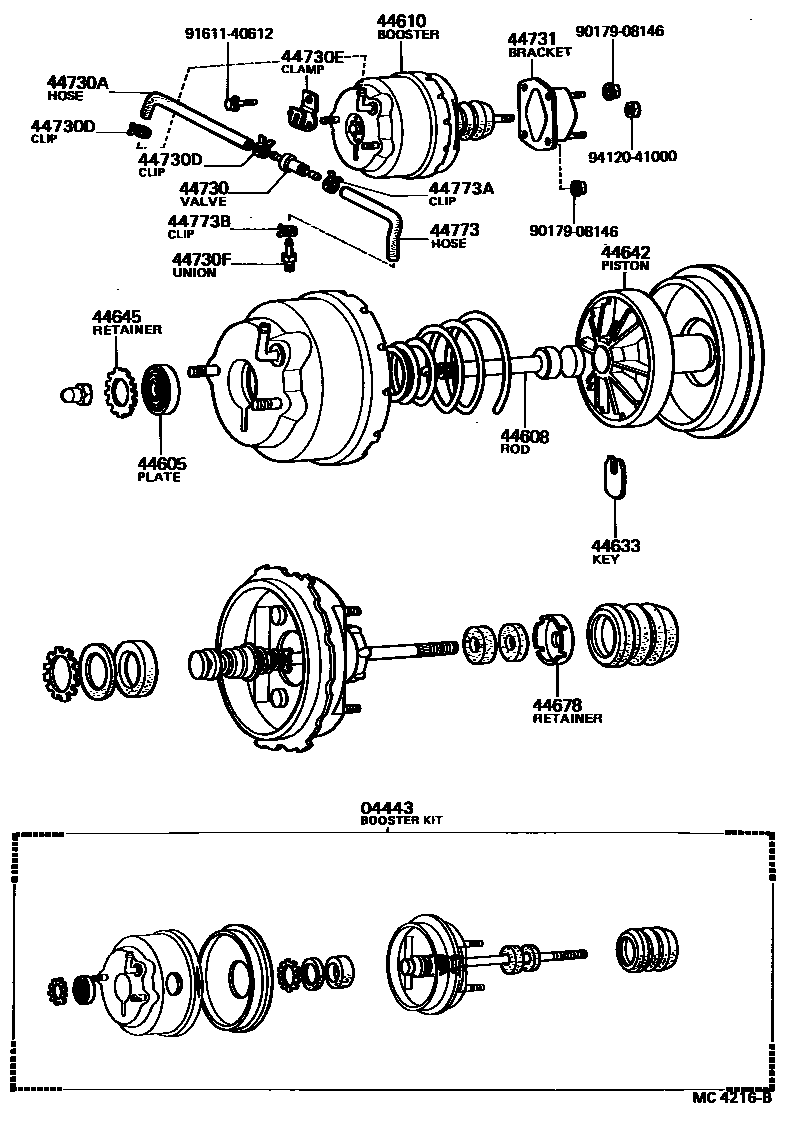

BRAKE BOOSTER & VACUUM TUBE
04443BOOSTER KIT, BRAKE
W/TANDEM M/C
W/TANDEM M/C
44605PLATE & SEAL SUB-ASSY, BOOSTER
sub44605-10080
44608PUSH ROD SUB-ASSY, BOOSTER
44610BOOSTER ASSY, BRAKE
W/TANDEM M/C
W/TANDEM M/C
44633KEY, BOOSTER VALVE PLUNGER
44642PISTON, BRAKE BOOSTER
44645RETAINER, BOOSTER PUSH ROD SEAL
44678RETAINER, BOOSTER AIR CLEANER
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730AHOSE, VACUUM, NO.1
44730DCLIP(FOR VACUUM HOSE, NO.1)
44730ECLAMP, VACUUM CHECK VALVE
44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)
44731BRACKET, BRAKE BOOSTER, FRONT
44773HOSE, VACUUM, NO.2
44773ACLIP, NO.1(FOR VACUUM HOSE, NO.2)
44773BCLIP, NO.2(FOR VACUUM HOSE, NO.2)
9017908146
main90179-08146
9161140612
main91611-40612
9412041000
main94120-41000
20 parts on this diagram · 1 diagram in section
