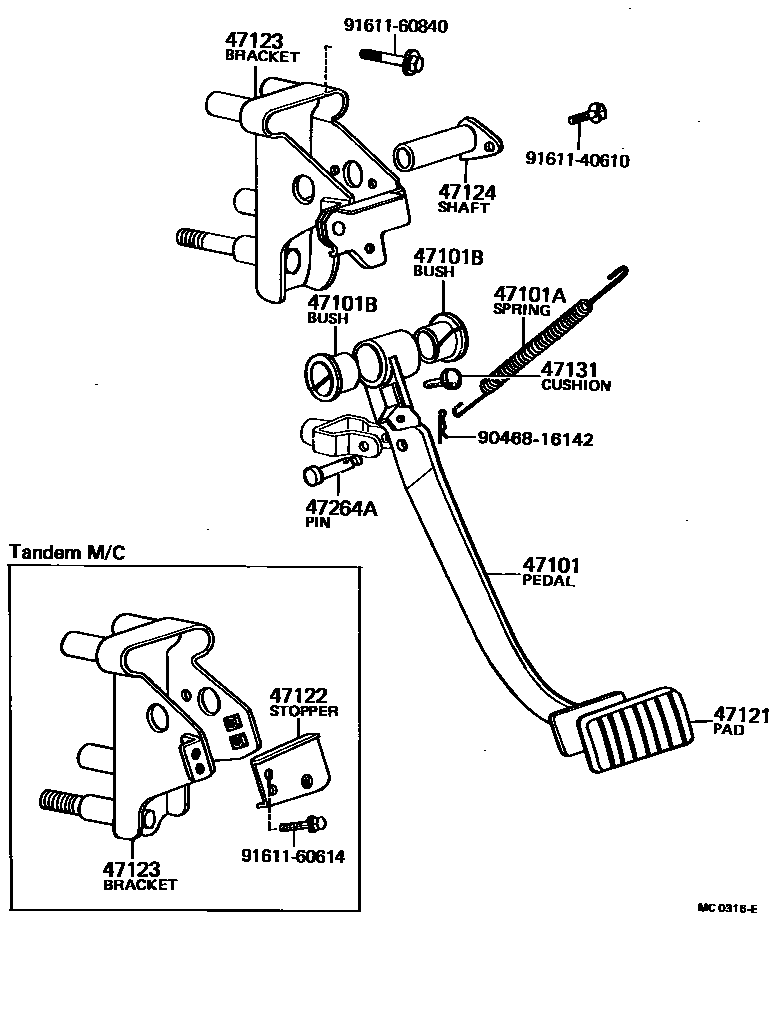

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1 0004 1

47101PEDAL SUB-ASSY, BRAKE

main47101-10050iKP3#..RHD196904-197009

sub47101-10051

sub47264-11010

main47101-10051iKP3#..RHD197009-197112

main47101-10052iKP3#..RHD197201-197309

sub47101-10053

main47101-10053iKP3#..RHD197309-198808

main47101-10060iKP3#..LHD196904-197009

sub47101-10061

sub47264-11010

main47101-10061iKP3#..LHD197009-197112

sub47101-10062

main47101-10062iKP30,36..LHD197201-198808

main47101-10081iKP30,36..(SED,V)..RHD197512-197809

W/TANDEM M/C & BOOSTER

main47101-10090iKP30..LHD197407-197511

W/TANDEM M/C

main47101-10100iKP30,36..(SED,V)..LHD197507-197809

W/TANDEM M/C

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-12024iKP3#..LHD196904-197112

WD=1.2,CW=30.5

main90506-12217iKP3#..RHD196904-197111

WD=1.2,CW=30.5

sub90506-14393

main90506-14393iKP3#..RHD197111-197112

main90506-16373iKP3#197201-197204

main90506-16373iKP30..LHD197407-197511

W/TANDEM M/C

main90506-16423iKP3#197204-198808

47101BBUSH(FOR BRAKE PEDAL)

main90386-13192iKP30..LHD197407-197511

W/TANDEM M/C

main90386-20056iKP3#196904-198808

47121PAD, BRAKE PEDAL

main31321-10020iKP3#196904-198808

47122STOPPER, BRAKE PEDAL

main47119-10010iKP30,36..(SED,V)..RHD197512-197809

W/TANDEM M/C & BOOSTER

47123BRACKET, BRAKE PEDAL

main31305-10010iKP3#..RHD196904-197112

main31305-10020iKP3#..LHD196904-197112

sub31305-10021

main31305-10021iKP30,36..LHD197201-198808

main31305-10030iKP30..RHD197407-197512

W/TANDEM M/C

main31305-10040iKP3#..RHD197201-198808

main31305-10050iKP30..LHD197407-197511

W/TANDEM M/C

main31305-10060iKP30,36..(SED,V)..LHD197507-197809

W/BOOSTER

main31305-10070iKP30,36..(SED,V)..RHD197512-197809

W/TANDEM M/C & BOOSTER

sub31305-10030

47124SHAFT, BRAKE PEDAL

main31041-10010iKP3#196904-198808

main31041-10020iKP30,36..(SED,V)..LHD197507-197809

W/BOOSTER

main90101-10003iKP30..LHD197407-197511

W/TANDEM M/C

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iKP3#196904-198808

47264APIN(FOR PUSH ROD)

main90240-08040iKP3#196904-197008

main90240-08062iKP3#197008-197011

main90240-08128iKP3#197011-197112

main90240-10002iKP30..LHD197407-197511

W/TANDEM M/C

main90249-08051iKP3#197201-198808

9046816142

main90468-16142

9161140610

main91611-40610

9161160614

main91611-60614

9161160840

main91611-60840

13 parts on this diagram · 4 diagrams in section
