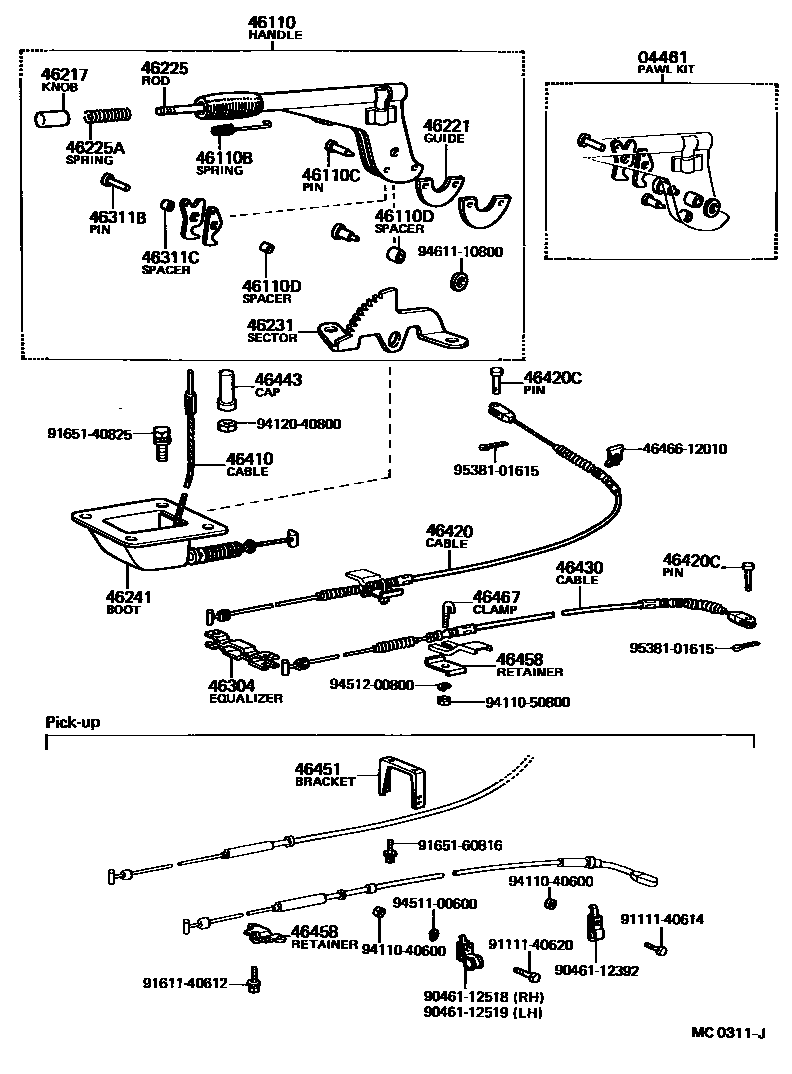

PARKING BRAKE & CABLE
04461PAWL KIT, PARKING BRAKE
46110BSPRING, TENSION(FOR PARKING BRAKE HANDLE)
46110CPIN(FOR PARKING BRAKE HANDLE SET)
46110DSPACER(FOR PARKING BRAKE HANDLE)
L=6.0,ID=6.7
L=6.2,ID=10
46217KNOB, PARKING BRAKE RELEASE ROD
46221GUIDE, PARKING BRAKE CABLE
46225ROD, PARKING BRAKE PAWL RELEASE
46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
46231SECTOR, PARKING BRAKE LEVER
46241BOOT, PARKING BRAKE LEVER
46304EQUALIZER SUB-ASSY, PARKING BRAKE
46311BPIN, PARKING BRAKE PAWL PIVOT
46311CSPACER(FOR PARKING BRAKE PAWL PIVOT)
46410CABLE ASSY, PARKING BRAKE, NO.1
L=297
46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)
46451BRACKET, CABLE SUPPORT
46467CLAMP, CABLE
4646612010
main46466-12010
9046112392
main90461-12392
9046112518
main90461-12518
9046112519
main90461-12519
9111140614
main91111-40614
9111140620
main91111-40620
9161140612
main91611-40612
9165140825
main91651-40825
9165160816
main91651-60816
9411040600
main94110-40600
9411050800
main94110-50800
9412040800
main94120-40800
9451100600
main94511-00600
9451200800
main94512-00800
9461110800
main94611-10800
9538101615
main95381-01615
38 parts on this diagram · 2 diagrams in section
