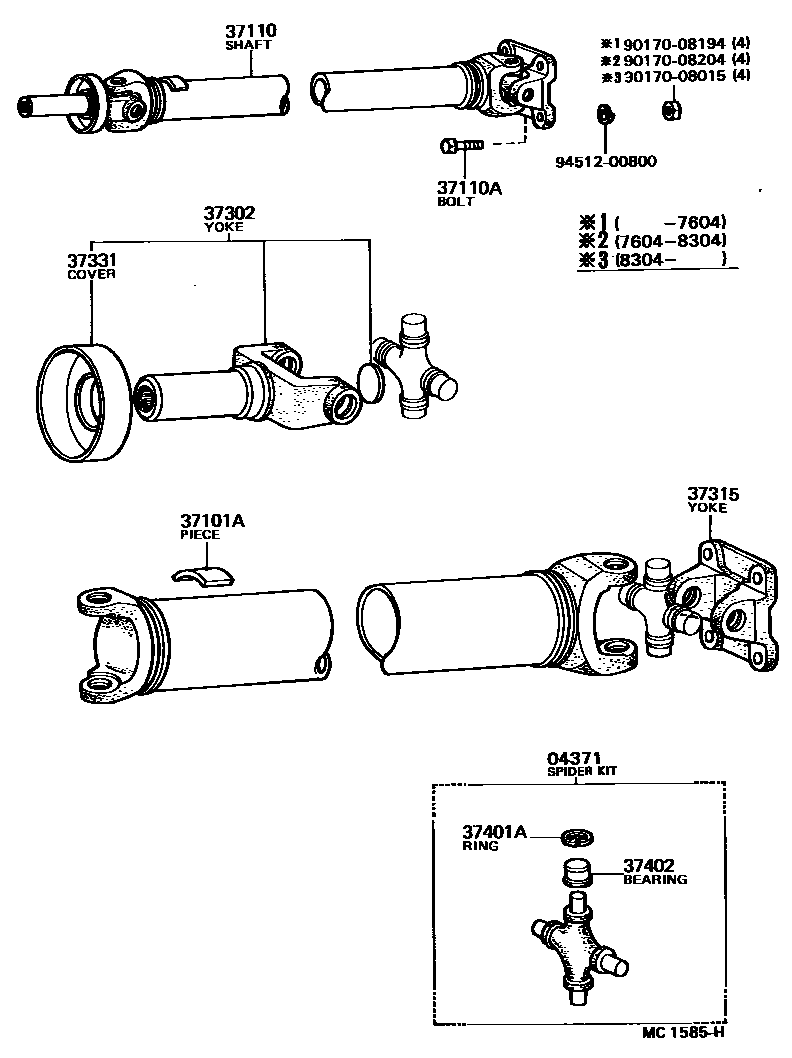

PROPELLER SHAFT & UNIVERSAL JOINT
04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
20G,T=1.2,20G
30G,T=1.2,30G
5G
15G
25G
10G,L=20.7,10G
20G,L=41.4,20G
30G,L=62.2,30G
2G,T=2.0,2G
4G,T=2.0,4G
6G,L=12.4,6G
8G,L=16.6,8G
12G,L=24.9,12G
14G,L=29.0,14G
16G,L=33.2,16G
18G,L=37.3,18G
22G,L=45.6,22G
24G,L=49.7,24G
26G,L=53.9,26G
28G,L=58.1,28G
37110SHAFT ASSY, PROPELLER
L=1185.5,OD=65
L=1185.5,OD=65
sub37110-10130
L=1305,OD=65
L=1305,OD=65
sub37110-10120
37110ABOLT (FOR PROPELLER SHAFT)
*8-1.25PX22-10,*8-1.25PX22-10
*8-1.25PX25-12,*8-1.25PX25-12
37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37331COVER, SLIDING SHAFT DUST
37401ARING, HOLE SNAP (FOR SPIDER BEARING)
T=1.2,T=1.20
T=1.25,T=1.25
T=1.30,T=1.30
37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
9017008015
main90170-08015
9017008194
main90170-08194
9017008204
main90170-08204
9451200800
main94512-00800
13 parts on this diagram · 1 diagram in section
