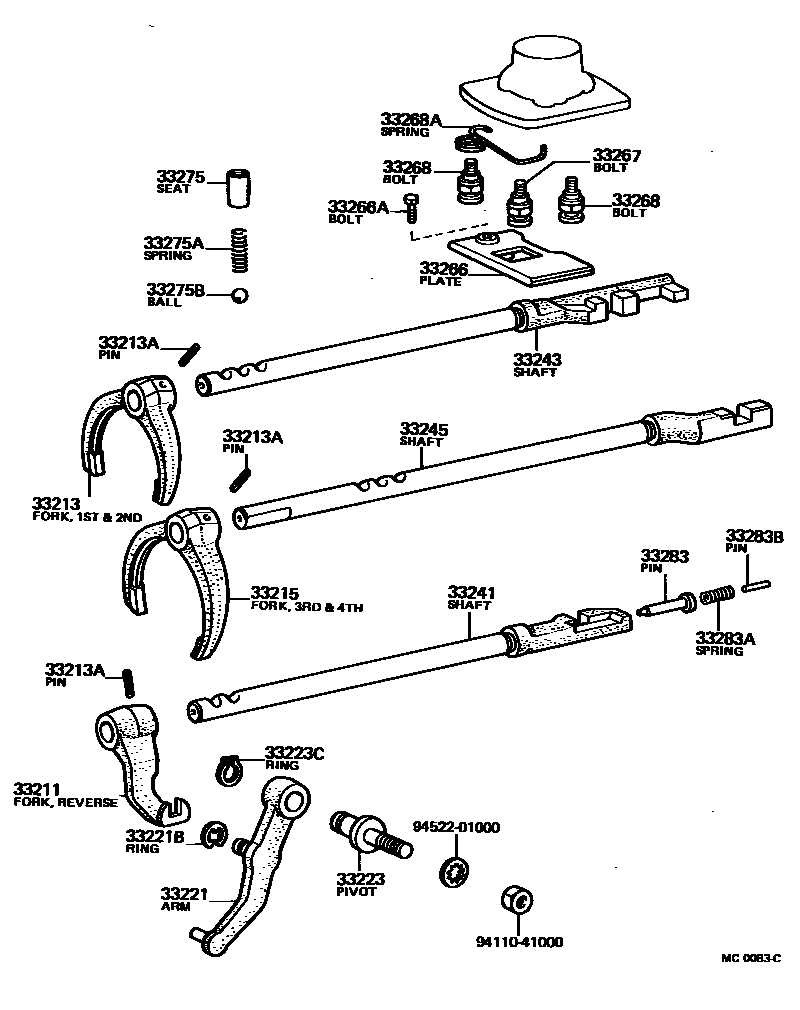

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1 0003 1

33211FORK, REVERSE SHIFT

main33211-12010iKP3#196904-198808

33213FORK, 1ST & 2ND SHIFT

main33213-12010iKP3#196904-198808

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001iKP3#196904-198808

33215FORK, 3RD & 4TH SHIFT

main33215-12010iKP3#196904-196910

sub33215-12011

main33215-12011iKP3#196910-198808

33221ARM, REVERSE SHIFT

main33221-12010iKP3#196904-198808

33221BRING, E(FOR REVERSE SHIFT ARM)

main90523-08011iKP3#196904-196909

sub96160-00800

main96160-00800iKP3#196909-198808

33223PIVOT, SHIFT ARM

main33223-12010iKP3#196904-198211

main33223-12060iKP36198211-198808

33223CRING, SHAFT SNAP(FOR SHIFT ARM PIVOT)

main90520-12072iKP3#196904-196908

sub96150-01300

main96150-01300iKP3#196908-198808

33241SHAFT, REVERSE SHIFT FORK

main33241-12010iKP3#196904-197004

main33241-12030iKP3#197004-198501

main33244-10020iKP36198501-198808

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-10012iKP36198501-198808

main33243-12010iKP3#196904-197004

main33243-12030iKP3#197004-198004

sub33243-12031

sub90501-16031

main33243-12031iKP3#198004-198501

33245SHAFT, 3RD & 4TH SHIFT FORK

main33243-10021iKP36198501-198808

main33245-12010iKP3#196904-197004

main33245-12030iKP3#197004-198110

sub33245-12031

main33245-12031iKP36198110-198501

33266PLATE, SHIFT INTERLOCK

main33266-12011iKP3#196904-197004

ISO

33266ABOLT (FOR SHIFT INTERLOCK PLATE)

main90101-05245iKP3#196904-197004

0.8P ISO

33267BOLT, SHIFT INTERLOCK PLATE SET, NO.1

main33267-12010iKP3#196904-197004

33268BOLT, SHIFT INTERLOCK PLATE SET, NO.2

main33268-12010iKP3#196904-197004

33268ASPRING, TORSION (FOR SHIFT INTERLOCK PLATE SET BOLT)

main90508-25108iKP3#196904-197004

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main33275-12010iKP3#196904-198808

L=17.5 OD=12

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-14237iKP3#198004-198808

L=16.1,WD=1.6,CW=6.25

main90501-16031iKP3#197903-198004

WD=1.6,CW=6.25

sub90501-14237

main90501-16288iKP3#196904-197903

WD=1.6,CW=6.25

sub90501-16031

33275BBALL, SHAFT DETENT

main90360-10003iKP3#196904-198808

OD=8

33283PIN, REVERSE RESTRICT, NO.1

main33283-12010iKP3#196904-197004

main33283-12020iKP3#197004-198501

33283ASPRING, COMPRESSION (FOR REVERSE RESTRICT PIN)

main90501-16371iKP3#196904-197004

main90501-16553iKP3#197004-198501

33283BPIN, STRAIGHT (FOR REVERSE RESTRICT PIN)

main90250-04119iKP3#196904-197004

main90250-05182iKP3#197004-198501

9411041000

main94110-41000

9452201000

main94522-01000

24 parts on this diagram · 3 diagrams in section
