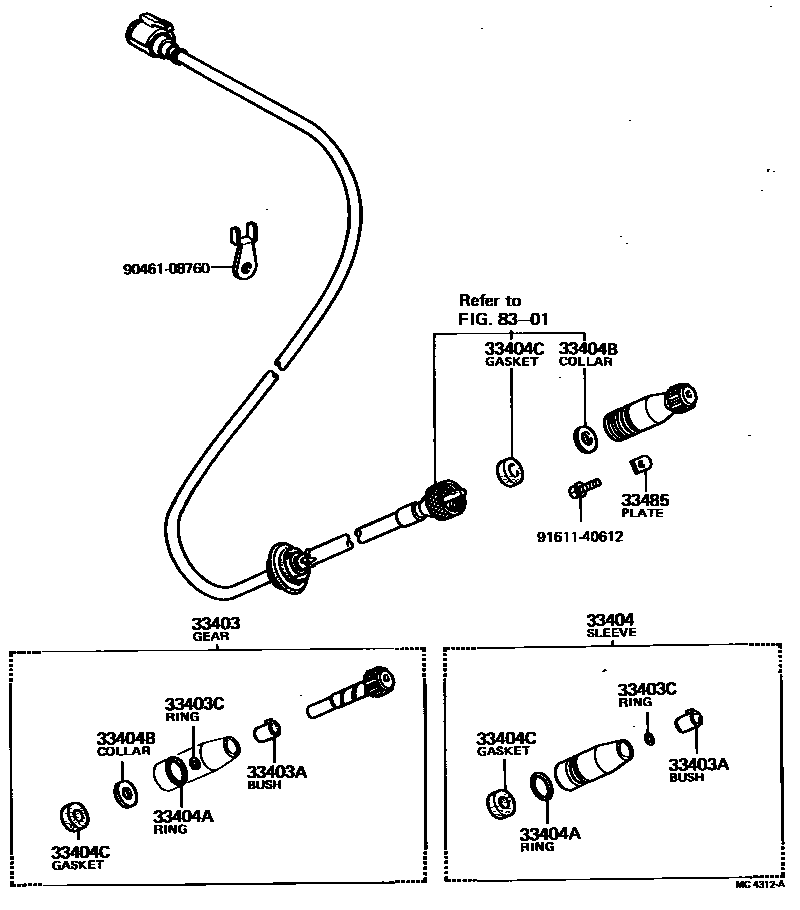

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1 0002 1

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19055iKP3#196904-197901

N=20

main33403-19065iKP30,37196904-197906

N=19

main33403-19085iKP30197610-197802

N=22

main33403-19135iKP37198006-198108

N=19,MARK 19:34,N=19

main33403-19145iKP36197901-198808

N=20

33403ABUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE)

main90386-09055iKP3#196904-197901

33403CRING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)

main90301-09010iKP3#197201-197901

sub90301-09017

main90301-09017iKP3#196904-197112

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-16010iKP3#197901-198808

main33404-19015iKP3#196904-197901

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-17011iKP3#196904-197103

ID=17

main96710-02018iKP3#197103-198209

ID=18

sub96711-19018

main96711-24018iKP36198209-198808

33404BCOLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (MTM)

main90201-07069iKP3#196904-197901

33404CGASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)

main90303-06017iKP3#196904-197901

T=6.0

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-10010iKP3#196904-197901

main33485-14010iKP3#198005-198808

main33485-16010iKP3#197901-198005

sub33485-14010

8301

9046108760

main90461-08760

9161140612

main91611-40612

11 parts on this diagram · 2 diagrams in section
