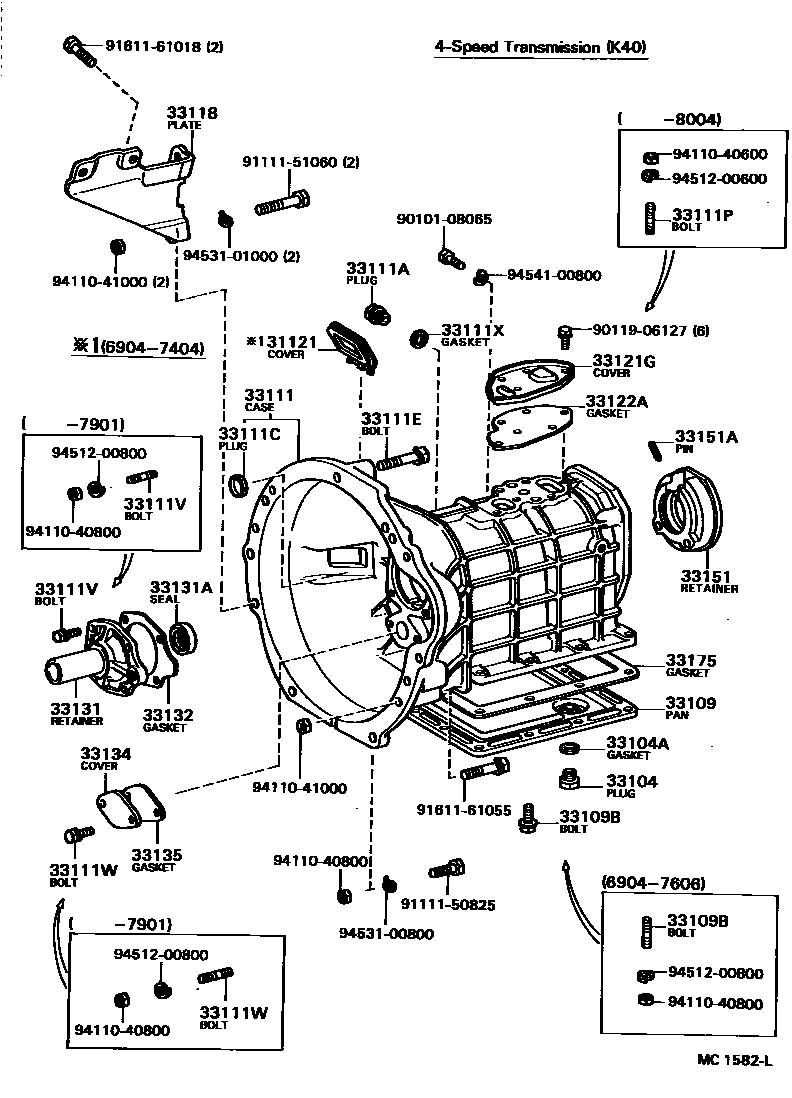

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1

31121COVER, CLUTCH HOUSING, NO.1

main31121-12010iKP3#196904-197404

33104PLUG SUB-ASSY, DRAIN(MTM)

main33104-30010iKP3#196904-196908

sub33104-30011

main90341-18057iKP3#196908-198808

33104AGASKET, DRAIN PLUG(MTM)

main12157-10010iKP3#196904-198109

main90430-18007iKP36198109-198408

sub90430-18008

main90430-18008iKP36198408-198808

33109PAN SUB-ASSY, TRANSMISSION OIL(MTM)

main33109-12010iKP3#196904-196908

sub33109-12011

main33109-12011iKP3#196908-198405

ISO

sub33109-12012

main33109-12012iKP36198405-198808

ISO

33109BBOLT(FOR MANUAL TRANSMISSION OIL PAN SETTING)

main90116-08039iKP3#196904-197606

L=22.5,S=10,5

main90119-08247iKP3#198004-198808

main91611-40814iKP3#197606-198004

L=22.5,S=10,5

sub91611-60814

33111CASE, MANUAL TRANSMISSION

main33101-12010iKP3#196904-196911

sub33101-12011

sub33215-12011

main33101-12011iKP3#196911-197004

sub33101-12020

main33101-12020iKP3#197004-197210

sub33101-12050

sub11355-24030

sub33118-12050

sub94612-10800

main33101-12030iKP3#197210-197404

sub33101-12040

sub11355-24030

sub33118-12050

sub94612-10800

main33101-12040iKP3#197404-197901

sub33101-12H00

main33101-12080iKP3#197901-197903

main33101-12110iKP3#197903-198110

sub33101-12111

sub33245-12031

main33101-12111iKP36198110-198501

main33111-10050iKP36198501-198808

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iKP3#196904-198209

main90341-18006iKP36198209-198808

33111CPLUG(FOR TRANSMISSION CASE)

main96411-01400iKP3#196904-197107

sub96411-11400

main96411-11400iKP3#197107-198110

sub96411-41400

33111EBOLT(FOR TRANSMISSION CASE & ENGINE SETTING)

main90119-12004iKP3#197708-198808

main91619-61265iKP3#196904-197708

33111PBOLT, STUD(FOR TRANSMISSION CASE COVER SETTING)

main90116-06125iKP3#196904-196905

L=17,S=8

sub90116-06200

main90116-06200iKP3#196905-198004

L=19,S=9

33111VBOLT(FOR FRONT BEARING RETAINER SETTING)

main90116-08009iKP3#196904-197901

L=33,S=13&13

main90119-08111iKP3#197903-197906

*8-1.25P,L=30

sub90119-08092

main90119-08220iKP3#197901-197903

*8-1.25PX20-15.1

sub90119-08235

main90119-08235iKP3#197906-198501

L=20

33111WBOLT(FOR COUNTERSHAFT COVER SETTING)

main90116-08057iKP3#196904-197901

L=28,S=13&13

main90119-08111iKP3#197903-197906

*8-1.25P,L=30

sub90119-08092

main90119-08220iKP3#197901-197903

*8-1.25PX20-15.1

sub90119-08235

main90119-08235iKP3#197906-198501

*8-1.25PX20-15.1

33111XGASKET, TRANSMISSION CASE PLUG

main12157-10010iKP3#196904-198109

main90430-18007iKP36198109-198408

sub90430-18008

main90430-18008iKP36198408-198808

33118PLATE, STIFFENER, RH(MTM)

main33118-10010iKP3#197404-198808

main33118-12010iKP3#196904-197404

33121GCOVER, MANUAL TRANSMISSION CASE

main33121-12010iKP3#196904-197901

main33121-12020iKP3#197901-198501

main33121-12031iKP36198501-198808

33122AGASKET, MANUAL TRANSMISSION CASE COVER

main33122-12010iKP3#196904-197901

main33122-12020iKP3#197901-198501

main33122-12031iKP36198501-198808

33131RETAINER, BEARING, FRONT(MTM)

main33131-12010iKP3#196904-197004

main33131-12020iKP3#197004-197404

main33131-12030iKP3#197404-197708

sub33131-12031

main33131-12031iKP3#197708-198501

main33131-12040iKP3#197903-197912

sub33131-12031

main33131-12050iKP36198501-198808

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90310-20026iKP3#196904-197004

main90311-25001iKP3#197004-197308

sub90311-25141

main90311-25003iKP3#197803-198808

main90311-25141iKP3#197308-197803

sub90311-25003

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-12010iKP3#196904-197004

T=0.5

main33132-12020iKP3#197004-197404

T=0.5

main33132-12030iKP3#197404-198501

T=0.5

main33132-12050iKP36198501-198808

T=0.5

main33133-12010iKP3#196904-197004

T=0.3

main33133-12020iKP3#197004-197404

T=0.3

main33133-12030iKP3#197404-198501

T=0.3

33134COVER, TRANSMISSION COUNTERSHAFT

main33134-12010iKP3#196904-198501

T=4.0

33135GASKET, COUNTERSHAFT COVER(MTM)

main33135-12010iKP3#196904-198501

T=0.5

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-12010iKP3#196904-198501

33151APIN, SLOTTED SPRING(FOR OUTPUT SHAFT REAR BEARING RETAINER)

main90254-05005iKP3#196904-198501

33175GASKET, MANUAL TRANSMISSION OIL PAN

main33175-12010iKP3#196904-198808

9010108065

main90101-08065

9011906127

main90119-06127

9111150825

main91111-50825

9111151060

main91111-51060

9161161018

main91611-61018

9161161055

main91611-61055

9411040600

main94110-40600

9411040800

main94110-40800

9411041000

main94110-41000

9451200600

main94512-00600

9451200800

main94512-00800

9453100800

main94531-00800

9453101000

main94531-01000

9454100800

main94541-00800

38 parts on this diagram · 2 diagrams in section
