TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

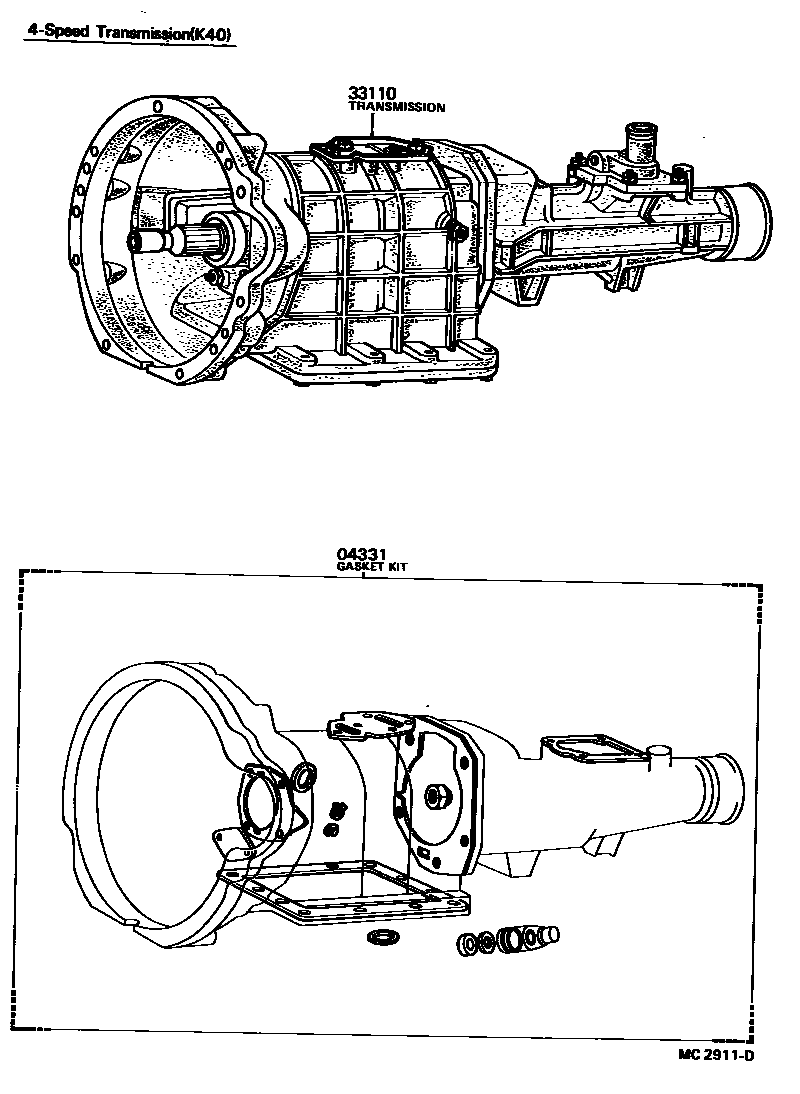

Parts diagram
04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL
main04331-12010i196904-197010
main04331-12030i197010-197404
main04331-12050i197404-197901
sub04331-12051
main04331-12051i197901-198501
main04331-12070i198501-198808
33110TRANSMISSION ASSY, MANUAL
main33020-10020i197404-197511
SMG R=20:5
sub33030-12010
sub33403-12010
sub33404-19015
sub33485-10010
sub91611-40612
main33020-12010i197004-197207
SMG R=19:5
sub33020-12011
sub37302-12011
main33020-12011i197207-197404
SMG R=19:5
sub33020-12120
sub11355-24030
sub33118-12050
sub94612-10800
main33020-12120i197404-197509
SMG R=19:5
sub33030-12010
sub33403-12020
sub33404-19015
sub33485-10010
sub91611-40612
main33020-13010i197004-197207
SMG R=20:5
sub33020-13011
sub37302-12011
main33020-13011i197207-197404
SMG R=20:5
sub33020-13030
sub11355-24030
sub33118-12050
sub33403-19055
sub94612-10800
main33030-10110i198009-198501
SMG=5
main33030-10230i198501-198808
SMG=5
main33030-12010i197509-197511
SMG R=19:5
main33030-12020i197511-197708
SMG R=19:5
sub33030-10200
sub11355-13011
sub13405-19045
sub90119-12004
sub91611-60612
sub94531-00800
main33030-12021i197708-198009
SMG=5
sub33030-10110
main33030-12030i197611-197708
SMG=6
sub33030-10070
sub11355-13011
sub13405-19045
sub90119-12004
sub91611-60612
sub94531-00800
main33030-12031i197708-197802
SMG=6
sub33030-10070
main33110-12903i196904-197004
SMG R=19:5
main33110-13901i196904-197004
SMG R=20:5
sub33110-13903
sub31231-12011

2 parts on this diagram · 2 diagrams in section
