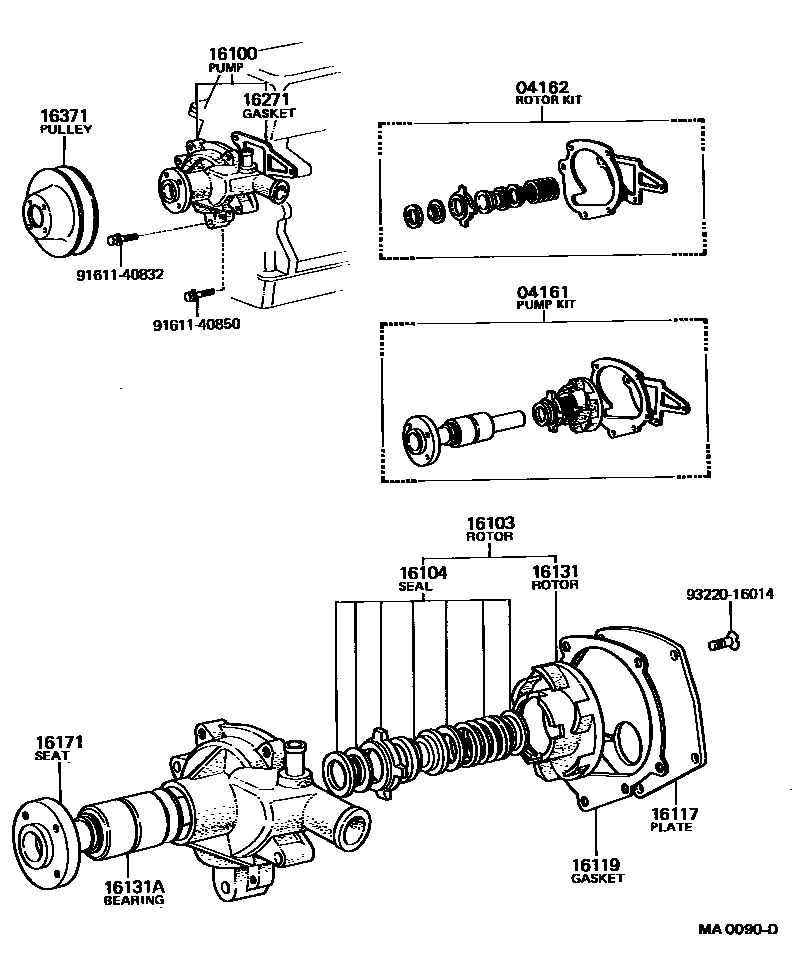

WATER PUMP

0001 1 0002 1

04161PUMP KIT, WATER

main04161-12010i2K..KP3#197201-197404

main04161-13010i2K,3KH..KP3#197707-198106

sub04161-13011

main04161-13011i2K,3KH..KP3#198106-198305

sub04161-13013

main04161-13012i2K..KP36198305-198808

sub04161-13050

main04161-22011i2K..KP3#196904-197006

main04161-22012i2K..KP3#197007-197112

main04161-24010i2K..KP3#197404-197507

sub04161-24011

main04161-24011i2K..KP3#197507-197707

04162ROTOR KIT, WATER PUMP

main04162-13010i2K,3KH..KP3#197707-197910

sub04162-13011

main04162-13011i2K,3KH..KP3#197910-198106

sub04162-13012

main04162-13012i2K,3KH..KP3#198106-198305

sub04162-13013

main04162-22010i2K..KP3#196904-197007

main04162-22011i2K..KP3#197007-197507

sub04162-22012

main04162-22012i2K..KP3#197507-197707

16100PUMP ASSY, ENGINE WATER

main16100-29016i2K..KP3#196904-197404

sub16100-29017

main16100-29027i2K..KP3#197404-197707

sub16100-29028

main16100-29028i2K,3KH..KP3#197707-198305

sub16100-29065

main16100-29029i2K..KP36198305-198403

sub16100-29075

main16100-29065i2K..KP36198403-198808

sub16100-29066

16103ROTOR SUB-ASSY, WATER PUMP

main16103-22010i2K..KP3#196904-197007

16104SEAL SET, WATER PUMP

main16104-15020i2K..KP36198311-198808

main16104-22010i2K..KP3#197007-197507

main16104-30011i2K..KP3#196904-197007

sub16104-41040

main16104-41110i2K,3KH..KP3#197507-197908

sub16104-41111

main16104-41111i2K..KP36197908-198305

sub16104-15020

main16104-41112i2K..KP36198305-198311

sub16104-15020

16117PLATE, WATER PUMP

main16117-13010i2K,3KH..KP3#197707-198305

main16117-13011i2K..KP36198305-198808

main16117-22011i2K..KP3#196904-197707

16119GASKET, WATER PUMP BODY

main16124-22010i2K,3KH..KP3#196904-198106

sub16124-22011

main16124-22011i2K,3KH..KP3#198106-198305

sub16124-24015

main16124-22012i2K..KP36198305-198808

sub16124-22013

16131ROTOR, WATER PUMP

main16131-13010i2K,3KH..KP3#197707-198808

sub16131-13011

main16131-22010i2K..KP3#196904-196911

sub16131-22011

main16131-22011i2K..KP3#196911-197507

main16131-22012i2K..KP3#197507-197603

sub16131-24030

main16131-24030i2K..KP3#197603-197707

16131ABEARING, WATER PUMP

main90369-30002i2K..KP3#196904-197404

main90369-30063i2K,3KH..KP3#197404-198808

16171SEAT, WATER PUMP PULLEY

main16171-22011i2K..KP3#196904-197404

main16171-24030i2K..KP3#197404-197507

main16171-24031i2K,3KH..KP3#197507-198808

16271GASKET, WATER PUMP

main16271-13020i2K,3KH..KP3#197812-198106

sub16271-13021

main16271-13021i2K,3KH..KP3#198106-198808

sub16271-13030

main16271-22010i2K,3KH..KP3#196904-197812

sub16271-13020

16371PULLEY, FAN

main16371-22010i2K..KP3#196904-197404

main16371-24050i2K,3KH..KP3#197404-198808

9161140832

main91611-40832

9161140850

main91611-40850

9322016014

main93220-16014

15 parts on this diagram · 2 diagrams in section
