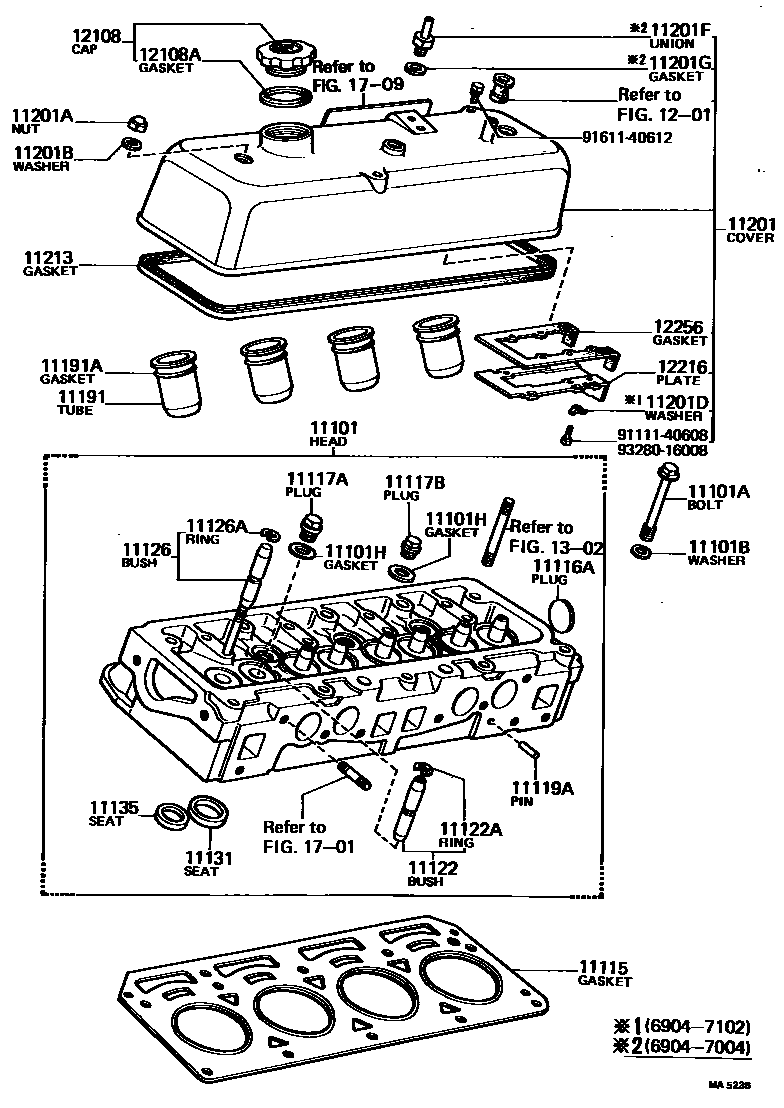

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101HGASKET(FOR CYLINDER HEAD SCREW PLUG)
OD=21,ID=15
OD=25,ID=18
11116APLUG, TIGHT, NO.1
OD=40
11117APLUG, W/HEAD TAPER SCREW, NO.1
L=11,OD=18,P=1.5
11117BPLUG, W/HEAD TAPER SCREW, NO.2
L=11,15-1.5P
11119APIN, STRAIGHT, NO.1
L=18,OD=8,L=18,OD=8
11122BUSH, INTAKE VALVE GUIDE
STD,STD
O/S 0.05,O/S 0.05
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126BUSH, EXHAUST VALVE GUIDE
STD,STD
O/S 0.05,O/S 0.05
STD
O/S 0.05
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11131SEAT, INTAKE VALVE
STD
STD,STD
STD,STD
O/S 0.03
O/S 0.03,O/S 0.03
O/S 0.03,O/S 0.03
11135SEAT, EXHAUST VALVE
STD,STD
STD
STD,STD
O/S 0.03,O/S 0.03
O/S 0.03
O/S 0.03,O/S 0.03
11191TUBE, SPARK PLUG
11191AGASKET(FOR SPARK PLUG TUBE)
sub90430-31003
11201COVER SUB-ASSY, CYLINDER HEAD
W/PCV
W/O PCV
W/PCV
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11201DWASHER, LOCK(FOR CYLINDER HEAD COVER)
11201FUNION(FOR POSITIVE CRANKCASE VENTILATION)
sub90404-14156
11201GGASKET(FOR POSITIVE CRANKCASE VENTILATION)
11213GASKET, CYLINDER HEAD COVER
1201
12108AGASKET(FOR OIL FILLER CAP)
12216PLATE, VENTILATION BAFFLE
12256GASKET, VENTILATION BAFFLE
1302
1701
1709
9111140608
main91111-40608
9161140612
main91611-40612
9328016008
main93280-16008
35 parts on this diagram · 3 diagrams in section
