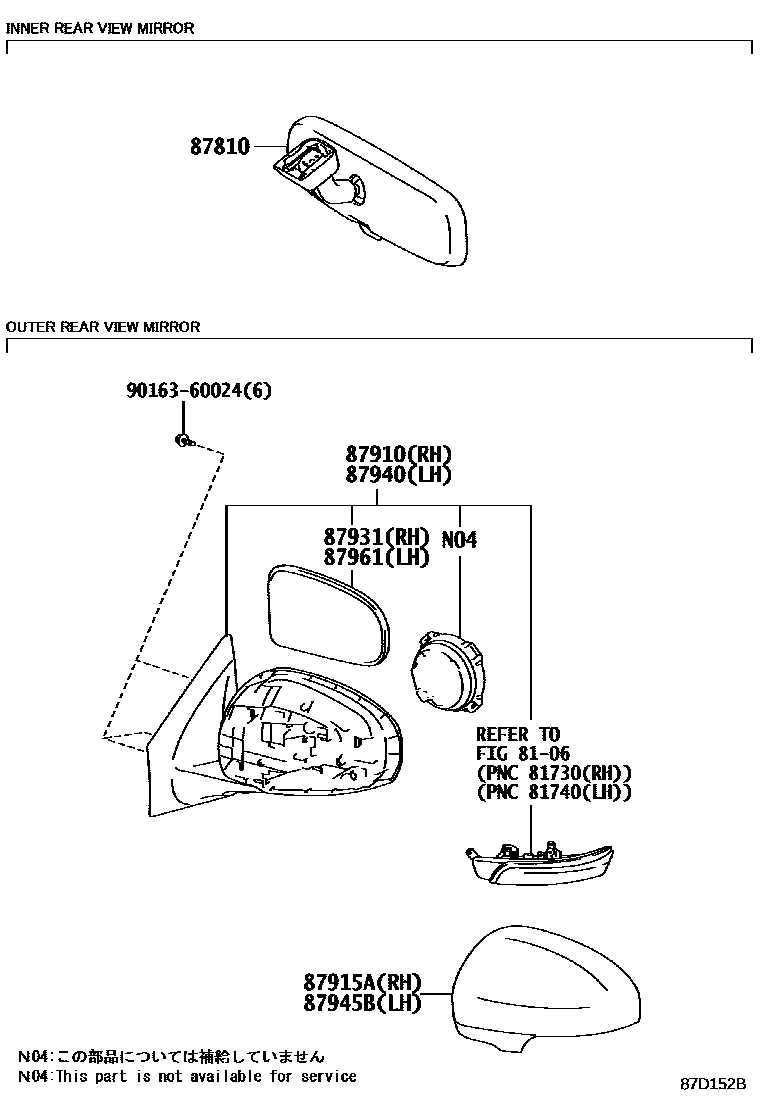

MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
87915ACOVER, OUTER MIRROR, RH
BLACK MC.,2KR ,2KS ,2KT ,2KU ,2KV ,2KW
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
87945BCOVER, OUTER MIRROR, LH
BLACK MC.,2KR ,2KS ,2KT ,2KU ,2KV ,2KW
87961MIRROR OUTER, LH
9016360024
main90163-60024
9 parts on this diagram · 1 diagram in section
