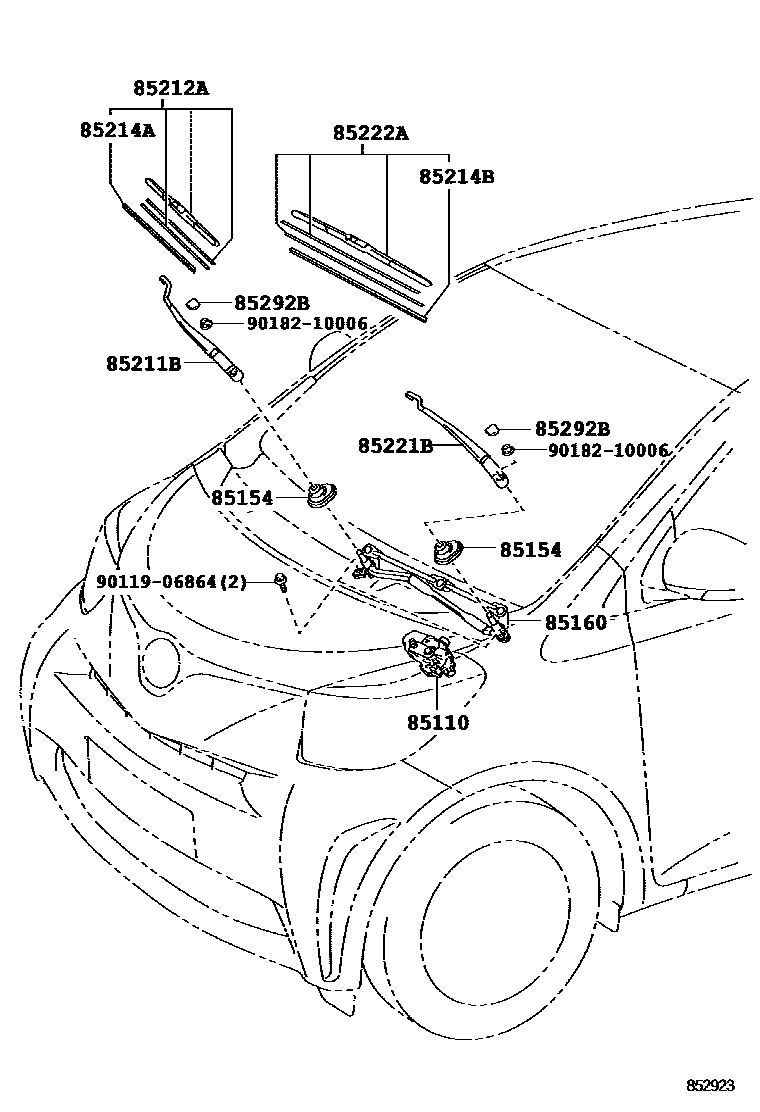

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-74020iKPJ10201209

85154PACKING, FRONT WIPER SHAFT

main85154-74010×2iKPJ10201209

85160LINK ASSY, WINDSHIELD WIPER

main85150-74020iKPJ10201209

85211BARM, FRONT WIPER, RH

main85211-74030iKPJ10201209

85212ABLADE, FR WIPER, RH

main85212-74010iKPJ10201209

85214ARUBBER, WIPER, RH

main85214-30400iKPJ10201209

sub85214-33180

85214BRUBBER, WIPER, LH

main85214-53080iKPJ10201209

85221BARM, FRONT WIPER, LH

main85221-74020iKPJ10201209

85222ABLADE, FR WIPER, LH

main85212-48130iKPJ10201209

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iKPJ10201209

9011906864

main90119-06864

9018210006

main90182-10006

12 parts on this diagram · 1 diagram in section
