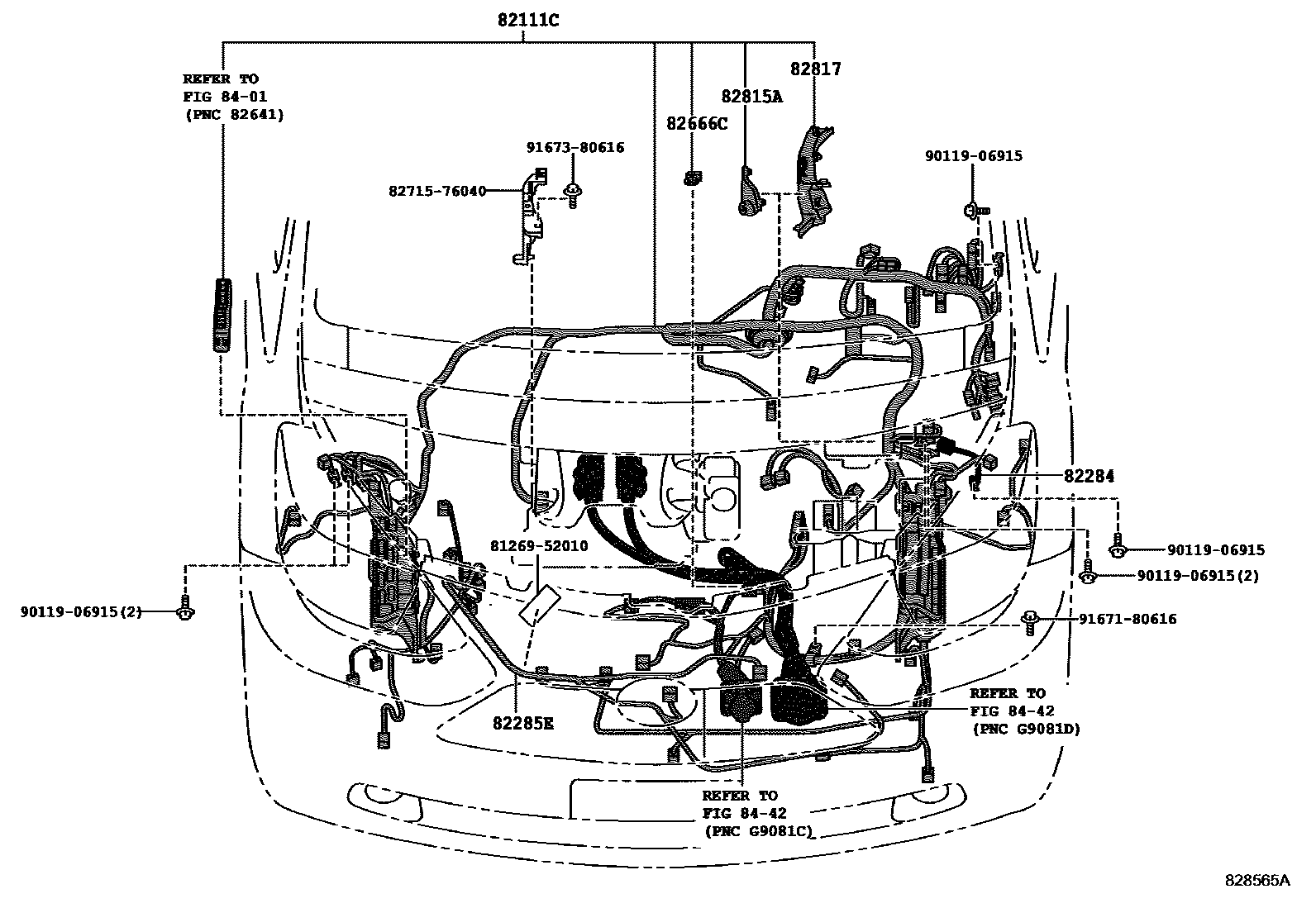

82111CWIRE, FRONT COMPARTMENT, MAIN

main82111-74600supersedes 82111-74620iKPJ10201209-201212

CHARGER-AC + DC

82284WIRE, EARTH

main82284-74010iKPJ10201209

82285EWIRE, ILLUMINATION

main82285-74010iKPJ10201209-201212

82666CHOLDER, CONNECTOR NO.4

main82666-60C10iKPJ10201209

CHARGER-AC + DC

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-74010iKPJ10201209

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-74150iKPJ10201209

8401

8442

8126952010SWITCH, MAP LAMP

main81269-52010

8271576040BRACKET,WIRING HARNESS CLAMP

main82715-76040

9011906915

main90119-06915

9167180616

main91671-80616

9167380616

main91673-80616

13 parts on this diagram · 7 diagrams in section
