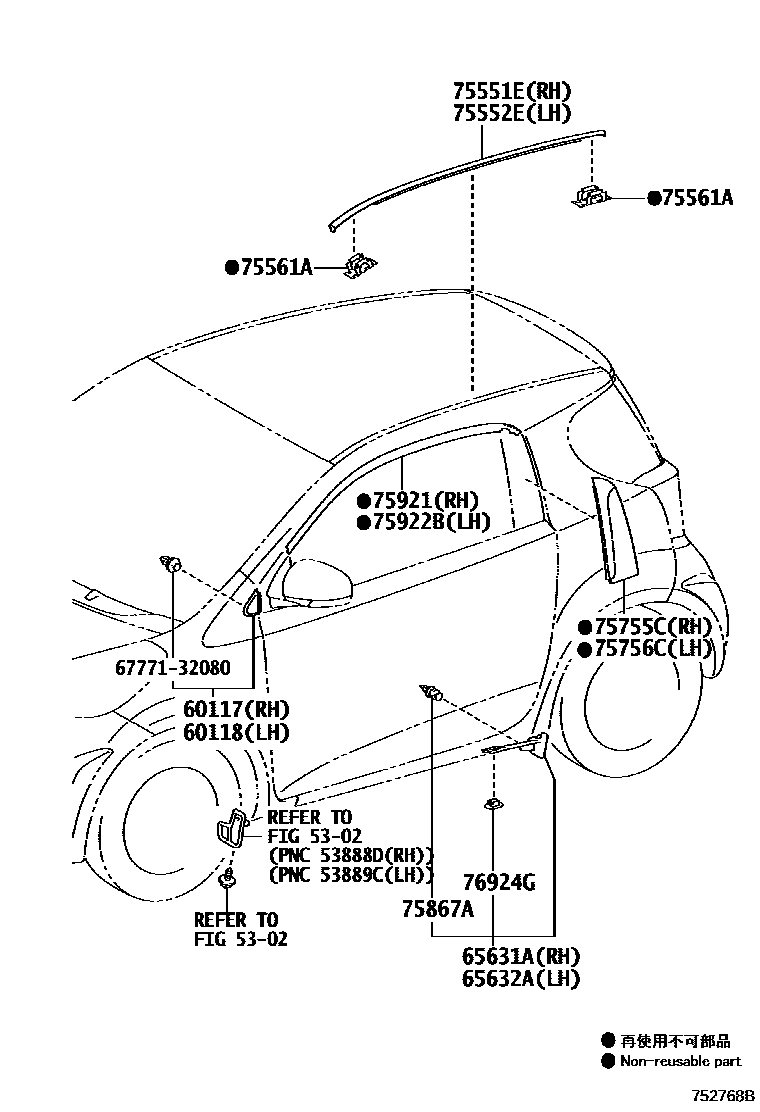

SIDE MOULDING

5302

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-74010iKPJ10201209-201212

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-74010iKPJ10201209

65631APLATE, REAR WHEEL HOUSE, FRONT RH

main65631-74010iKPJ10201209

65632APLATE, REAR WHEEL HOUSE, FRONT LH

main65632-74010iKPJ10201209

75551EMOULDING, ROOF DRIP SIDE FINISH, RH

main75551-74010iKPJ10201209

75552EMOULDING, ROOF DRIP SIDE FINISH, LH

main75552-74010iKPJ10201209

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-52040iKPJ10201209

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-74010iKPJ10201209-201212

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-74010iKPJ10201209-201212

75867ACLIP, ROCKER PANEL MOULDING

main71769-32011iKPJ10201209

75921TAPE, BLACK OUT, NO.1 RH

main75921-74010iKPJ10201209-201212

75922BTAPE, BLACK OUT, NO.1 LH

main75922-74010iKPJ10201209-201212

76924GRETAINER, ROCKER PANEL MOULDING

main76924-12030iKPJ10201209

6777132080WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32080

15 parts on this diagram · 1 diagram in section
