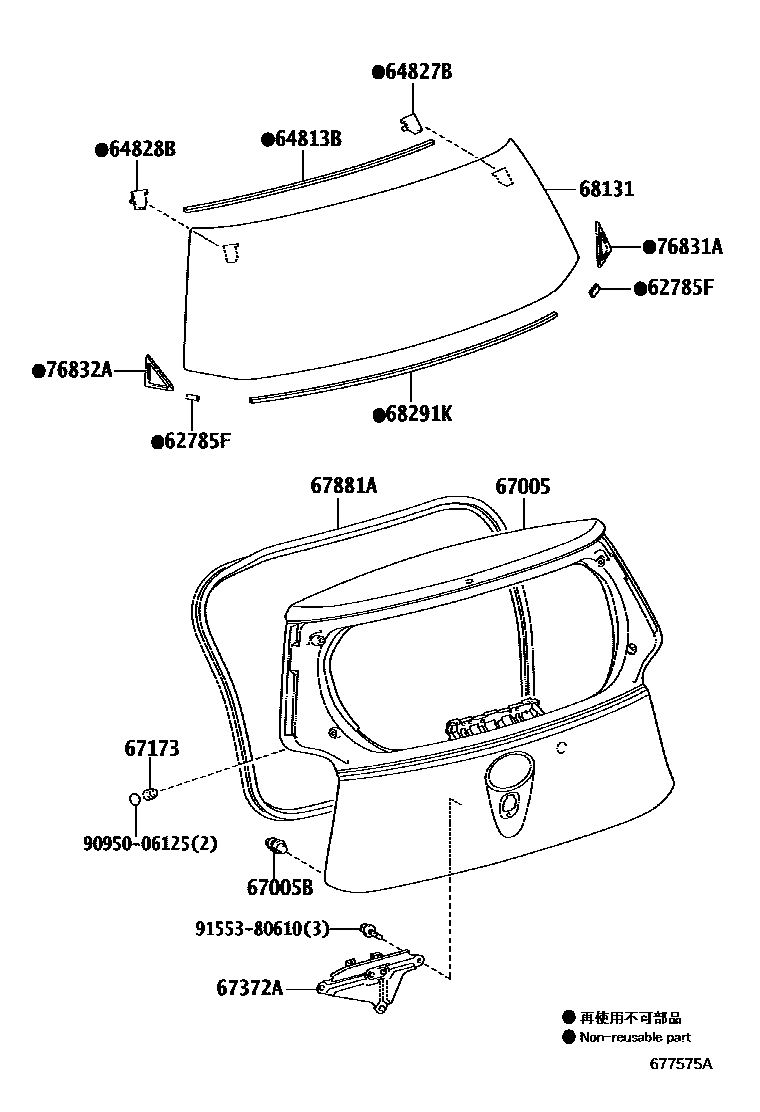

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

62785FSPACER, BACK DOOR GLASS

main62785-12050iKPJ10201209

64813BDAM, BACK WINDOW GLASS ADHESIVE

main64813-74010iKPJ10201209

sub56117-74010

64827BCLIP, BACK WINDOW GLASS, RH

main64827-74010iKPJ10201209

64828BCLIP, BACK WINDOW GLASS, LH

main64828-74010iKPJ10201209

67005PANEL SUB-ASSY, BACK DOOR

main67005-74010iKPJ10201209-201212

sub67005-74020

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142iKPJ10201209

67173CUSHION, BACK DOOR

main90541-09144iKPJ10201209

67372AWEIGHT, BACK DOOR

main67372-74020iKPJ10201209

67881AWEATHERSTRIP, BACK DOOR

main67881-74010iKPJ10201209

68131GLASS, BACK DOOR

main68131-74010iKPJ10201209

*TEM,T=2.8,C.GREEN

68291KDAM KIT, BACK WINDOW GLASS

main64814-74010iKPJ10201209

sub56117-74010

76831ACOVER, BACK DOOR FINISH PANEL, RH

main76831-74010iKPJ10201209

76832ACOVER, BACK DOOR FINISH PANEL, LH

main76831-74010iKPJ10201209

9095006125

main90950-06125

9155380610

main91553-80610

15 parts on this diagram · 2 diagrams in section
