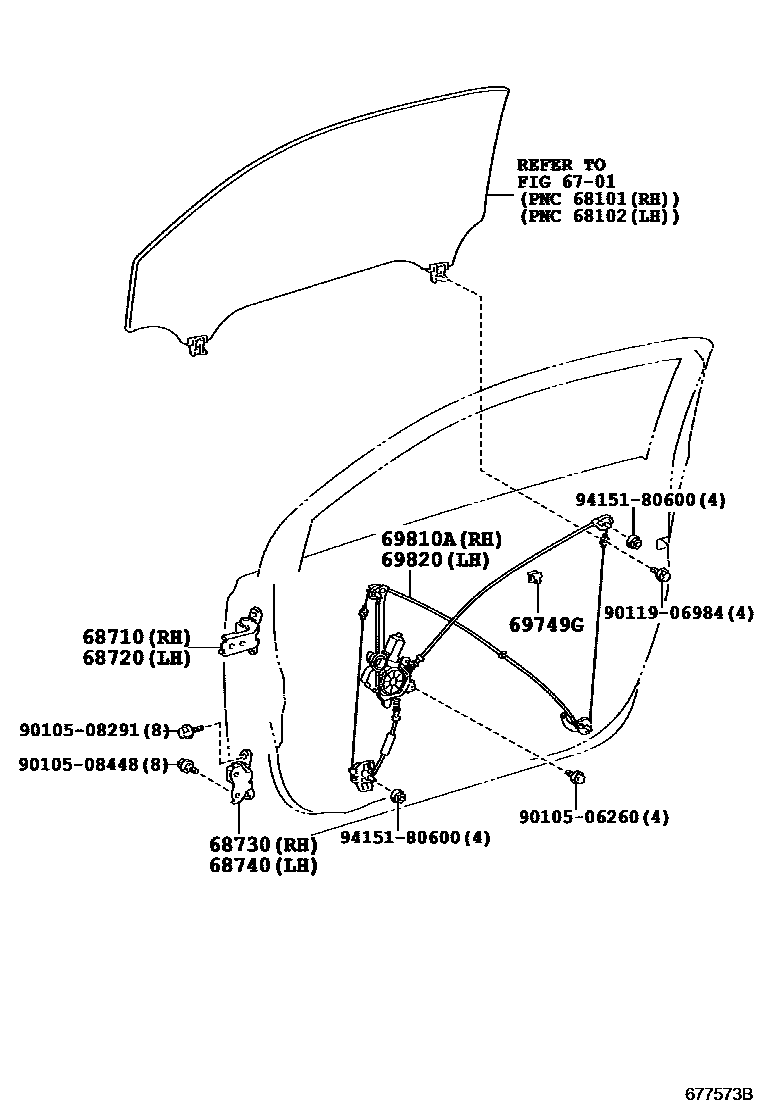

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iKPJ10201209-201212

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iKPJ10201209

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-74011iKPJ10201209

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-74011iKPJ10201209

69749GCLAMP(FOR FRONT DOOR WINDOW REGULATOR)

main69749-74010iKPJ10201209

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-74020iKPJ10201209-201212

sub69810-74021

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-74010iKPJ10201209-201212

sub69820-74011

9010506260

main90105-06260

9010508291

main90105-08291

9010508448

main90105-08448

9011906984

main90119-06984

9415180600

main94151-80600

13 parts on this diagram · 1 diagram in section
