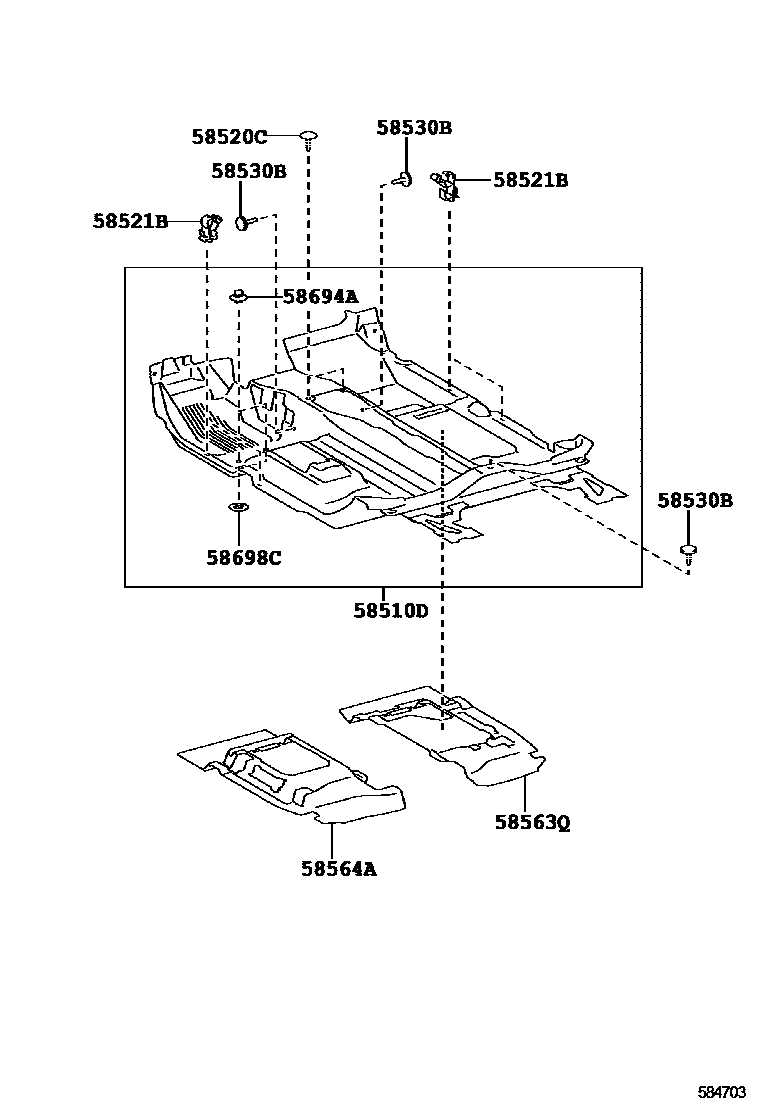

MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-74220-B1iKPJ10201209-201212

DK. GREY,TRIM2#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-B0×2iKPJ10201209-201212

LT.GRAY

58521BHOOK, FLOOR CARPET

main58521-12140×4iKPJ10201209

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-B7×3iKPJ10201209-201212

DK.GRAY,TRIM2#

58563QSILENCER, FRONT FLOOR, NO.3

main58563-74070iKPJ10201209

sub58563-74071

58564ASILENCER, FRONT FLOOR, NO.4

main58564-74110iKPJ10201209

sub58564-74111

58694APLATE, MAT SET, UPPER

main58694-76010×2iKPJ10201209

58698CPLATE, MAT SET, LOWER

main58698-76010×2iKPJ10201209

8 parts on this diagram · 1 diagram in section
