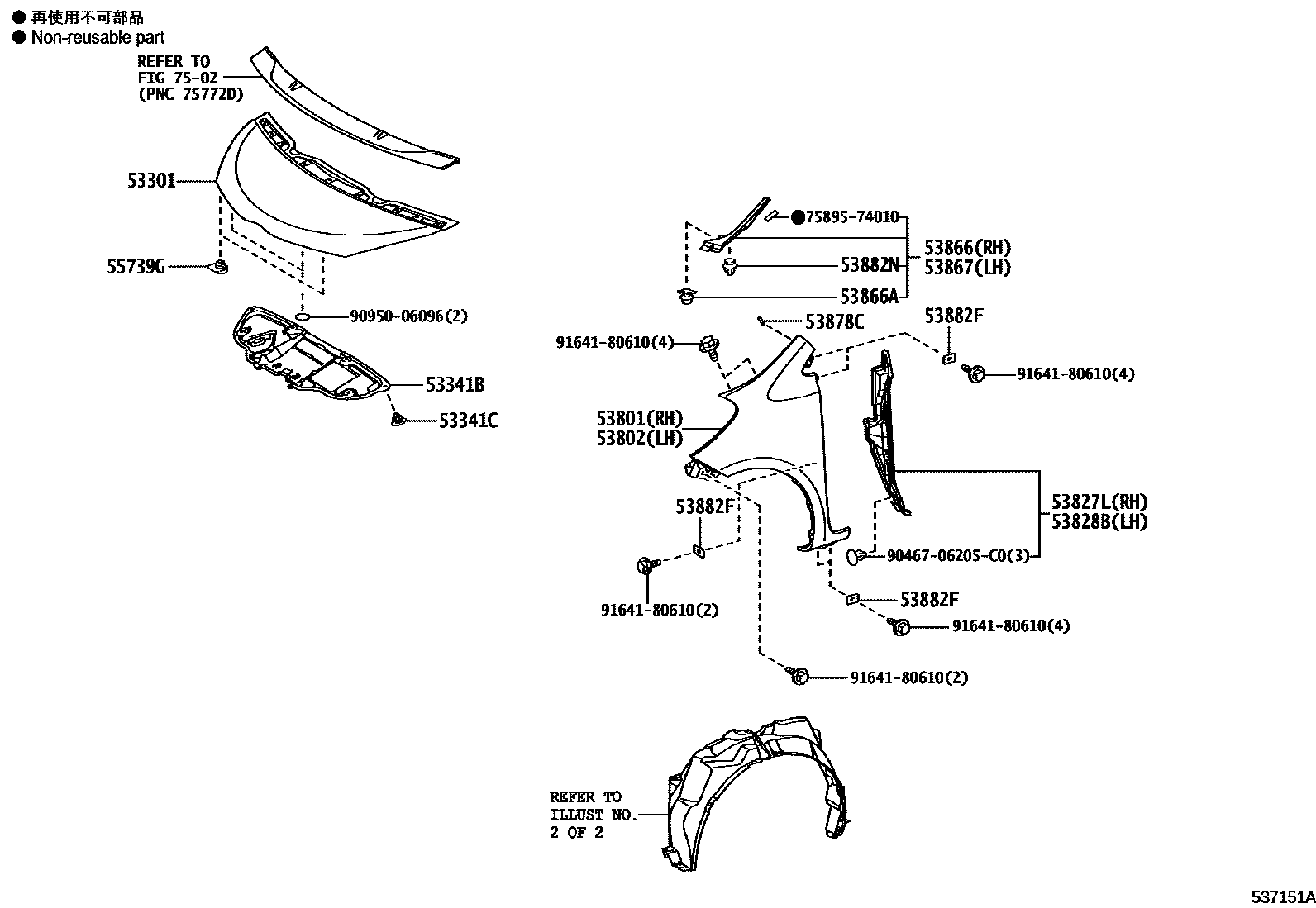

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-74010iKPJ10¥32,100201209-201212

sub53301-74020¥32,100

53341BINSULATOR, HOOD

main53341-74011iKPJ10¥4,250201209

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iKPJ10¥120201209

53801FENDER SUB-ASSY, FRONT RH

main53801-74010iKPJ10¥28,300201209-201212

53802FENDER SUB-ASSY, FRONT LH

main53802-74010iKPJ10¥28,300201209-201212

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-74010iKPJ10¥3,480201209

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-74010iKPJ10¥3,490201209

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-74010iKPJ10¥1,650201209

53866ACLIP(FOR FRONT FENDER TO COWL SIDE SEAL)

main55799-74010iKPJ10¥100201209

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-74010iKPJ10¥1,650201209

53878CSPACER, FRONT FENDER

main53878-74020iKPJ10¥350201209

53882FSEAL, FRONT FENDER

main53882-16030iKPJ10¥60201209

53882NCLIP(FOR FRONT FENDER SEAL)

main55799-74020iKPJ10¥70201209

55739GSTOPPER, HOOD

main55738-52060iKPJ10¥390201209

7502

7589574010RETAINER, LUGGAGE DOOR MOULDING, NO.3

main75895-74010¥360

9046706205C0

main90467-06205C0

9095006096

main90950-06096¥100

9164180610

main91641-80610¥110

19 parts on this diagram · 2 diagrams in section
