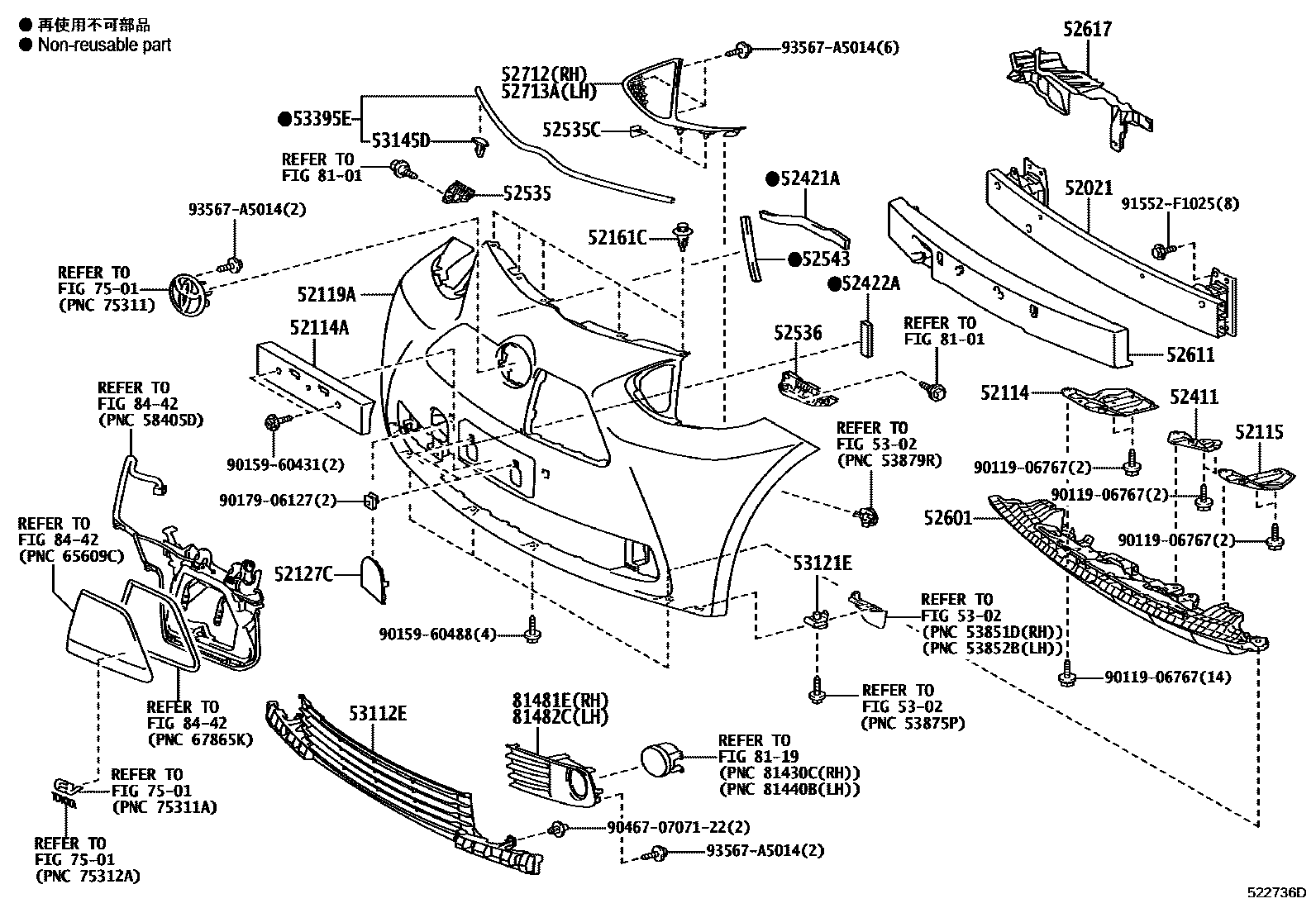

FRONT BUMPER & BUMPER STAY

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-74030iKPJ10201209-201211

sub52021-74031

52114GUARD, BUMPER, FRONT RH

main52907-74010iKPJ10201209

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-74020iKPJ10201209

52115GUARD, BUMPER, FRONT LH

main52908-74010iKPJ10201209

52119ACOVER, FRONT BUMPER

main52119-74903iKPJ10201209-201212

PAINT REQ.

52127CCOVER, FRONT BUMPER HOLE

main52127-74905iKPJ10201209-201212

52161CPIECE, FRONT BUMPER

main52161-16010×5iKPJ10201209

sub52161-0K040

52411GUARD, FRONT BUMPER

main52401-74010iKPJ10201209-201212

52421APAD, FRONT BUMPER

main52421-74030iKPJ10201209

52422APAD, FRONT BUMPER, RH

main52422-74030iKPJ10201209

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-74011iKPJ10201209

52535CRETAINER, FRONT BUMPER SIDE

main52535-28020×4iKPJ10201209

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-74011iKPJ10201209

52543SEAL, FRONT BUMPER SIDE, RH

main52543-74030iKPJ10201209

52601ABSORBER SUB-ASSY, FRONT BUMPER ENERGY

main52601-74011iKPJ10201209

52611ABSORBER, FRONT BUMPER ENERGY

main52611-74030iKPJ10201209

52617ABSORBER, RADIATOR SUPPORT, UPPER

main52617-74030iKPJ10201209

52712MOULDING, FRONT BUMPER SIDE, RH

main52712-74020iKPJ10201209

52713AMOULDING, FRONT BUMPER SIDE, LH

main52713-74020iKPJ10201209

5302

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-74030iKPJ10201209

NO PAINT REQ.

53121ECLIP(FOR FRONT BUMPER), NO.1

main90467-05114×2iKPJ10201209-201212

53145DCLIP, RADIATOR GRILLE

main53145-60030×2iKPJ10201209

53395ESEAL, HOOD TO FRONT END PANEL

main53395-74010iKPJ10201209

7501

8101

8119

81481ECOVER, FOG LAMP, RH

main81481-74060iKPJ10201209

81482CCOVER, FOG LAMP, LH

main81482-74060iKPJ10201209

8442

9011906767

main90119-06767

9015960431

main90159-60431

9015960488

main90159-60488

9017906127

main90179-06127

904670707122

main90467-0707122

91552F1025

main91552-F1025

93567A5014

main93567-A5014

37 parts on this diagram · 1 diagram in section
