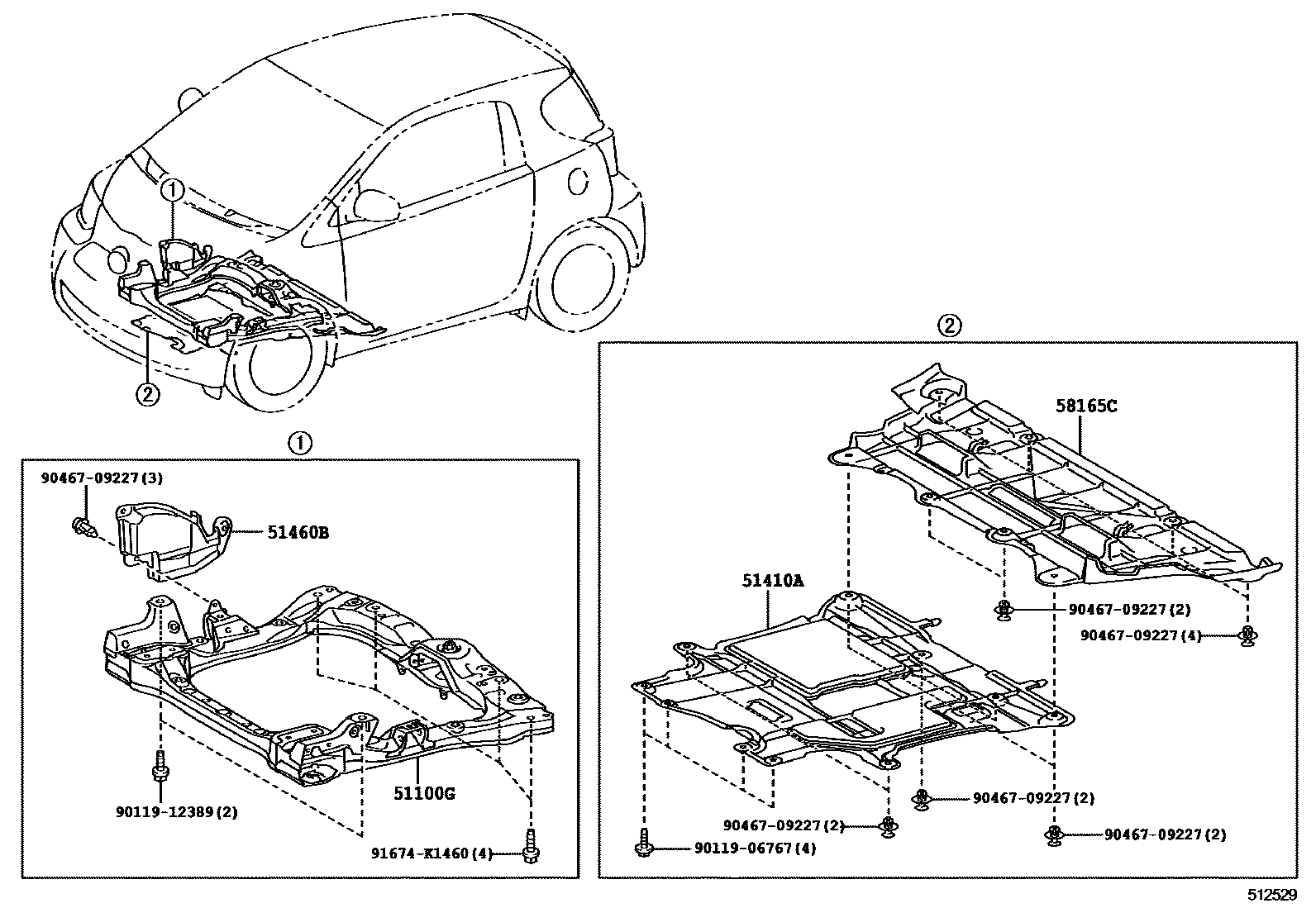

SUSPENSION CROSSMEMBER & UNDER COVER

51100GFRAME ASSY, FRONT

main51100-74021iKPJ10201209-201210

main51100-74022iKPJ10201211

51410ACOVER ASSY, MOTOR UNDER, NO.1

main51410-74020iKPJ10201209

51460BCOVER ASSY, MOTOR SIDE UNDER, REAR RH

main51460-74010iKPJ10201209-201212

58165CCOVER, FRONT FLOOR, RH

main58165-74020iKPJ10201209

9011906767

main90119-06767

9011912389

main90119-12389

9046709227

main90467-09227

91674K1460

main91674-K1460

8 parts on this diagram · 1 diagram in section
