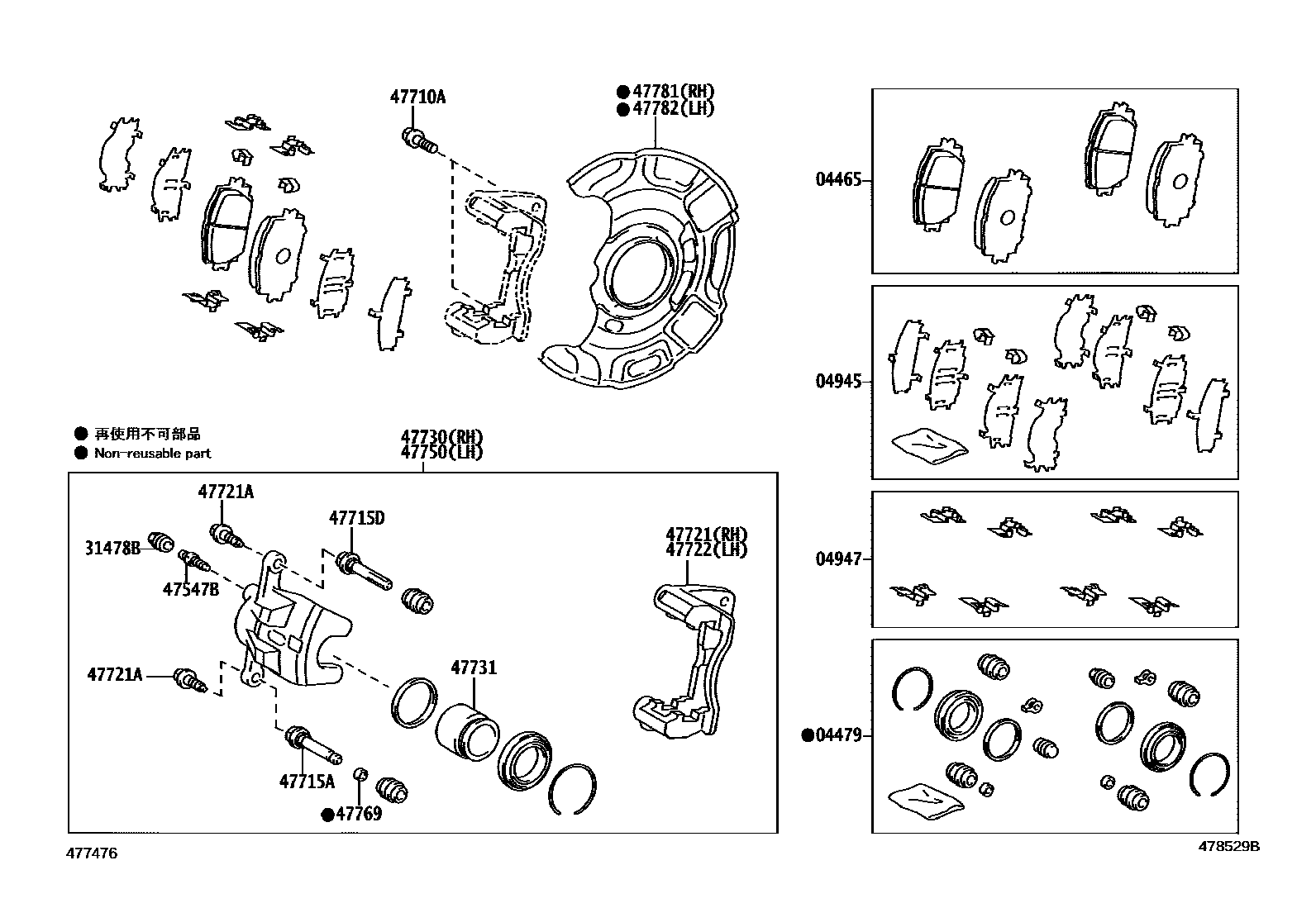

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-74040iKPJ10201209-201212

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-52070iKPJ10¥1,800201209

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-47020iKPJ10¥1,850201209

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050iKPJ10¥2,080201209

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iKPJ10¥160201209

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iKPJ10¥200201209

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iKPJ10¥160201209-201212

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-12A10iKPJ10¥360201209

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-52190iKPJ10¥360201209

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-52191iKPJ10¥4,130201209

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iKPJ10¥90201209

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-52191iKPJ10¥4,130201209

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-52280iKPJ10¥36,900201209

47731PISTON, FRONT DISC BRAKE

main47731-52280iKPJ10¥900201209

sub47731-52281¥670

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-52280iKPJ10¥36,900201209

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iKPJ10¥50201209

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-74020iKPJ10¥1,680201209-201212

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-74020iKPJ10¥1,680201209-201212

18 parts on this diagram · 1 diagram in section
