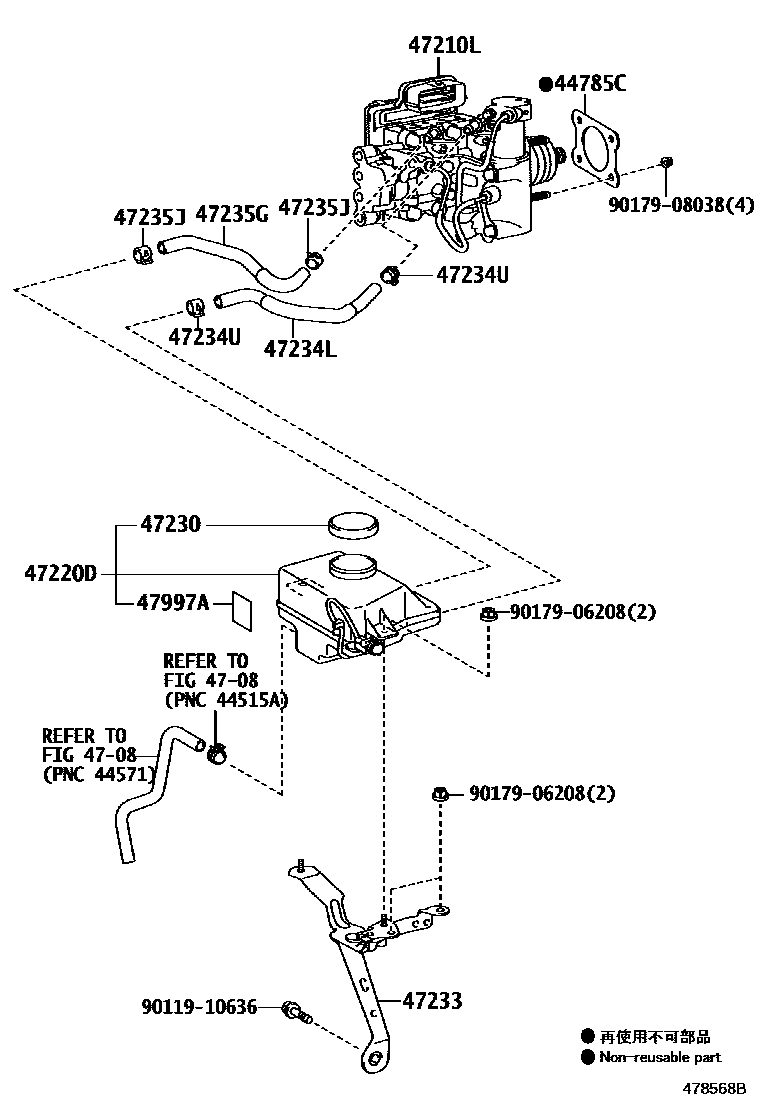

BRAKE MASTER CYLINDER

44785CGASKET, BRAKE BOOSTER

main44785-12040iKPJ10201209-201212

4708

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-74010iKPJ10201209-201212

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-74060iKPJ10201209-201212

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-58010iKPJ10201209

sub47230-11010

47233BRACKET, RESERVOIR

main47233-74010iKPJ10201209

47234LHOSE, RESERVOIR, NO.1

main47234-74010iKPJ10201209

47234UCLIP(FOR RESERVOIR HOSE NO.1)

main96137-41501iKPJ10201209

47235GHOSE, RESERVOIR, NO.2

main47235-74010iKPJ10201209

47235JCLIP(FOR RESERVOIR HOSE NO.2)

main96137-41501iKPJ10201209

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010iKPJ10201209

9011910636

main90119-10636

9017906208

main90179-06208

9017908038

main90179-08038

14 parts on this diagram · 1 diagram in section
