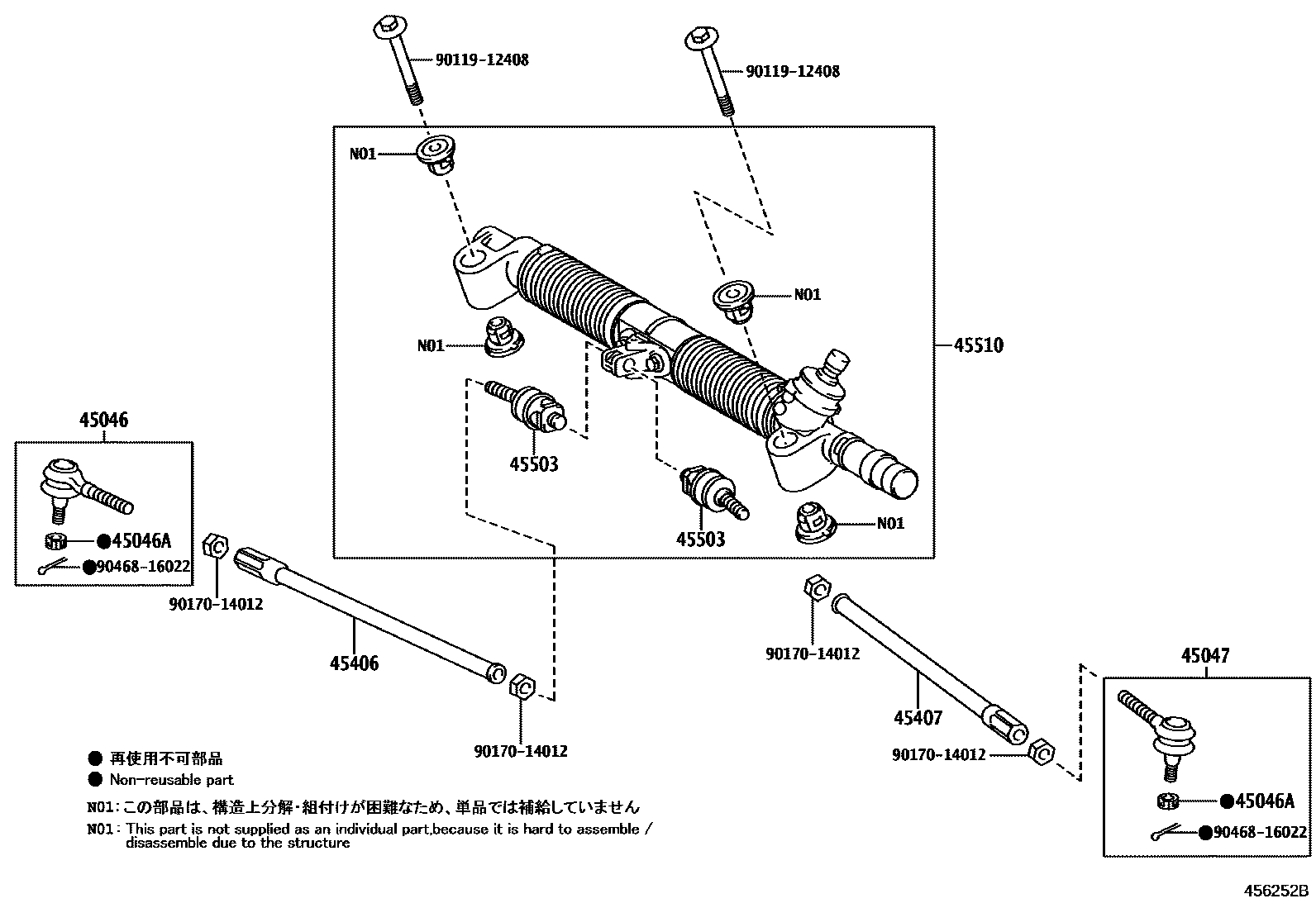

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-79025iKPJ10201209

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002iKPJ10201209

45047END SUB-ASSY, TIE ROD, LH

main45046-79025iKPJ10201209

45406ROD SUB-ASSY, TIE, RH

main45406-74011iKPJ10201209

45407ROD SUB-ASSY, TIE, LH

main45406-74011iKPJ10201209

45503END SUB-ASSY, STEERING RACK

main45503-74010iKPJ10201209

45510GEAR ASSY, STEERING

main45510-74060iKPJ10201209

9011912408

main90119-12408

9017014012

main90170-14012

9046816022

main90468-16022

10 parts on this diagram · 1 diagram in section
