FRONT DRIVE SHAFT

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-74030iKPJ10201209

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04438-74030iKPJ10201209

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12060iKPJ10201209

41336ECOVER, FRONT DRIVE SHAFT DUST, LH

main41336-12060iKPJ10201209

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-74040iKPJ10201209-201212

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-74040iKPJ10201209-201212

43410SHAFT ASSY, FRONT DRIVE, RH

main43420-74070iKPJ10201209-201212

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35067iKPJ10201209-201212

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-74040iKPJ10201209

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-13010iKPJ10201209

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-13010iKPJ10201209

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-74070iKPJ10201209-201212

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main43425-74040iKPJ10201209

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-35054iKPJ10201209-201212

sub90311-35068

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-74150iKPJ10201209

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-74140iKPJ10201209

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-74150iKPJ10201209

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-74140iKPJ10201209

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-74130iKPJ10201209

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-74120iKPJ10201209

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-74130iKPJ10201209

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-74120iKPJ10201209

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-79125iKPJ10201209-201212

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43470-79125iKPJ10201209-201212

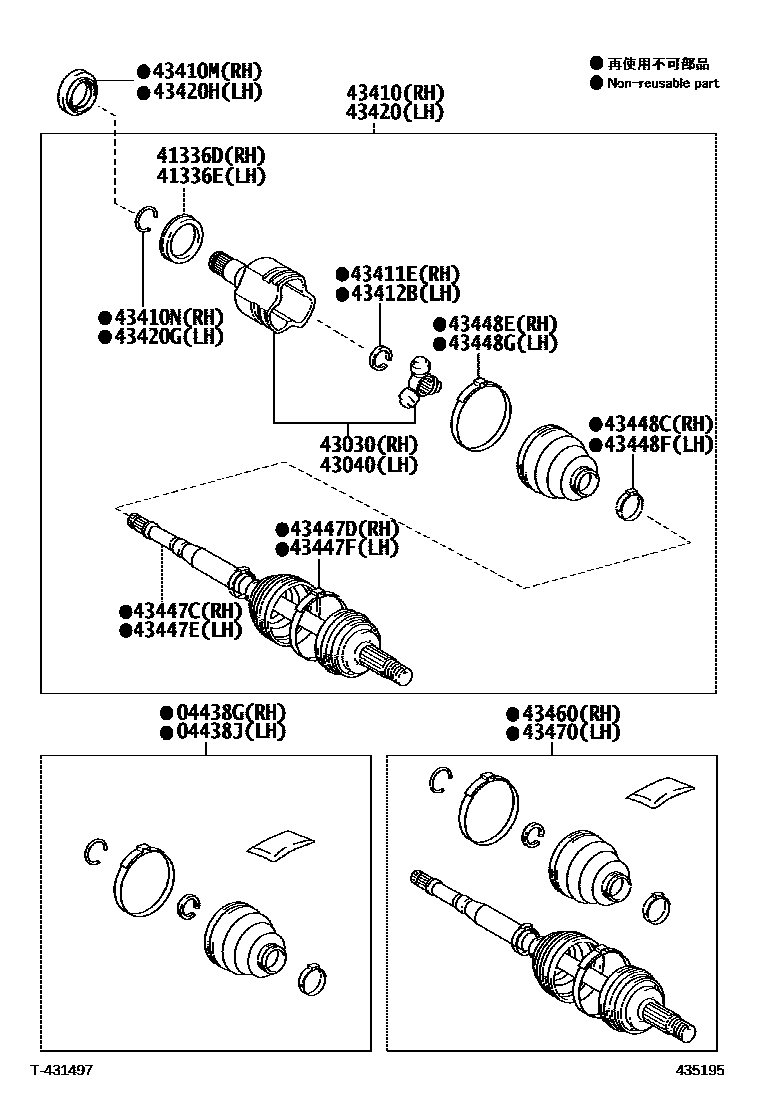

24 parts on this diagram · 1 diagram in section
