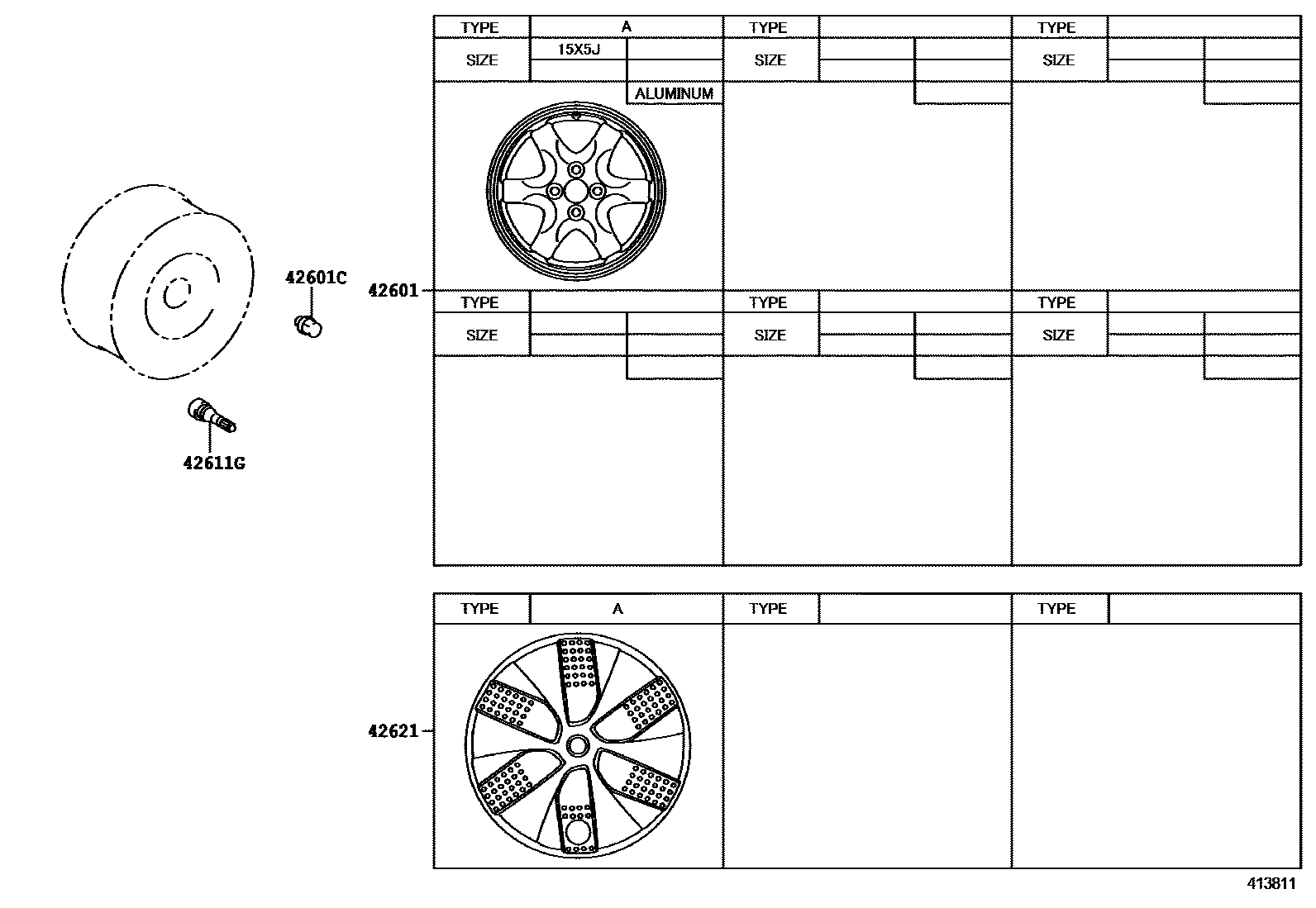

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-74090×4iKPJ10201209

15X5J, #,TYPE A:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033×16iKPJ10201209

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iKPJ10201209

42621CAP, WHEEL

main42602-74020×4iKPJ10201209

TYPE A:REFER ILLUST.

4 parts on this diagram · 1 diagram in section
