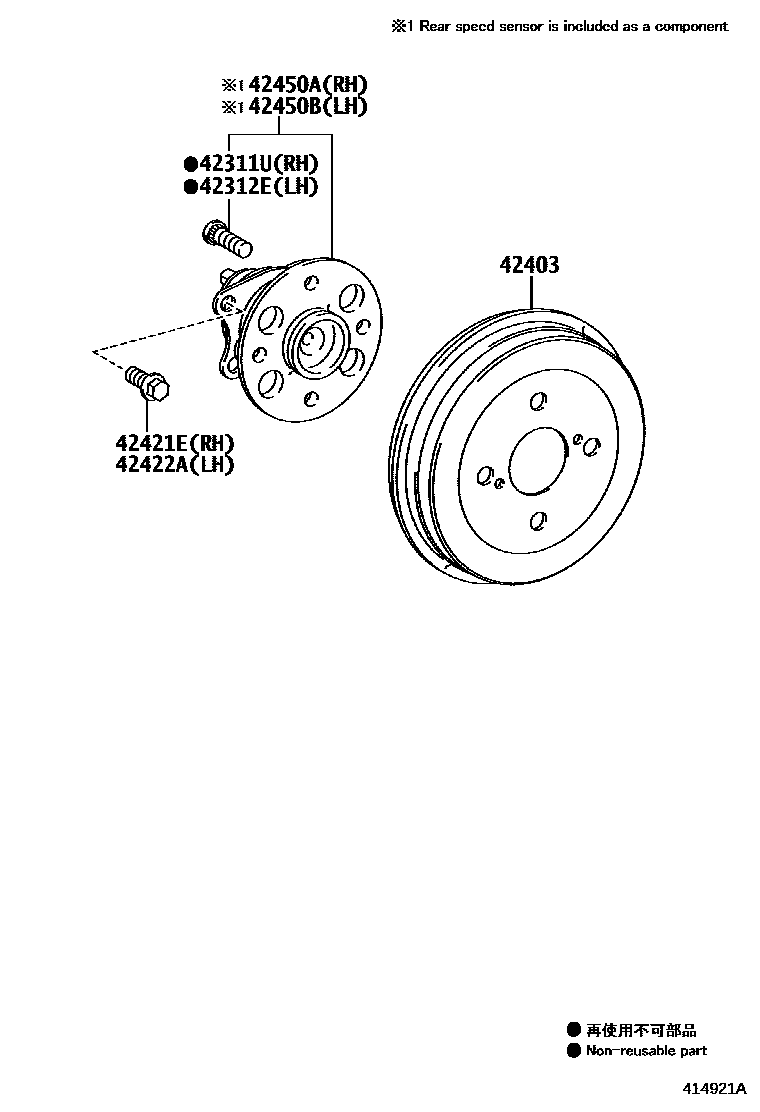

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iKPJ10¥240201209

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iKPJ10¥240201209

42403DRUM SUB-ASSY, REAR BRAKE

main42431-52090iKPJ10¥7,800201209

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350iKPJ10¥160201209

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350iKPJ10¥160201209

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-74020iKPJ10¥28,800201209

sub42450-52060¥28,700

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-74020iKPJ10¥28,800201209

sub42450-52060¥28,700

7 parts on this diagram · 1 diagram in section
