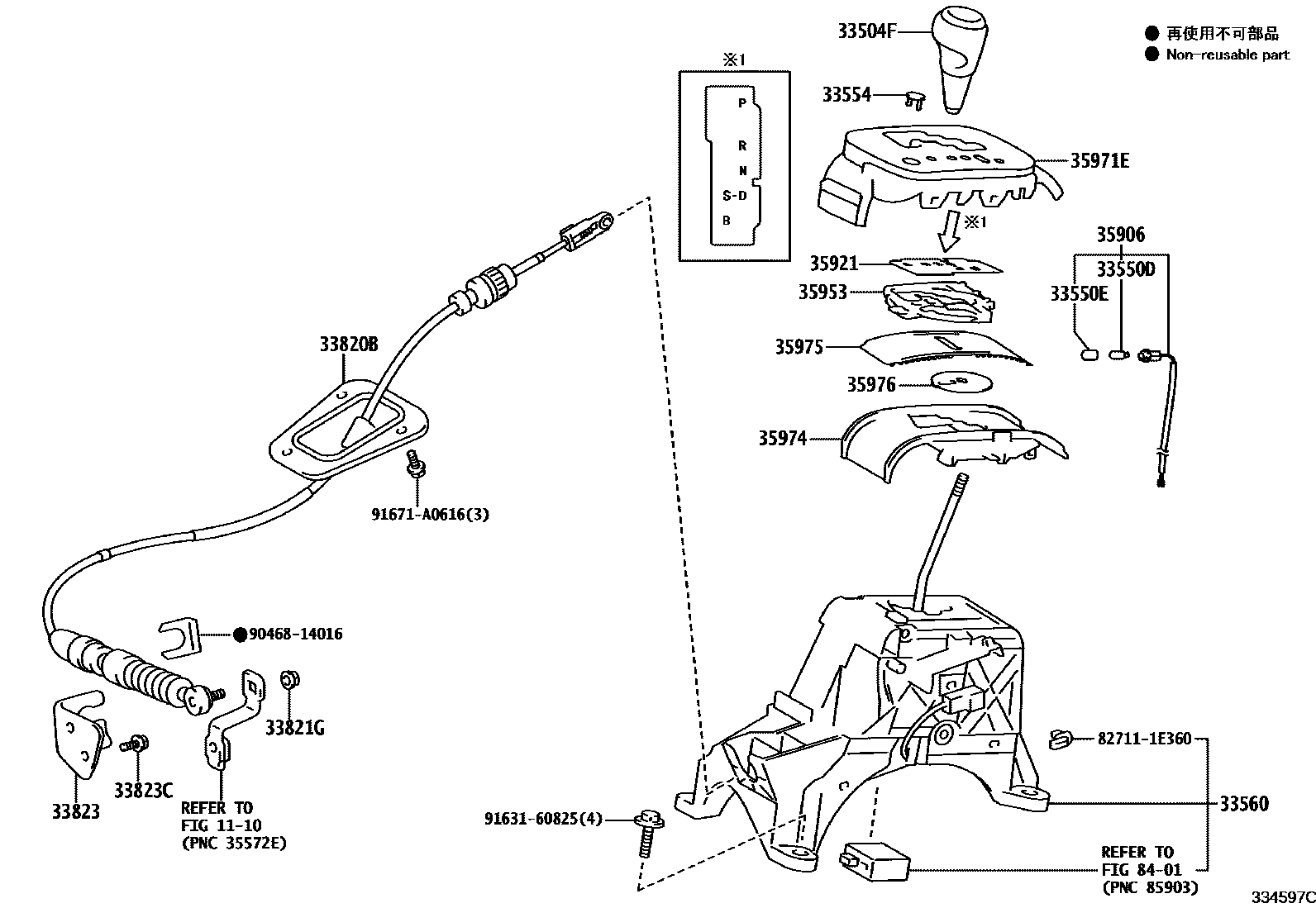

SHIFT LEVER & RETAINER

1110

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-52330-C0iKPJ10201209-201212

BLACK,TRIM2#

33550DBULB, POSITION INDICATOR LAMP

main35955-74010iKPJ10201209

12V 1.4W

33550ECAP, POSITION INDICATOR LAMP

main35956-52020iKPJ10201209

33554CAP, SHIFT LEVER

main33554-74010iKPJ10201209

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-74090iKPJ10201209

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-74050iKPJ10201209

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90179-08040iKPJ10201209

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-74020iKPJ10201209

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079×2iKPJ10201209

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-74040iKPJ10201209

35921PLATE, CONTROL POSITION INDICATOR

main35921-74060iKPJ10201209

35953GUIDE, POSITION INDICATOR LIGHT

main35953-74040iKPJ10201209

35971EHOUSING, POSITION INDICATOR

main35971-74070-C1iKPJ10201209-201212

BLACK,TRIM2#

35974HOUSING, POSITION INDICATOR, LOWER

main35974-74020iKPJ10201209

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-74010iKPJ10201209

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-74010iKPJ10201209

8401

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9046814016

main90468-14016

9163160825

main91631-60825

91671A0616

main91671-A0616

22 parts on this diagram · 1 diagram in section
