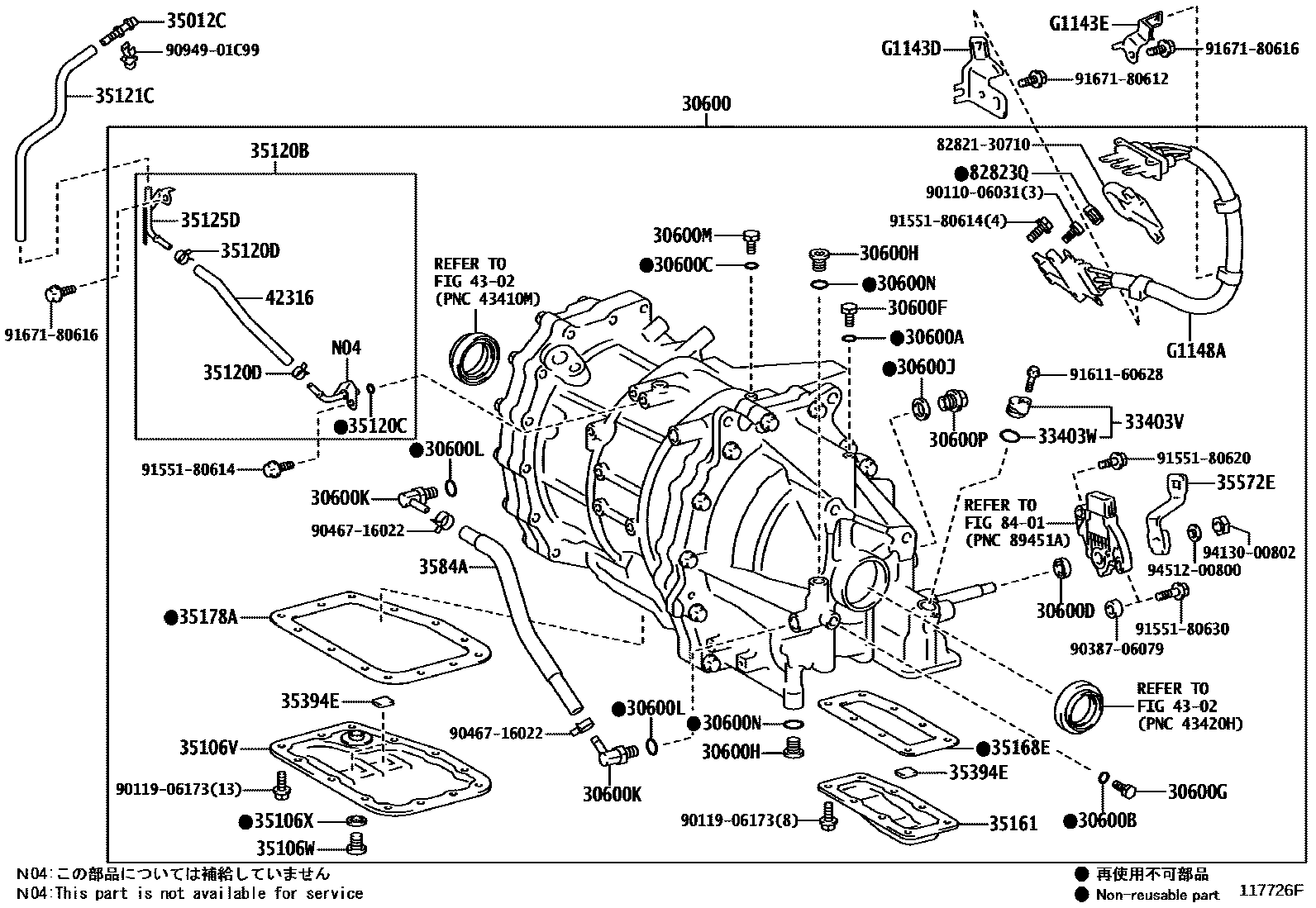

BEV MOTOR
30600TRANSAXLE ASSY, EV W/MOTOR
30600AO RING, TRANSAXLE CASE, NO.1
30600BO RING, TRANSAXLE OIL PUMP
30600CO RING, TRANSAXLE CASE, NO.2
30600DOIL SEAL, TRANSAXLE PARKING BRAKE, TYPE T
30600FPLUG, TRANSAXLE CASE, NO.1
30600GPLUG, TRANSAXLE OIL PUMP
30600HPLUG, TRANSAXLE CASE, NO.3
30600JGASKET, TRANSAXLE CASE
30600KELBOW, TRANSAXLE CASE
30600LO RING, TRANSAXLE CASE ELBOW
30600MPLUG, TRANSAXLE CASE, NO.2
30600NO RING, TRANSAXLE CASE, NO.3
30600PPLUG, TRANSAXLE CASE, NO.4
33403VCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403WRING, O (FOR EV SPEEDOMETER DRIVEN HOLE COVER)
35012CPLUG SUB-ASSY, BREATHER
35106VPAN SUB-ASSY, EV MOTOR OIL
35106WPLUG, EV MOTOR OIL PAN DRAIN
35106XGASKET, EV MOTOR OIL PAN DRAIN
35120BBREATHER ASSY, TRANSMISSION
35120CO RING, TRANSMISSION BREATHER
35120DCLIP, HOSE
35121CHOSE, TRANSMISSION BREATHER
35125DTUBE, TRANSMISSION BREATHER, NO.2
35161PAN, TRANSAXLE OIL
35168EGASKET, TRANSMISSION OIL PAN
35178AGASKET, EV MOTOR OIL PAN
35394EMAGNET, OIL CLEANER
35572ELEVER, TRANSMISSION CONTROL SHAFT
3584AHOSE, TRANSAXLE LUBE APPLY
42316HOSE, AXLE BREATHER
4302
82823QCAP, TERMINAL
8401
G1143DBRACKET, MOTOR CABLE, NO.1
G1143EBRACKET, MOTOR CABLE, NO.2
G1148ACABLE, MOTOR
8282130710RETAINER, HEADLAMP HARNESS
main82821-30710
9011006031
main90110-06031
9011906173
main90119-06173
9038706079
main90387-06079
9046716022
main90467-16022
9094901C99
main90949-01C99
9155180614
main91551-80614
9155180620
main91551-80620
9155180630
main91551-80630
9161160628
main91611-60628
9167180612
main91671-80612
9167180616
main91671-80616
9413000802
main94130-00802
9451200800
main94512-00800
52 parts on this diagram · 2 diagrams in section
